Pure Drink / Drinking / Drinkable Water Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | FP-2000S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 35-40 days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Bottle Volume: | 100-2000ml | Weight: | 13000kg |
|---|---|---|---|
| Output: | 2000-2500BPH | Cavitiy: | 2 Cavities |
| Application: | PET Bottle | Automatic: | Yes |
| Blow Moulding Type: | Stretch Blow Moulding | Voltage: | 380V/220V 3 Phase 50HZ / 60HZ / Customized |
| Warranty: | 1 Year | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| Highlight: | Bottle Injection Machine,Bottle Making Machine |
||
Product Description

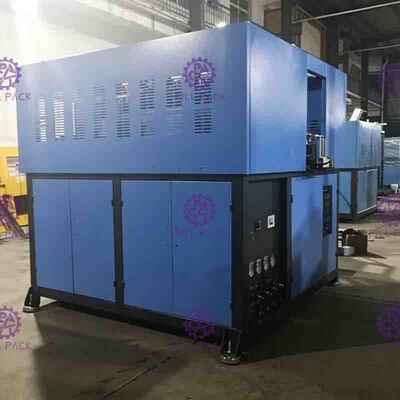

Servo automatic 2 Cavity PET bottle blow molding machine
>>> Product Introduction:
FP-2000S servo automatic 2 Cavity PET bottle blow molding machine is suitable for blowing PET bottles of various shapes, volume from 100ml to 2000ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.etc.
>>> Product Features:
1. Produce bottle from 0.1L to 2L (2cavity)
2. Output capacity up to 2500BPH for 0.5L bottles using two-cavity blow mould
3. Advanced PLC control system with a user-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater

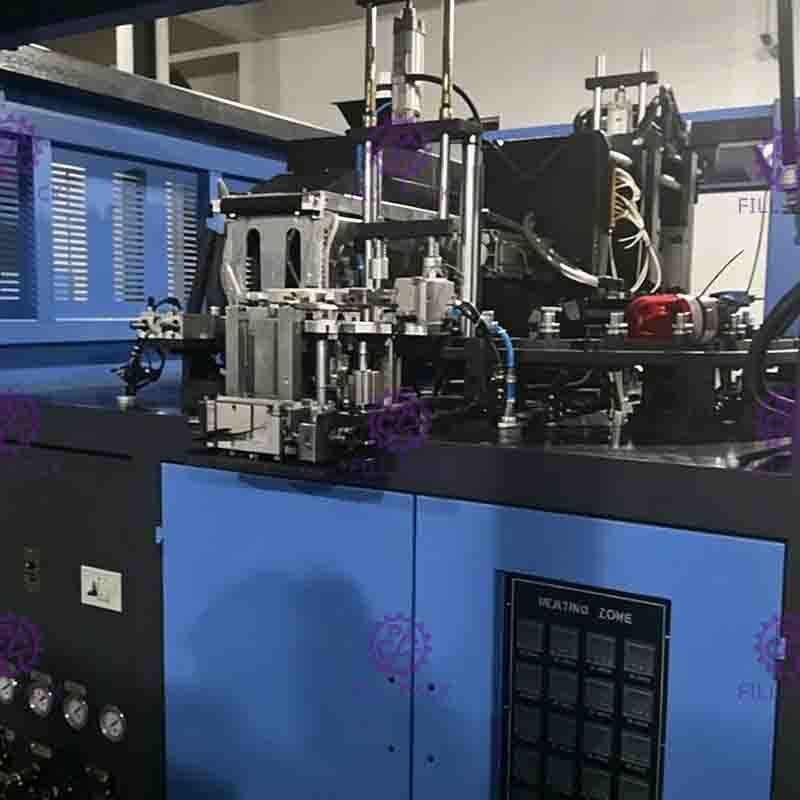

6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10. Waste rate of finished bottle is less than 0.2%
1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
>>>Technical Paramters:
|
Model
|
FP-2000S
|
|
|
Container
|
Production material
|
PET
|
|
Volume
|
0.1-2L
|
|
|
Theoretical output
|
2000-2500PCS/H(6L)
|
|
|
Applicable bottle body diameter
|
20-92mm
|
|
|
Applicable bottle height
|
50-350mm
|
|
|
Moulding
|
Max.mould plate Dimension
|
450x490mm
|
|
Max. mould thickness
|
180mm
|
|
|
Machine size and weight
|
Main machine(L*W*H)
|
2500*1650*1850mm
|
|
Main machine weight
|
3200kg
|
|
|
Preform unscrambler (L*W*H)
|
2000*950*2480mm
|
|
|
Heater weight
|
250kg
|
|
|
Install Power-Using power
|
18kw
|
|
|
N/M
|
item name
|
BRAND
|
ORIGINAL PLACE
|
|
1
|
PLC controller
|
DELTA
|
Taiwan
|
|
2
|
TOUCH SCREEN
|
DELTA
|
TAIWAN
|
|
3
|
Pneumatic components
|
FESTO
|
GERMANY
|
|
4
|
Pneumatic components
|
AIRTAC
|
TAIWAN
|
|
5
|
Photoelectric signal switching
|
OMRON
|
JAPAN
|
|
6
|
control button
|
OMRON
|
JAPAN
|
|
7
|
AIR FILTER
|
DELTA
|
TAIWAN
|
|
8
|
Electromagnetic valve
|
PMC
|
KOREA
|
|
9
|
High pressure muffler silencer
|
SMC
|
JAPAN
|
