PET Plastic Bottle Blowing Mold Machine 8000BPH 6 Cavities Automatic For Drinking

PET Plastic Bottle Blowing Mold Machine 8000BPH 6 Cavities Automatic For Drinking

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FILLPACK
Certification: CE/ISO9001
Model Number: EX9000

Payment & Shipping Terms:

Minimum Order Quantity: 1 SETS
Price: 51,800USD
Packaging Details: Wooden Case Packing
Delivery Time: 15-20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Cavity: 6 Capacity: 8000-9000BPH
Bottle Mouth Maximum Overall Diameter: 28-38mm Bottle Biggest Diameter: 65mm
Bottle Maximum Height: 350mm All Electric Machine Installation: 75KW
Work Pressure: 7-9kg/cm2 Low-pressure Gas Consumption: 1000L/min
Higher -pressure Gas Consumption: 3000Ltr/min Machine Size: 4.15x1.85x2.13m
High Light:

PET Plastic Bottle Blowing Mold Machine

,

Plastic Bottle Blowing Mold Machine 8000BPH

,

6 Cavities Bottle Blowing Mold Machine

Product Description

8000BPH 6 Cavities Automatic PET Plastic Bottle Blow Molding Machine For Drinking Water Bottling Plant With Servo Device



EX9000 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. This EX9000 bottle blowing machine uses aluminum mold. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics and wide-mouth bottle etc. This bottle blowing machine stretches the preform by controlling the stretching rod by servo motor. The advantage is that it can be stretched in sections, firstly position the preform,ensure the verticality of the preform when stretching then secondary stretching.Ensure uniformity and consistency of stretch of each preform. At the same time, the blower is faster and less energy consumed.



Features of main body:
1). Stable performance with advanced PLC.

2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity in variable.
5). High safeties with security automatic-locking device in each mechanica laction, whichwill make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to install,test and start up.
14). Low rejection rate: less than 0.2 percent.



Technique Parameter of PET manufacturing system:
Model EX9000
Bottle type specification
Cavity
6
Max.volume
1L
Bottle mouth maximum overall diameter
28-38mm
Bottle biggest diameter
65mm
Bottle maximum height
350mm
Production specification
Theoretical output
8000-9000BPH
Bottle type capacity
500ML
Bottle type weight
17g
Bottle type
circular
Power specification
Light tube quantity
48pcs
Light tube power
2KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
40%--70%
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Forzen water flow
138L/min
Machine specification
Machine size
4.15x1.85x2.13
Machine weight
4.5ton



Details:

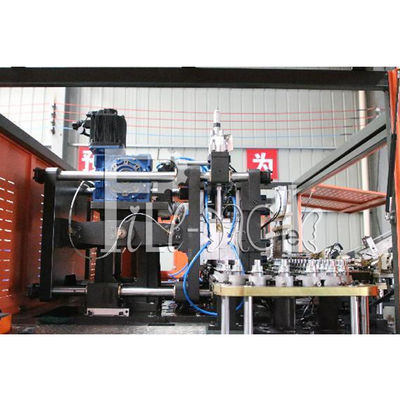

PET Plastic Bottle Blowing Mold Machine 8000BPH 6 Cavities Automatic For Drinking 0

PET Plastic Bottle Blowing Mold Machine 8000BPH 6 Cavities Automatic For Drinking 1

PET Plastic Bottle Blowing Mold Machine 8000BPH 6 Cavities Automatic For Drinking 2

PET Plastic Bottle Blowing Mold Machine 8000BPH 6 Cavities Automatic For Drinking 3
