    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: DCGF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-50000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Dimension(L*W*H): 2600*1965*2250 Mm Weight: 3500KG
    Power: 5.2KW Packaging Type: PET Plastic Bottle
    Capacity: 3000-5000bph Voltage: 380V/220V 50HZ

    Description of DCGF18-18-6 Plastic Bottle Filling machine

    Cap feeder
    The cover is conveyed to the cover manager through the upper cover device, and the back cover of the cover enters the cover channel through the reverse cover recovery device in an open upward position. When the cover opens downward, the cover enters the cover manager through the reverse cover recovery device and returns to the cover manager, thus ensuring that the cover from the cover manager passes through the cover channel in the correct position. Enter the lid disinfector and disinfect the inside of the lid.

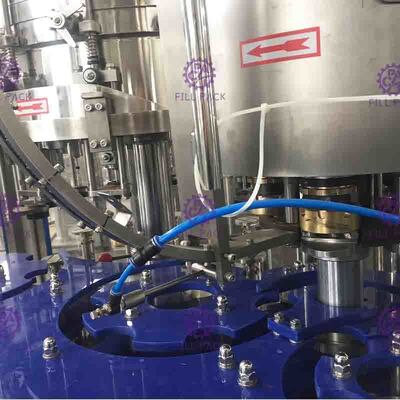

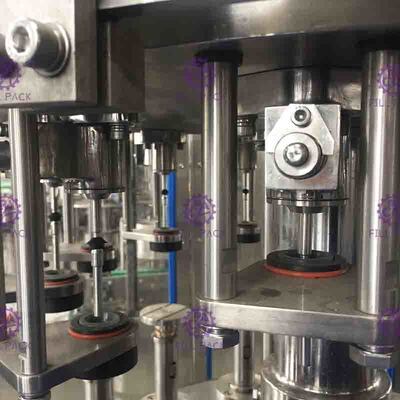

    Bottle capping
    1)  The expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
    2)  The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.
    3)  A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
    4)  A bottle inlet detect switch is settled on the screwing capper.
    5)  By adjusting the height of the rotary parts to adapt for different bottle height.
    6)  The main parts of the screwing capper are processed by the digital-control processing center
    PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottle Filling Machine / Equipment  / Plant / Syst

    PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottle Filling Machine / Equipment  / Plant / Syst

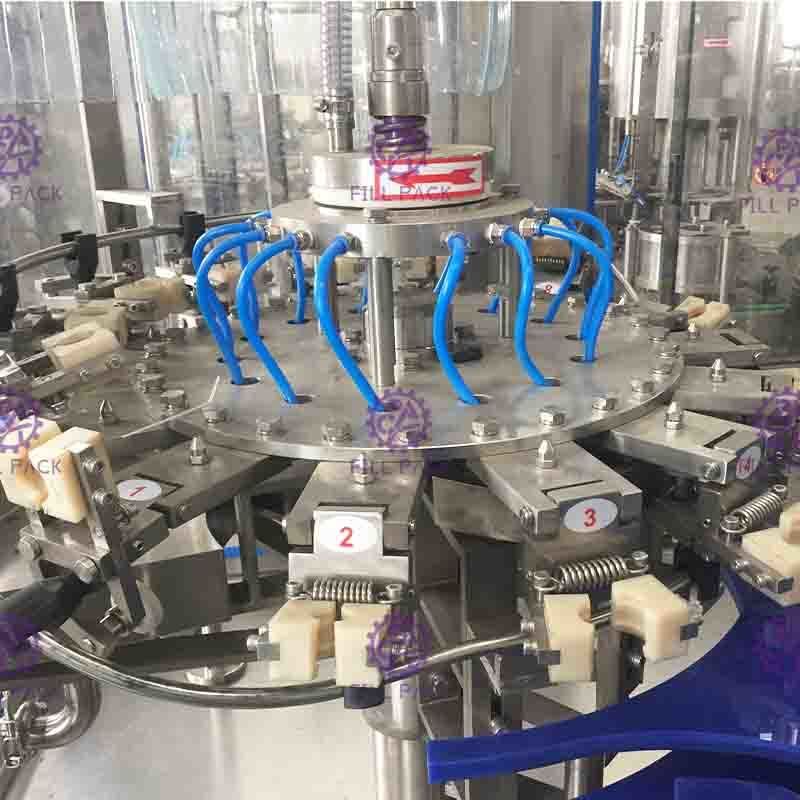

    Bottle Washing

    1)  The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    2)  The rinser is driven by driving system positioned inside machine frame via gear transmission.
    3)  Rinser using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the side wall and bottom to make the bottle clean.

    Teachnical parameters of DCGF18-18-6
    Filling precision
    ≤+/-1mm(liquid level)
    Filling pressure
    ≤0.4MPa
    PET bottle specification
    (Bottle diameter)50-115mm (Height)160-320mm
    Suitable cap shape
    Plastic or other material screw cap
    Filling temperature
    0℃—5℃

    Our family of plastic bottle carbonated filling machine
    There's always one suitable for you
    Model
    Rinsing filling capping heads
    Capacity(BPH)
    Power(kw)
    Weight(Kg)
    Dimension(mm)
    DCGF12-12-4
    12/12/4
    2000-3000
    4.4
    2500
    2250*1650*2250
    DCGF18-18-6
    18/18/6
    3000-5000
    5.2
    3500
    2600*1965*2250
    DCGF24-24-8
    24/24/8
    5000-7000
    6.2
    4500
    2980*2200*2250
    DCGF32-32-10
    32/32/10
    7000-10000
    6.2
    6000
    3880*2200*2250
    DCGF40-40-12
    40/40/12
    10000-15000
    7.5
    7200
    4000*2250*2500
    DCGF50-50-15
    50/50/15
    16000-20000
    11
    10000
    5500*2250*2500
    DCGF60-60-15
    60/60/15
    20000-24000
    15
    11500
    6500*5500*2550

    If you need glass bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
