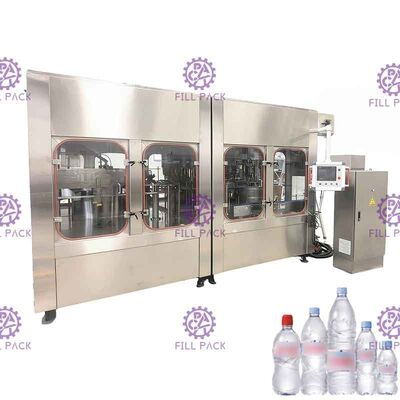

Pure Drinking PET Bottle Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

Pure Drinking PET Bottle Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line
    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line
  • Pure Drinking PET Bottle Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF40-40-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Keywords: Water Filling Machine 40-40-10 Capacity: 20000 Bph
    Key Selling Points: High Productivity Suitable Bottle Size: 0.3-2L PET Bottle
    Application: PET Bottle Water Dimension(L*W*H): 3350*2680*2400 Mm

    Decription of CGF40-40-10 Pure drinking water PET bottle 3 in 1 bottling line for 0-2L bottle

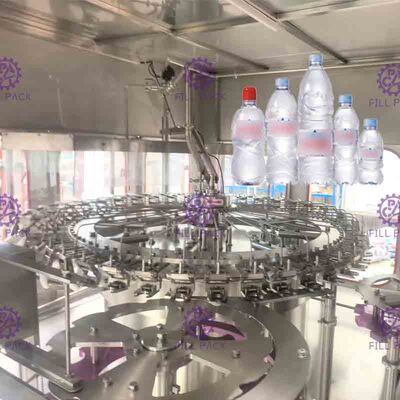

    Bottle Washing.
    1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage.

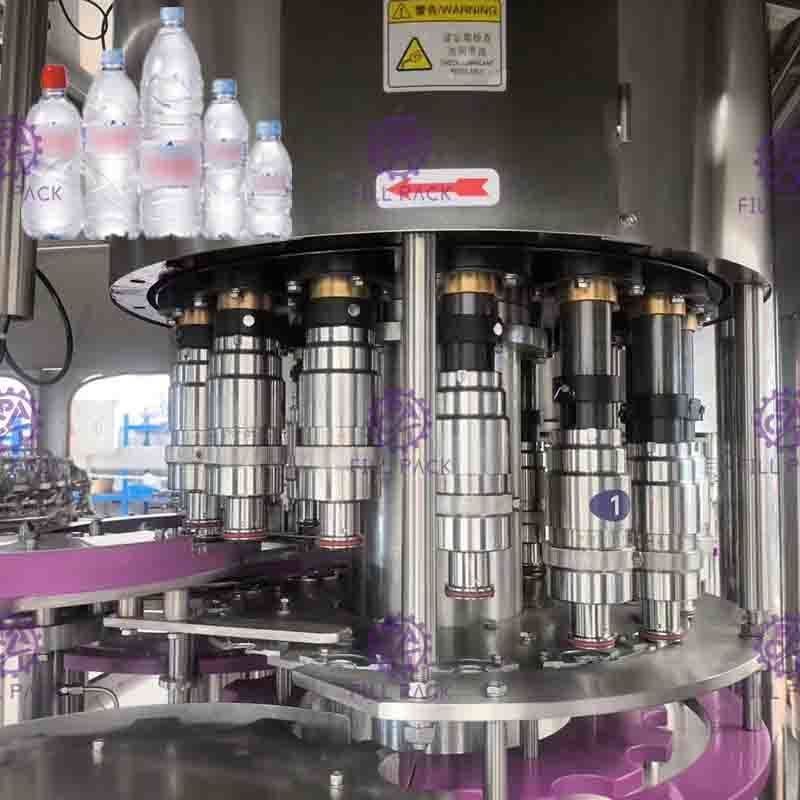

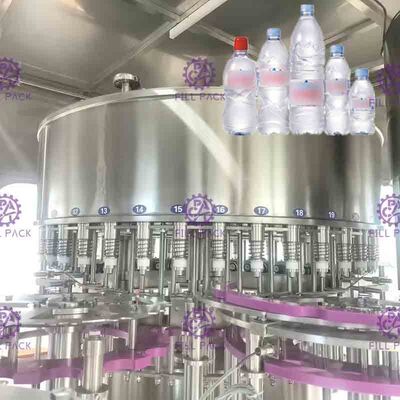

    Filling Parts.
    <1> 304/316 Stainless steel high precision filling nozzle
    <2> Filling volume adjustable in fine rank, same liquid level after filling.



    Bottle Capping.
    <1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
    <2> All 304/316 stainless steel construction


    Parameters
    Model CGF40-40-10
    Capacity(B/H) 20000
    Bottle size Neck :φ50-100mm:Height:150-320mm
    Water pressure 0.18-0.25Mpa
    Water consumption(kg/h) 1000
    Washing station 18
    Loading-Dripping-discharge station 2-2-2
    Filling precision <+1MM
    Air pressure 0.5Mpa
    Air consumption (m³/min) 0.3
    Power(kw) 7
    Weight(kg) 4000
    Dimension(L*W*H)(mm) 3860*3150*2400 mm




    Design Feature
    ★CGF40-40-10 three in a normal pressure filling machine is mainly composed of a transmission part, dial, filling and sealing cap part, part of several parts, transmission system and stepless speed regulating device etc..



    1. conveyor belt part:
    The bottle is sent to the three in one filling machine in the last process. After the filling and sealing of the foil, the bottle is sent to the next process by a speed adjustable conveyor belt. The conveyor chain plate is made of stainless steel.
    2. driving plate part:

    Pure Drinking PET Bottle Water 3 In 1 Monoblock Manufacturing Equipment / Plant / Machine / System / Line

    ★The whole tray assembly is composed of a bottle in, a tray, a plurality of transition dials and a bottle out tray.
    ★The function of the bottle pushing tray is to divide the bottles sent from the air delivery channel into a certain distance.
    ★Dial transition role is played in the bottle to the filling and filling capping to transition between transfer, two dial structure is basically the same, three dial for bottle mouth transmission. Three dials should keep the transmission unobstructed, and can not have the big shake, but causes the bottle mouth material overflow.
    ★In the production process, if the bottle mouth material overflow is serious, the relevant parts should be checked and adjusted immediately. If you need to replace the bottle type with different bottle mouth diameter, you only need to change the dial.



    Electrical apparatus
    Transducer
    Simens-Germany
    Touch screen
    Simens-Germany
    PLC
    Simens-Germany
    Stabilized voltage supply
    MingWei-TaiWan
    Contactor
    Schnider-French
    Approach switch
    Schnider-French
    Air switch
    Schnider-French





    We have 3-in-1 washing-filling-capping machine for 0-2L bottle and 3-10L bottle.
    We also have linear type washing-filling-capping machine for 0-2L bottle and 3-10L bottle.

    The capacity of linear type is not faster than 3-in-1, and it's floor area is slightly larger, but the price is more cheaper than 3-in-1.

    Our Washing-filling-capping machines (3-in-1 and Linear type)
    3in1(0-2L bottle)
    Capacity(bottle per hour)
    3in1(3-10L bottle)
    Capacity
    Linear type
    Capacity
    CGF8-8-3
    2000-3000BPH
    CGF8-8-3B
    0-1000
    CGF4-4-1
    500BPH
    CGF12-12-4
    3000-4000BPH
    CGF12-12-4B
    0-1500
    CGF6-6-1
    750BPH
    CGF18-18-6
    6000-7000BPH
    CGF18-18-6B
    0-2500
    CGF8-8-1
    1000BPH
    CGF24-24-8
    11000-12000BPH
    CGF24-24-8B
    0-3500
    CGF10-10-1
    1500BPH
    CGF32-32-10
    14000-15000BPH
    CGF32-32-10B
    0-5000
    CGF12-12-1
    2000BPH
    CGF40-40-10
    19000-20000BPH




    CGF50-50-12
    23000-24000BPH





    More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
