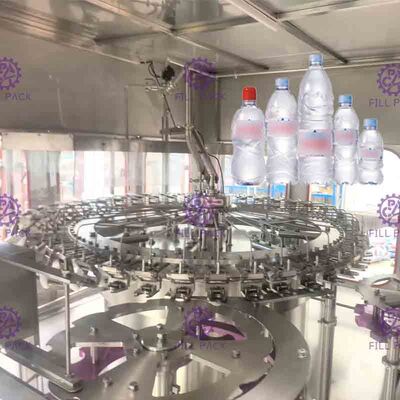

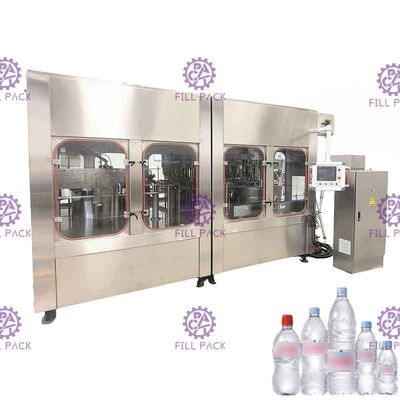

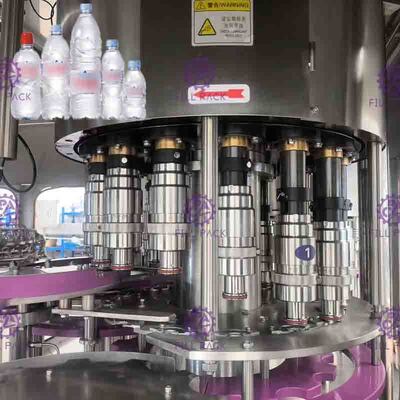

Pure Drinking PET Bottle Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line

Pure Drinking PET Bottle Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line

    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line
    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line
    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line
  • Pure Drinking PET Bottle Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF50-50-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Name: Plastic Bottle 50-50-12 Drinking Water Bottling Plant Votage: 3P 220V/60HZ , 3P 220V 50HZ
    Capacity: 24000 Bph Fuction: Washing Filling Capping 3 In 1
    Suitable Bottle Size: 0.3-2L PET Bottle Automation: Automatic
    Application: PET Bottle Water Dimension(L*W*H): 3350*2680*2400 Mm

    Decription of CGF50-50-12 Pure drinking water PET bottle 3 in 1 bottling line for 0-2L bottle


    Product description:
    This machine integrates washing, filling and capping into one automatic multi-kinetic energy unit, which is suitable for automatic washing, filling and sealing of various weapons drinks, mineral water and purified water.It is the most advanced filling equipment with unique design, novel style, complete functions, strong adaptability, convenient operation, beautiful appearance and high degree of automation.

    Filling Machine Advantage:
    1)The machine is mainly used for PET bottled non-carbonated beverage production line,such as spring water and wine drinks.
    2)Washing,filling and capping are available in one machine.
    3)The contact time between raw materials and the outside world has been reduced to improve the health conditions, production capacity and economic benefits.
    4)The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
    5)Using the advanced PLC(Programmable Logic Controller) technology.
    6)The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.



    Parameters
    Model
    CGF50-50-12
    Capacity(B/H)
    24000
    Bottle size
    Neck :φ50-100mm:Height:150-320mm
    Water pressure
    0.18-0.25Mpa
    Water consumption(kg/h)
    1000
    Washing station
    18
    Loading-Dripping-discharge station
    2-2-2
    Filling precision
    <+1MM
    Air pressure
    0.5Mpa
    Air consumption (m³/min)
    0.3
    Power(kw)
    8
    Weight(kg)
    4000
    Dimension(L*W*H)(mm)
    4550*3500*2400 mm




    Electrical apparatus
    Transducer
    Simens-Germany
    Touch screen
    Simens-Germany
    PLC
    Simens-Germany
    Stabilized voltage supply
    MingWei-TaiWan
    Contactor
    Schnider-French
    Approach switch
    Schnider-French
    Air switch
    Schnider-French



    Pure Drinking PET Bottle Water 3 In 1 Monoblock Filling Equipment / Plant / Machine / System / Line



    We have 3-in-1 washing-filling-capping machine for 0-2L bottle and 3-10L bottle.
    We also have linear type washing-filling-capping machine for 0-2L bottle and 3-10L bottle.
    The capacity of linear type is not faster than 3-in-1, and it's floor area is slightly larger, but the price is more cheaper than 3-in-1.
    Our Washing-filling-capping machines (3-in-1 and Linear type)
    3in1(0-2L bottle)
    Capacity(bottle per hour)
    3in1(3-10L bottle)
    Capacity
    Linear type
    Capacity
    CGF8-8-3
    2000-3000BPH
    CGF8-8-3B
    0-1000
    CGF4-4-1
    500BPH
    CGF12-12-4
    3000-4000BPH
    CGF12-12-4B
    0-1500
    CGF6-6-1
    750BPH
    CGF18-18-6
    6000-7000BPH
    CGF18-18-6B
    0-2500
    CGF8-8-1
    1000BPH
    CGF24-24-8
    11000-12000BPH
    CGF24-24-8B
    0-3500
    CGF10-10-1
    1500BPH
    CGF32-32-10
    14000-15000BPH
    CGF32-32-10B
    0-5000
    CGF12-12-1
    2000BPH
    CGF40-40-10
    19000-20000BPH




    CGF50-50-12
    23000-24000BPH





    More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
