Pure Drinking PET Bottle Water 3 In 1 Monoblock Washing Filling Capping Equipment / Plant / Machine / System / Line

Pure Drinking PET Bottle Water 3 In 1 Monoblock Washing Filling Capping Equipment / Plant / Machine / System / Line

    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Washing Filling Capping Equipment / Plant / Machine / System / Line
    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Washing Filling Capping Equipment / Plant / Machine / System / Line
  • Pure Drinking PET Bottle Water 3 In 1 Monoblock Washing Filling Capping Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: QS-12 CG-12 FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Capacity: 1500-2000 Bph Core Technology: Air Conveyor
    Suitable Bottle Size: 0.1-2L PET Bottle Automation: Automatic
    Material: SUS304 Dimension(L*W*H): 2100*1750*2100 Mm

    Decription of linear type 12-12-1 Pure drinking water PET bottle filling line


    Assuring You of Our Best Machines
    We are committed to provide you with the exceptional bottle washing-filling-capping machine and helping you attain your requirements.

    Please feel free to contact us for more information of interest.

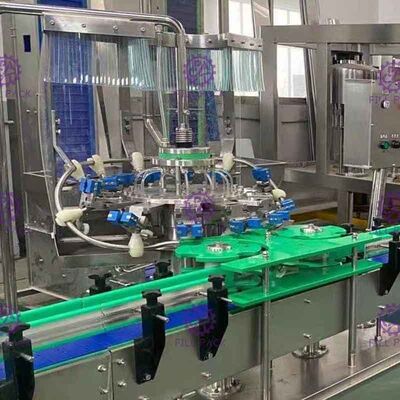

    Rotary bottle washer:
    ★ The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station.
    Parameters:
    Rising heads 12 pcs
    Capacity 0-3000BPH (each bottle rinsing time 4s)
    Power 0.92KW
    Dimension
    1050*950*1700mm
    Weight 700KG
    Applicable bottle D∮50-100mm,H 50-350mm


    Normal pressure filler
    ★ The bottles will be taken into filler by conveyor, the dia plate will turn each bottle to be caught by holding clap, with driven energy of motor, the holding claps will go up and down as main axis, when clap hold bottle, it will go up to press bottle mouth closely to filling head, at the meantime, filling value open and start to fill, when the bottle mouth leave the filling head, filling stop.
    Parameters:
    Filling heads 12 pcs
    Power
    1.1KW
    Dimension 1100*1050*1850mm
    Weight 800KG

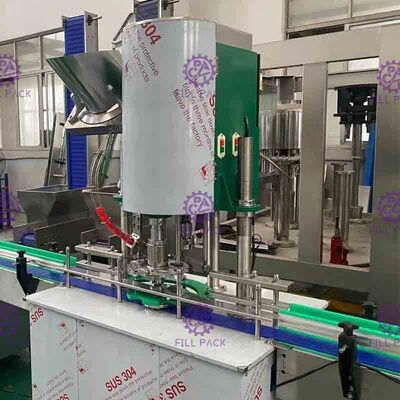

    Screw cap capping machine:
    ★ The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is an separate part. Change cap is only need to change capping head, easy for change and operation.
    Parameters:
    Capping head
    1 pc
    Power
    1.1KW
    Dimension 1000*850*2000mm
    Weight 600KG

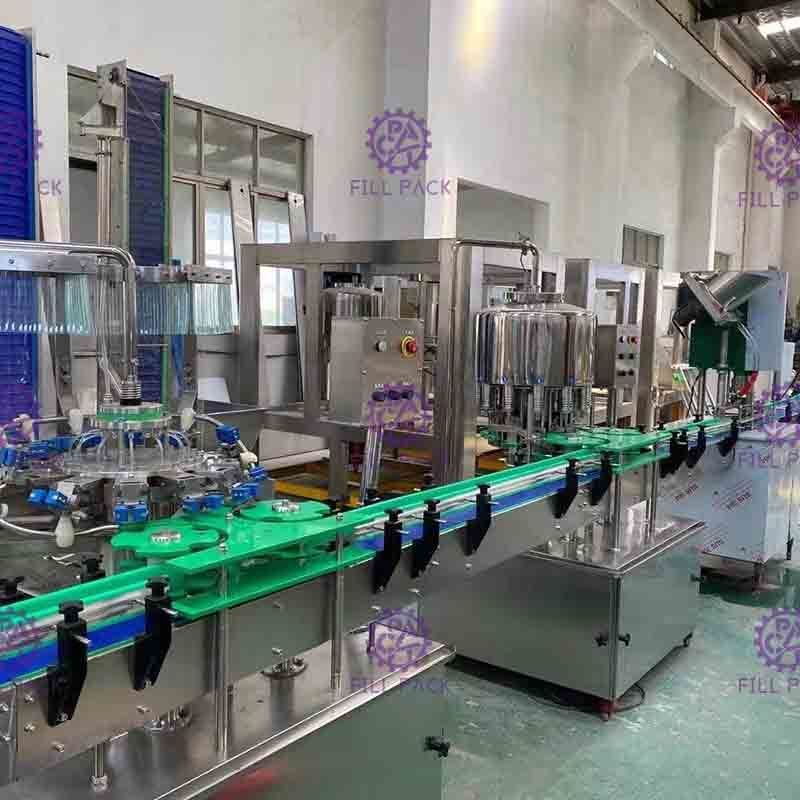

    The monoblock washer filler capper machine is composed of QS washer, CG filler, FXZ capper connected by linear conveyor system, it is suitable for just trail started customer or which do not require high speed.



    Our Washing-filling-capping machines (3-in-1 and Linear type)
    3in1(0-2L bottle) Capacity(bottle per hour) 3in1(3-10L bottle) Capacity Linear type Capacity
    CGF8-8-3 2000-3000BPH CGF8-8-3B 0-1000 CGF4-4-1 500BPH
    CGF12-12-4 3000-4000BPH CGF12-12-4B 0-1500 CGF6-6-1 750BPH
    CGF18-18-6 6000-7000BPH CGF18-18-6B 0-2500 CGF8-8-1 1000BPH
    CGF24-24-8 11000-12000BPH CGF24-24-8B 0-3500 CGF10-10-1 1500BPH
    CGF32-32-10 14000-15000BPH CGF32-32-10B 0-5000 CGF12-12-1 2000BPH
    CGF40-40-10 19000-20000BPH
    CGF50-50-12 23000-24000BPH

    More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
