5 Gallon Semi Auto Decapper Water Filling Machine With Checking Window
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | Fillpack |
| Certification: | CE,ISO |
| Model Number: | BS-1 |
| Suitable bottle: | 3-5 gallon water bottle |
|---|---|
| Automatic type: | Semi-auto type |
| Power: | 1.1 kw |
| Driven type: | Electric type |
| Condition: | New |
| Guarantee time: | 1 year |
| Service: | Engineer is avaliable to overseas |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case as machine need |
| Delivery Time: | 5-7days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 200 sets/month |
|
Detail Information |
|||
| Material: | SUS 304 | Voltage: | 380V |
|---|---|---|---|
| Driven Type: | Electric | Function: | Washing Filling Capping,5 Gallon Bottle Water Washing Filling Capping Process,5 Gallon Filling Machine,Water Bottle Filling Machine |
| Filling Material: | Non Gas Liquid,paste Or Liquid,pure/mineral Drinking Water,Flowing Liquid | Processing Types: | Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Normal Pressure Filling,Spring Water |
| Highlight: | 5 Gallon Pure Water Filling Machine,Decapper Water Bottling Machine,380V Gallon Filling Machine |
||
Product Description
BS-1 3 - 5 gallon bucket washing equipment/system/plant with checking window

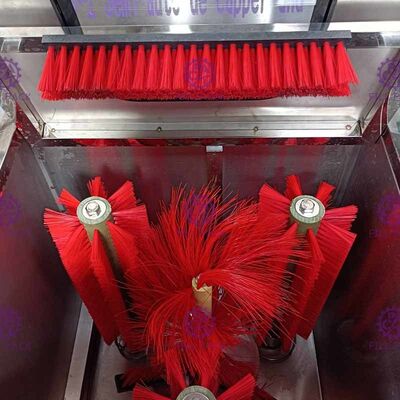

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client's needing.
|
Parameters
|
|
|
Power
|
1.12KW without heating, 2.12KW with heating
|
|
Dimension
|
800*800*1200mm
|
|
Weight
|
110kg
|
Quick Detail:
1. Capacity: 100-300 Barrels/H
2. For pure / mineral water recycled 5 gallon bottle
3. Main material: stainless steel
4. Automatic type: Semi auto type
5. Cap pilling head: 1 head
6. Brushing head: 1 head
7. Brusher: 8 pieces
Working process:
When get through the power and air source, manual put the gallon bottle upside down into the cap puller part, like the photo, then open the machine switch, manual feet tread the switch under the floor, then the gallon cap will be remove and slip from the cap hole on the right side. Then manual put the gallon bottle upside down into the machine, click the “operation” button to have the automatically inside and outside of brushing, after a while, close the switch and take out the gallon bottle, then it’s finished. The brushing time depends on the gallon bottle state.
For more details, please feel free to contact me.
Competitive Advantage:
1. Our machine is with good quality and price, we can make the machine customized for you if need.
2. Our company has been established more than 15 years, we are a professional manufacturer in every kind of beverage production machine.
3. We have the certifications of ISO, CE and so on.
4. Our company machines are exported to many countries abroad every year.
5. We can offer free technician support and consultation to help you to order a new equipment and start a new company.
6. We can offer one year guarantee for the machine you ordered freely, forever technology supports in our machine and related machine.
7. W can send our technician to your country for machine commissioning and instruction conveniently.
8. Your inquiry will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me if any question you have.
Detailed photos:
Our workshop
Packaging & Shipping
Customer's service:
1. FILL-PACK company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. FILL-PACK company have professional design team, our engineer can draw bottle samples and flow chart ofworkshop for you .
3. FILL-PACK company give you the best quotation for all kinds of beverage production, only you can tell me whichkind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
