300BPH Full Automatic 5 Gallon Water Filling Machine for 18.9L barrel drinking water production line
Product Details:
Place of Origin: | Zhangjiagang, China |
Brand Name: | FILLPACK |
Certification: | CE/ISO9001 |
Model Number: | QGF-300 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | 6930 USD |
Delivery Time: | 15 Working Days After Deposit |
Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
Supply Ability: | 20 Sets Per Months |
Detail Information |
|||
Voltage: | 380V 50Hz | Volume: | 18.9 L |
---|---|---|---|
Filling Heads: | 2 | Material: | SUS304 |
Barrle Size: | 270*490 Mm | Dimension(L*W*H): | 3400mm*1000mm*1750mm |
Gas Pressure: | 0.4-0.6 Mpa | Gas Consumption: | 0.6m3/min |
Highlight: | Automatic 5 Gallon Water Filling Machine,SUS304 5 Gallon Water Filling Machine,SUS304 automatic pet blowing machine |
Product Description
300BPH Full Automatic 5 Gallon Water Filling Machine for 18.9L barrel drinking water production line
1.1,Semi-auto de-capper and washer
Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client’s needing.
Parameters:
Power: 1.12KW without heating, 2.12KW with heating
Plate thickness: 1MM
Machine cube size: 25*25MM
Cube thickness: 1.5CM

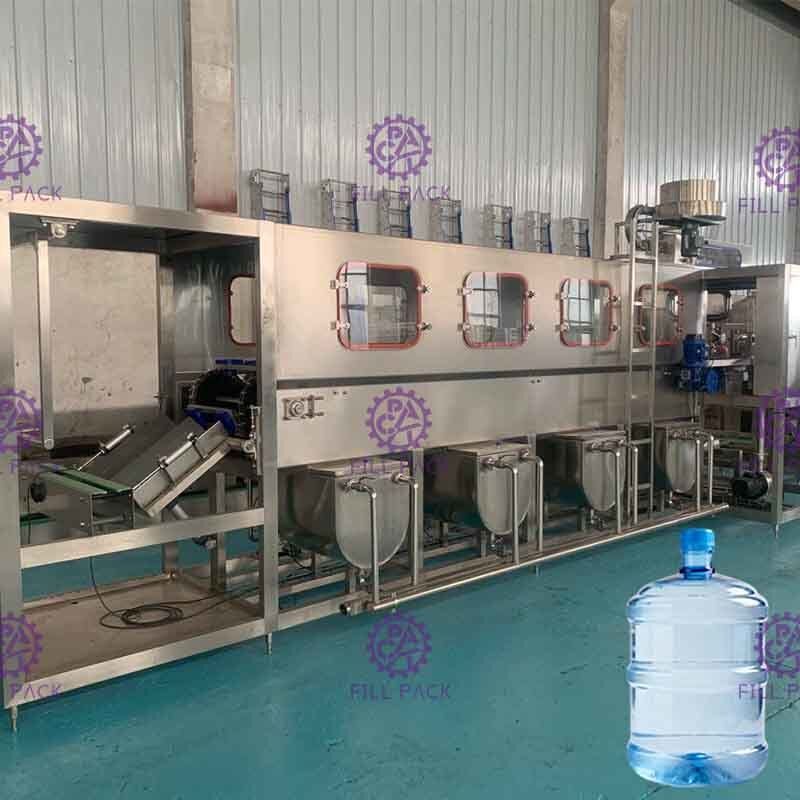

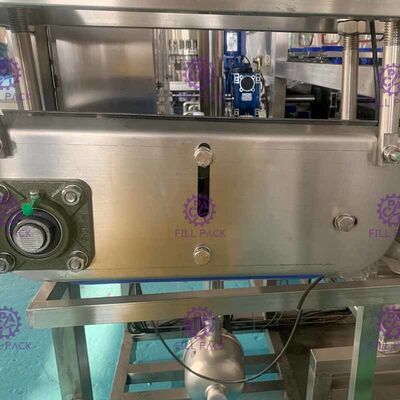

1.2 Monoblock rinser-filler-capper
The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.
The machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power , air power.
Working process:
Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 36 working stations,working process as below:

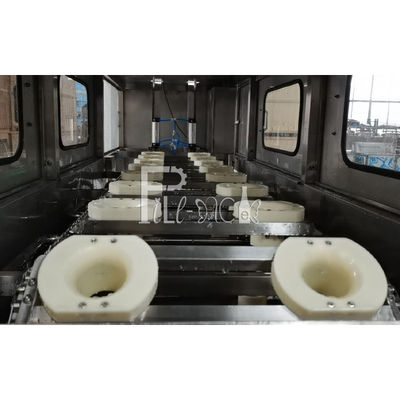

(1)Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,4 working station for barrel inserting.
(2)Washing process will be divided into 4 steps:1, hot alkali water washing 2,thimerosal washing;3,clean water washing,4,pure water washing.Every washing step is set to 8S,after washing,there will be 10S for dripping.
(3)The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.
(4)Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.After filling, the extra water will back to pure water tank by automatic vent,it can reduce water consumption.(water tank is not included)

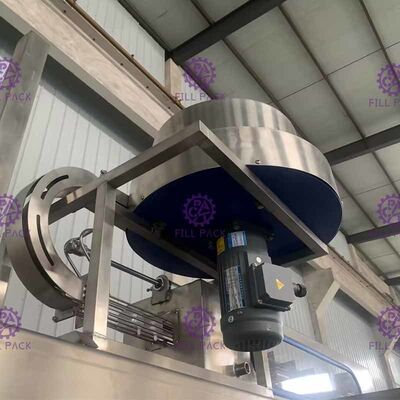

(5)After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now.
Spare parts for free:
Sealing ring for filling valves*1suit
Parameters:

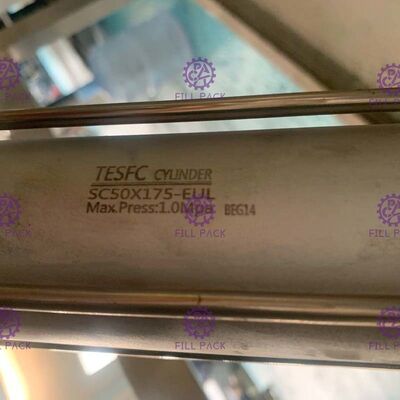

Cylinder: Air tech-Taiwan
Magnetic valve: Air tech-Taiwan
Rising pump-filling pump: Nanfang
Motor: TWT Taiwan

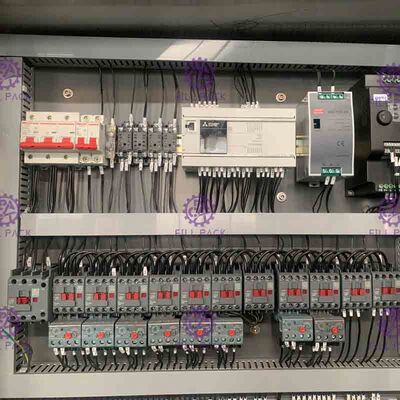

PLC: Mitsubishi Japanse
Power: 5.3KW
Dimension: 3400*1000*1750mm
Weight: 500kg
Model
|
QGF-120
|
QGF-200
|
QGF-300
|
QGF-450
|
Filling heads
|
1
|
2
|
2
|
3
|
Volume
|
3-5 gallon
|
|||
Barrel size
|
Φ270*490mm
|
|||
Capacity
|
120BPH
|
200BPH
|
300BPH
|
400BPH
|
Air press(Mpa)
|
0.37
|
0.37
|
0.6
|
0.8
|
Power supply
|
1.38KW
|
2.5KW
|
5.3KW
|
5.6KW
|
Dimension
|
3400*780*1950mm
|
3400*780*1950mm
|
3400*1000*1750mm
|
5000*2000*1800mm
|
Weight
|
400KG
|
500KG
|
700KG
|
1000KG
|
Washing process will be divided into 4 steps:
1, hot alkali water washing;
