Full Automatic 5 Gallon Water Filling Machine 450BPH 20 Liter Barrel Drinking
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | QGF-450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 12128 USD |
| Delivery Time: | 15 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Voltage: | 380V 50Hz | Volume: | 18.9 L |
|---|---|---|---|
| Filling Heads: | 3 | Material: | SUS304 |
| Barrle Size: | 270*490 Mm | Dimension(L*W*H): | 5000mm*2000mm*1800mm |
| Gas Pressure: | 0.4-0.6 Mpa | Gas Consumption: | 0.8m3/min |
| High Light: | Full Automatic 5 Gallon Water Filling Machine,5 Gallon Water Filling Machine 450BPH,5 Gallon Water Filling Machine 20 Liter |
||
Product Description
450BPH Full Automatic 20 Liter Barrel Drinking 5 Gallon Water Filling Machine 18.9L water production line
1.1,The Automatic de-capping machine and the de-capping head
This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;
De-capping head is composed by claw device and cylinder, de-capping head position can move up and
down, claw device can be adjusted slightly to be suitable for different caps.
When the gallon bottle comes into the machine, the de-capping head will go down and claw device
will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are
taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own
holder;
The claw pressure is adjusted to protect caps.
Dimension: 600*600*2000mm
Weight: 80kg
1.2 Monoblock rinser-filler-capper
The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing
position, the cylinder will stop 3 bottles inside and fixed them by brushes and fixing bar, the water will
be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned
by brushes and water function;
No air compressor needed, it is easy for production and maintenance;
Parameters:
Brush qty: 4pcs*2
Dimension: 1200*1100*1750mm
Weight: 300KG
Power: 0.55KW
Recycle water tank size: 600*550*550mm

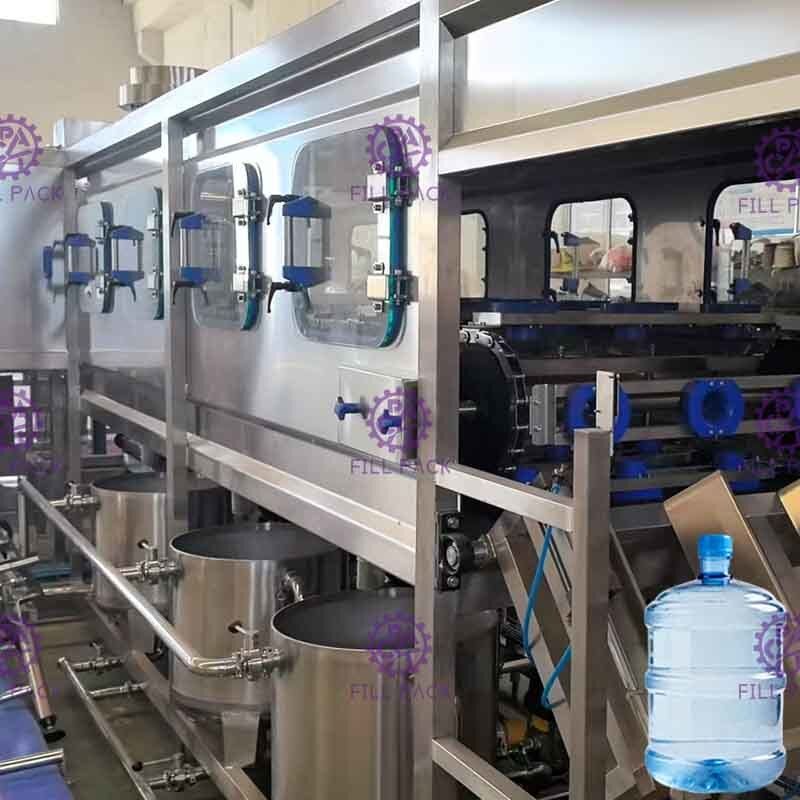

1.3 Washer/Filler/Capper with auto bottle loading
450BPH Washer/Filler/Capper for ref.
The machine is integrated washing filling and capping together. It is ideal machine to produce barrel
water. The whole machine is using stainless steel 304 shell, rust resistant, can be cleaned easily.Main
electric parts are all branded. Air channel system use Air TAC brand product.The machine is with
compact construction, just occupy small room, working efficiency is high.
The machine set-up do not need plug floor screw, after case taking off, set the machine on the flat
floor, and then adjust stand height and adjust all stand pressure to be average. After the machine is set
up well, get in through water pipe, drain pipe and power, air power.
Working process:
Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 16 working stations,
1, 2 disinfectant washing stations
2, 1 dripping station
3, 2 return water stations
4, 2 pure water stations
5, 1 dripping station
One side 8 stations, Both sides 16 stations
Working process as below:
1. The empty bottles enter the washing and disinfection stations through the chain and bottle holder.
(The washing bottle passes through 8 stations) Washing process will be divided into 4 steps:1, hot
alkali water washing 2,thimerosal washing；3,clean water washing,4,pure water washing.Every
washing step is set to 8S,after washing,there will be 10S for dripping. When the drive motor runs
with an empty bottle, and enters the positioning induction zone with the sensor on the chain, the
positioning sensor switch sends a signal to stop the drive motor, and at the same time, the rinse
bottle water pump starts to perform The flushing and disinfection work (the flushing time is
controlled by the PLC program setting);

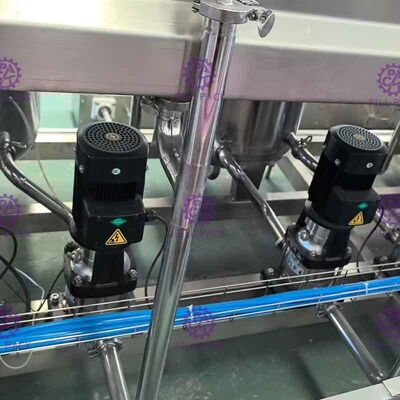

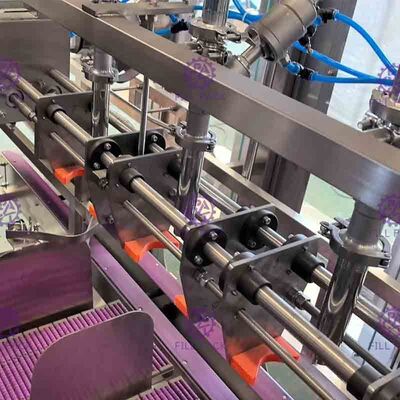

2. After rinsing, the rinsed empty bottles are transported by the bottle washing drive mechanism, and
fall on the bottle pushing rack. The bottle pushing cylinder works to push the empty bottles to the
filling position, so that the filling nozzle is aligned with the water bottle mouth, etc. After the water is
flushed, the filling pump starts filling. (The filling time is adjusted by the user according to needs)
3. When the filling is full, the PLC sends out a control signal, the filling solenoid valve is closed, and the
filling is stopped. After the filling is completed, the filled water bottle is sent to the cover of the
capping area by the next water bottle and sent to the gland Area, the capping cylinder drives the
capping device to press the cap tightly. At this point, a wash irrigation cycle is completed.
Parameters:
Cylinder: Air tech-Taiwan
Magnetic valve: Air tech-Taiwan
Rising pump-filling pump: Nanfang
PLC: Mitsubishi Japan
Material: SUS304
Power: 5KW
Dimension: 5000*2000*1800mm
Weight: 800kg
