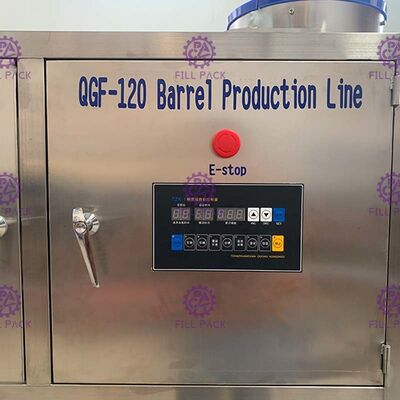

Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment

Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment

    • Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment
    • Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment
    • Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment
    • Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment
  • Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: SM-1
    Application: 5 gallon bottle neck shrinkage
    Packaging Type: stainless steel
    Driven type: Electric
    Certification: CE, ISO
    Guarantee time: 1 year
    Condition: New

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case as machine need
    Delivery Time: 7-10 days
    Payment Terms: 30% T/T deposit, 70% before shipment
    Supply Ability: 80 sets/month
    Contact Now
    Detailed Product Description



    Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment





    Quick Detail:



    1. Shrink capacity: 100-600 Barrel/H

    2. Used to make the 5 gallon bottle neck film shrinkage

    3. Material: stainless steel

    4. Set with two pieces electric heating pipe for heat shrinkage, 6 kw/piece

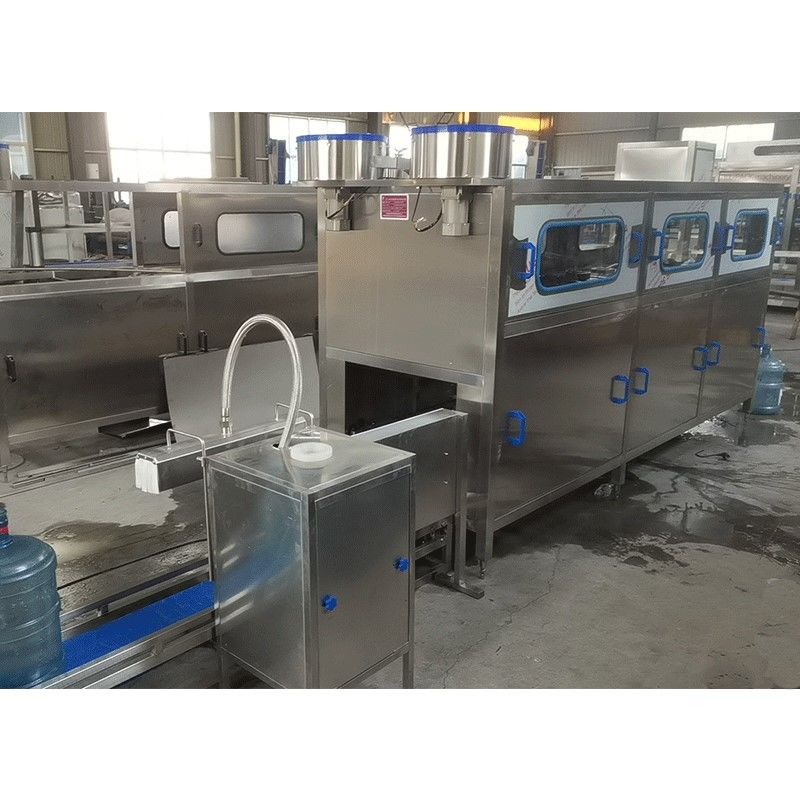

    5. Put beside the conveyor after gallon bottle filling and sealing.





    Description:



    This machine is used to shrink the film in bottle neck or cap, film heat shrinker could adjust temperature and speed. It is suitable for many kinds of heating shrink film. It adopts high heat materials and has good heat preservation and low energy consumption.





    Working process:

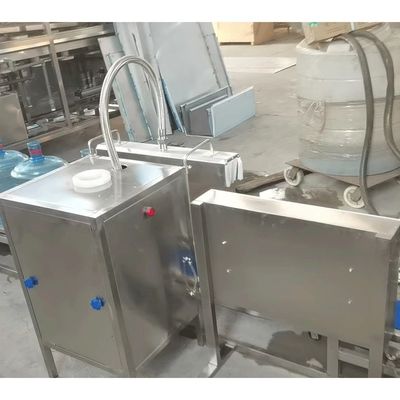

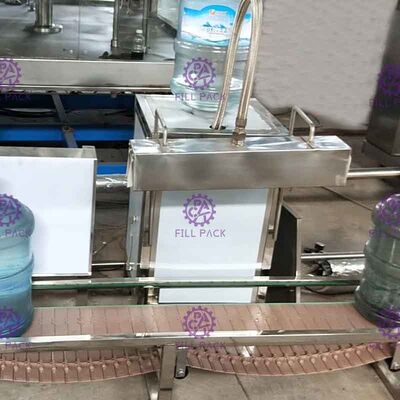

     Before using the machine, manual need to set the electric heating pipes into machine; then put a 5 gallon water with full water to upside down to the machine tank above, then water will flow into the samll tank; get through the power of machine, after a while, the water in the small tank will be heated warm to produce the steam, which steam will go out the outlet pipe of shrink tunnel; when full filled 5 gallon water bottles comes through the chain conveyor, manul put the bottle neck PE film to bottles, when gallon bottles are through the shrink machine, the steam will have the shrinkage function.





    Main Technology data:



    Treament capacity: 100-600 B/H

    Main material: stainless steel

    Automatic type: Automatic

    Heating type: shrink tunnel with water heated to have the steam by electric heating pipe

    Power: 6*2 KW

    Dimension: 850*850*1100mm

    Weight: 60kg

    Plastic Barrel 5 Gallon Water Filling Machine Automatic Shrink Packaging Equipment

    please kindly click the play button to watch the video
