Hot Glue  Bottle Case Packer Machine automatic continuous feeding

Hot Glue Bottle Case Packer Machine automatic continuous feeding

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: YF-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: 50000USD/set
Packaging Details: Sea worthy package
Delivery Time: 30 days after deposit receipt
Payment Terms: TT / LC / , D/P, T/T, , MoneyGram
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

Core Components:: Motor, PLC Capacity:: 20 Boxes/min
Packaging Type:: Cartons Voltage:: 380V 50HZ
High Light:

Carton packing bottle case packer machine

,

Hot glue bottle case packer machine

,

Hot glue bottle water packaging machine

Product Description

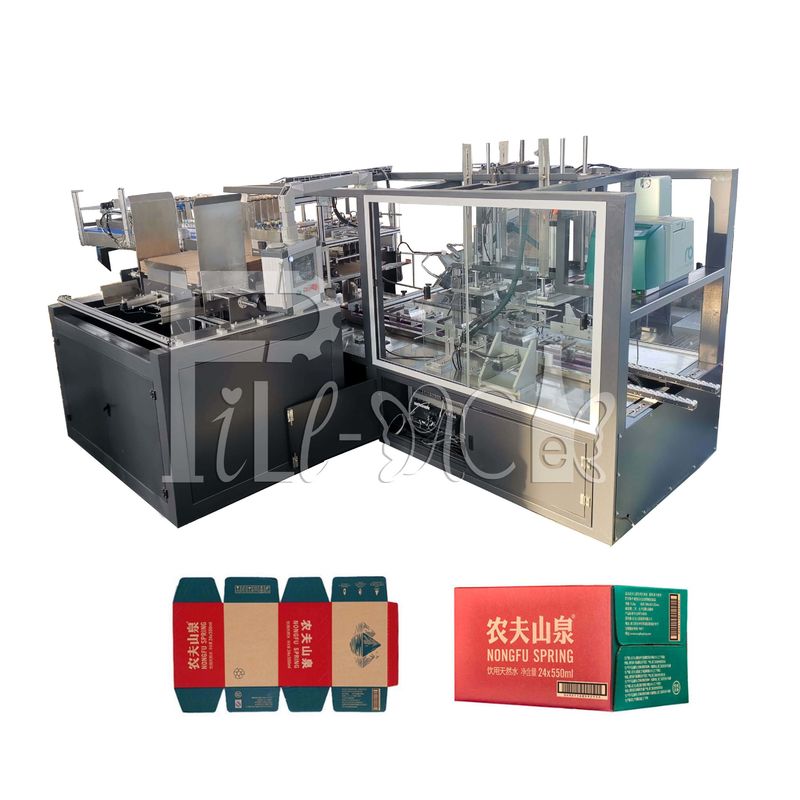

Hot glue one piece carton box / case packing machine / packer for PET glass bottle



Structural features:

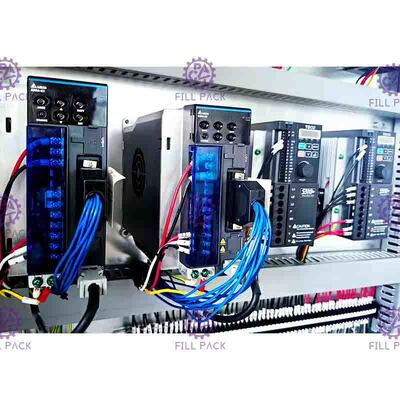

1. The main drive adopts variable frequency speed regulation and PLC control technology, combined with human-machine interface to realize stepless speed regulation. The main control adopts Siemens programming controller, which has fast communication capabilities and powerful diagnostic functions to ensure the reliability of the system. Convenient operation, compact and reasonable structure, high degree of automation;

2. Reliable work: the machine is realized by pneumatic components to achieve the packaging action of the product, and the product conveying on the main chain is driven by the servo motor to ensure that the product is accurately in place at each station. Pneumatic and electric control make the product accurate and reliable Complete the perfect packaging molding of the product;

3. Smooth operation: the entire packaging process is driven by a servo motor to drive the product on the main chain, which realizes a smooth transition from one station to the next station, starting and stopping, and is combined with pneumatic, electrical, and optical controls to achieve automated operation . Movement coordination, smooth and accurate movement;

4. The conveying box channel adopts micro pressure control design;

5. Meet the requirements of food hygiene: oil-free pneumatic components are used, and most of the moving parts adopt a humanized design that does not need to be lubricated for life, which reduces a lot of use costs for users. A small part of the moving parts need to be lubricated by the user, which is convenient to refuel, and the daily maintenance is simple and trouble-free; at the same time, it has low noise and no oil pollution;

6. Paper feeding adopts automatic continuous feeding;

7. Equipped with multiple protection functions, stop in time when failure occurs. Such as: automatic shutdown when the carton is not full and waiting; automatic shutdown and waiting when the bottle is not full on the bottle conveying table; automatic shutdown when paper jams in the paper feeding position and box dropping; automatic shutdown when the operator enters the safety isolation line, etc. ;

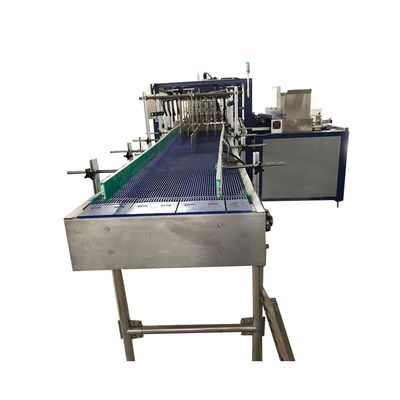

8. The bottle conveying system adopts domestic high-quality integral network chain with transition plate to ensure a smooth transition with the buyer's conveyor belt; the complete machine system automatically adjusts the packaging speed by following the product bottle feeding speed on the conveyor belt.



 Advantages of this machine:

1. Straight-in bottle method: small footprint, simplifies the conveying system before the packing machine, and reduces the investment cost of the entire line equipment;

2. Adopt side feeding paper method: simple and reasonable structure, low failure rate;

3. Two-stage decompression is adopted: the product is effectively decompressed, the bottle falls smoothly, and the bottle does not jam, and the success rate of the bottle is 100%; the product is in a state of low pressure and steady delivery after the falling and packing process, and has a structure design for preventing the bottle from falling. Basically eliminate the phenomenon of bottle falling;

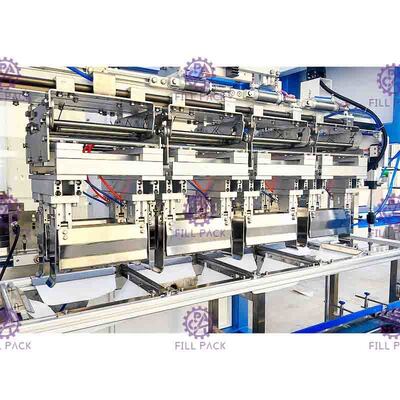

4. Servo bottle dropping system is adopted: high positioning accuracy, precise movement action, effectively reducing shock and vibration during equipment operation, and greatly improving equipment operation stability and reliability;



The main technical parameters:

Capacity:
20carton/min
Packing method:
Carton packing
Applicable bottle type:
Tin,PET bottle,glass bottle
Power:
10KW
Conveyor motor power:
1.1-1.5KW
Lifting servo motor power:
2KW
Main chain servo motor power:
3KW
Cardboard feeding motor power:
0.55KW
Glue machine power:
3KW
Control power:
24V DC
Compressed air:
0.6Mpa,300L/min
Size:
6000*2100*2088mm
Weight:
380KG
MAX size of carton that can be packed:
460*280*350mm
MIN size of carton that can be packed:
240*150*120mm
Cardboard requirements:
Meet the national standard GB/T 6544-2008

Applied bottle type: round bottle, square bottle, alien bottle.
Package product
Package specification
Capacity
Applied bottle type
200ML-400ML
4*6,4*5,3*4or 3*5,2*3 ect
20carton/minute
PET/Tin/Glass bottle
300ML-500ML
4*6,4*5,3*4or 3*5,2*3 ect
20carton/minute
PET/Tin/Glass bottle
300ML-600ML
4*6,4*5,3*4or 3*5,2*3 ect
20carton/minute
PET/Tin/Glass bottle
500ML-1250ML
3*4, 2*3 ect
20carton/minute
PET/Tin/Glass bottle
1250ML-2500ML
2*3,2*2ect
20carton/minute
PET/Tin/Glass bottle
