Double row automatic Bottle Packaging Machine for film wrapping shrink
Product Details:
Place of Origin: | Mainland, China |
Brand Name: | FillPack |
Certification: | CE. ISO |
Model Number: | WD-XB25 |
Automation: | PLC contol |
---|---|
Application: | Carton forming, packing and sealing |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Sea worthy package |
Delivery Time: | 45 days after deposit receipt |
Payment Terms: | TT/LC/Wertern union |
Supply Ability: | 1 set/sets/month |
Detail Information |
|||
Overal Size: | 6285*2582*2115mm | Product Capacity: | 25 Package Per Min |
---|---|---|---|
Rated Power: | 10kw | Used Power Supply: | 380V 3ph 50HZ |
Controlling Power Supply: | 24V DV | Compressor Air: | 1500L/min, 0.6-0.8Mpa |
Highlight: | Sterilizer System,Shrink Packing Machine |
Product Description
Double row automatic Bottle Packaging Machine for film wrapping shrink
Quick details:
1, Automatic PLC control
2, High effiency
3, Carton forming, packing and sealing
4, Sealing manner: hot glue melting
Description
The machine adopt to servo location, PLC controlling, auto operation, main drive adopt to import motor drive, multi degree rotation via chain, chain wheel speed regulator ect. It auto degree is high, reliable controlling, easy to adjust, intelligentize manipulation ect advantage, can widely used for beverage, beer, chemistry, food, medicine ect industry, can do all kind of tin and bottle second time package, can match with auto filling production line.
Parameter
Product capacity | 25 carton per min |
Rated power | 10kw |
Used power supply | 380V 3ph 50HZ |
Controlling power supply | 24V DV |
Compressor air | 1500L/min, 0.6-0.8Mpa |
Hot melting glue solidify time | 1.5-2s |
Machine weight | 3500kg |
Overal size | 6285*2582*2115mm |
Bottle entry conveyor size | 3000*620*1200mm |
Package product overal size |
Length: 350-450mm Width: 230-330mm Height: 85-320mm |
Package bottle diameter | 55-108mm |
Applied bottle
Package product |
Package specification |
Capacity |
Applied bottle type |
200ML-400ML | 4*6,4*5,3*4 or 3*5,2*3 ect |
25carton/minute |
PET/Tin/Glass bottle |
300ML-500ML | 4*6,4*5,3*4 or 3*5,2*3 ect |
25carton/minute |
PET/Tin/Glass bottle |
300ML-600ML | 4*6,4*5,3*4 or 3*5,2*3 ect | 25carton/minute |
PET/Tin/Glass bottle |
500ML-1250ML | 3*4,2*3 ect |
25carton/minute |
PET/Tin/Glass bottle |
1250ML-2500ML | 2*3,2*2 ect | 25carton/minute |
PET/Tin/Glass bottle |
Basic configuration
Collocation name |
Brand |
Collocation name |
Brand |
Main drive servo |
Schneider | PLC | Simens |
Photoelectric sensor |
SICK |
Pneumatic component |
AIRTAC |
Frequency transducer |
Schneider |

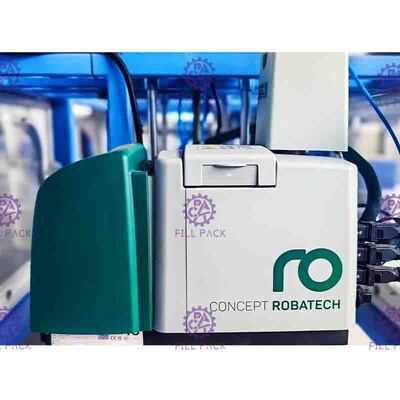

Glue machine |
America |
Touch screen |
Simens |
Servo controller |
Schneider |
Motor |
Domestic |
Low pressure controlling |
Schneider |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
please kindly click the play button to watch the video
