Pure Water Spray Bottle Packing Machine Sterilizer Ice Tea Cooling Machine

Pure Water Spray Bottle Packing Machine Sterilizer Ice Tea Cooling Machine

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: PL
Material: SUS304
Application: Juice sterilizing and cooling

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 35-40 days after deposit receipt
Payment Terms: TT / LC /
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

Highlight:

Sterilizer System

,

Bottle packaging machine

Product Description

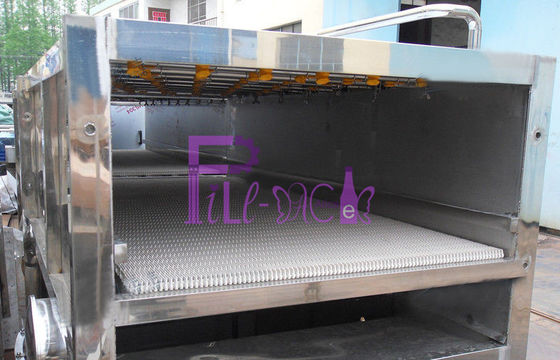

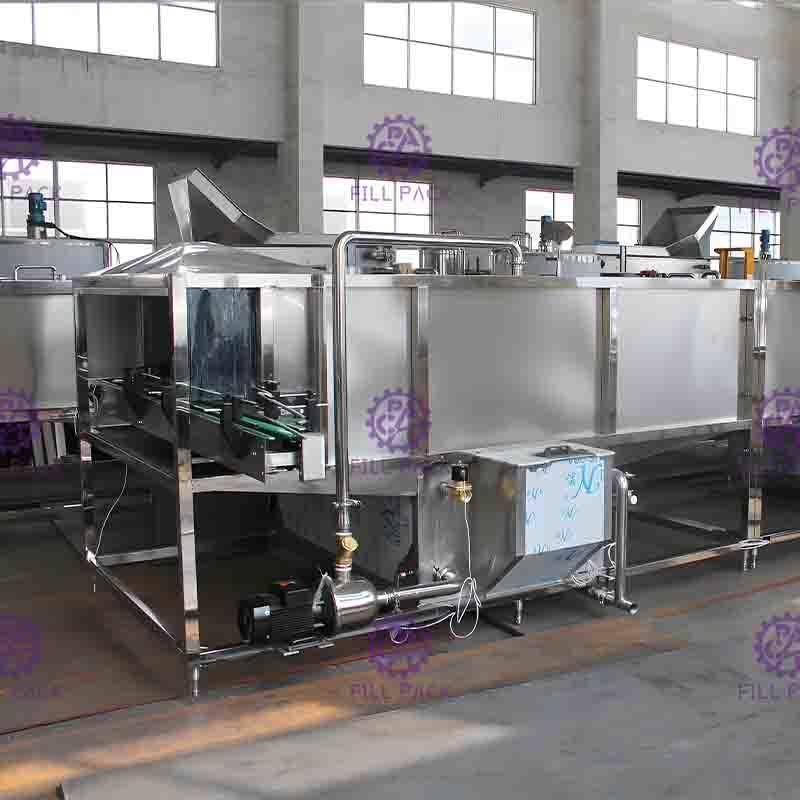

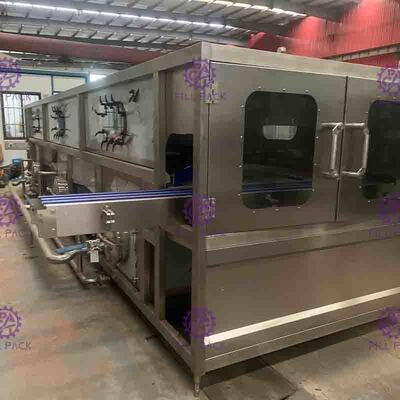

Pure Water Spray Bottled Juice Cooling Sterilizer Ice Tea Cooling Machine





Quick Detail:



1, Processing type: Juice sterilizer machine after filling and capping

2, Warming material: Pure water

3, Material: SUS304

4, Different temperature zones for sterilizing and cooling





Description:



The bottled juice cooling sterilizer machine is applied to PET bottle carbonated drink filling production line. For hot filling, it can put down the temperature of hot filling drink to 36-40. For low -temperature filling, it can get up the temperature to 36-40 to eliminating the condensed water on the external wall of PET bottes, to keeping bottles dry and clean. So convenient to following-up labeling and packing process.





Specifications:



Production capacity (BPH) 3000-5000 6000-9000 10000-15000 24000-36000
Heating temperature (℃) 37-45 37-45 37-45 37-45
Cooling time (min) 12-15 12-15 12-15 12-15
Linear conveyoring speed (m/min) 100-550 100-550 100-550 100-550
Width of mesh conveyor (mm) 1.22 1.22 1.22 1.22
Vaport pressure (Mpa) < 0.4 < 0.4 < 0.4 < 0.4
Vapor consumption (kg/h) 80 120 240 280
Water circulation volum (m3/h) 6 9 15 28
Installed power (kw) 6 7.55 8.6 18
Dimension (L*W*H) 620*1500*1700 1580*1500*1700 1580*1800*1700 22000*800*1700
Weight (KG) 2500 3200 4300 5600





Beverage cooling system - Characteristics



1. The main is stainless steel frame-board structure

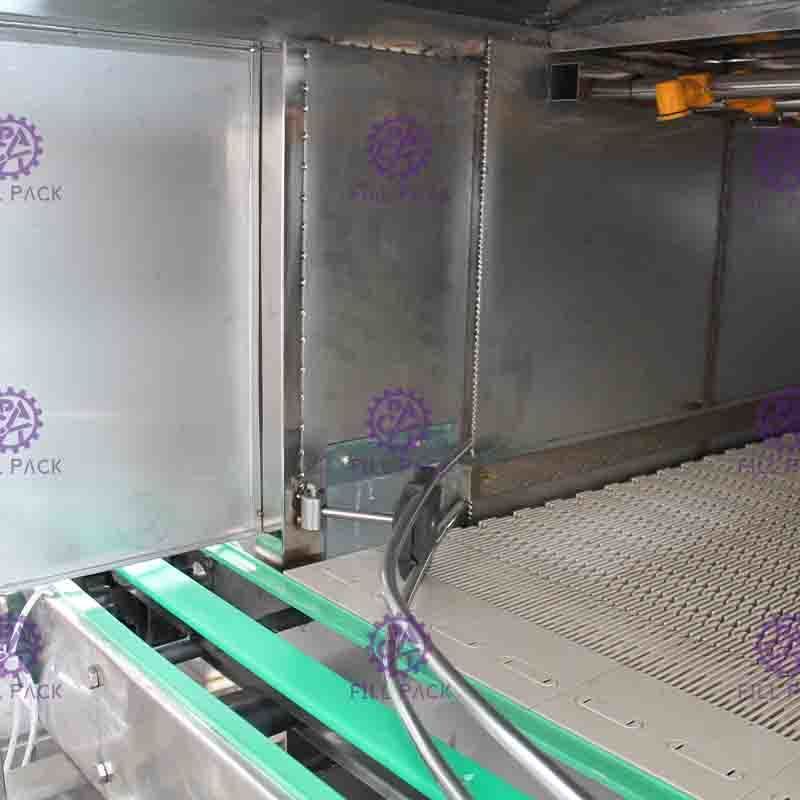

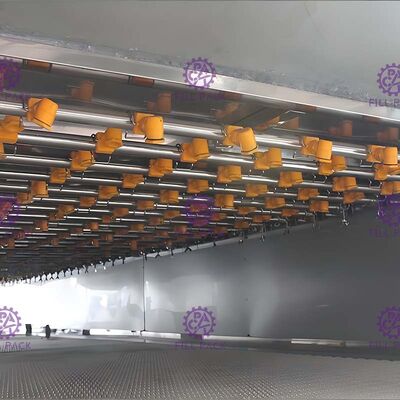

2. The tunnel spraying cleaning is continuous transmission

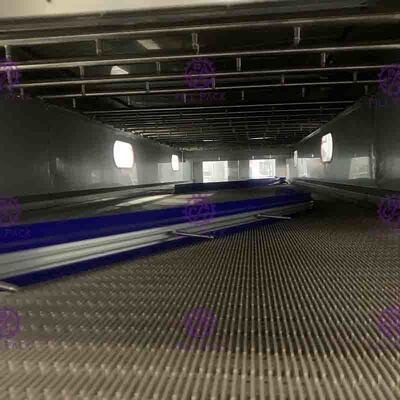

3. Main drive is frequency conversion and infinite speed, convey by plastic chain net or stainless steel chain net

4. Heat by coiled pipe hot vapor

5. Temperature control adopts PLC control film regulating valve





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
