Sectionalized 500ml Bottle Packing Machine Sterilizer For Non Carbonated Beverage

Sectionalized 500ml Bottle Packing Machine Sterilizer For Non Carbonated Beverage

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: PL
Material: SUS304
Application: Juice sterilizing and cooling
Cooling and sterilizing material: Pure water

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 35-40 days after deposit receipt
Payment Terms: TT / LC /
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

Highlight:

Bottle packaging machine

,

Shrink Packing Machine

Product Description



Sectionalized 500ml Bottled Juice Cooling Sterilizer For Non Carbonated Beverage





Quick Detail:



1, Processing type: Plastic / Glass bottled juice / Ice tea sterilizing and cooling machine

2, Cooling and sterilizing material: Pure water

3, Material: SUS304

4, Different temperature zones

5, Capacity: 15000BPH for 500ml plastic bottled juice





Description:



This machine is integrated with those new and advanced technologies applied to most of the popular cooling equipment in the world. The newly version thanks to the three-stage disposal of the cooling water circulation, the cooling time of which can be frequency controlled according to users requirements. It can give ideal cooling effects to all kinds of non-carbonated beverage, such as tea, wine, sauce, vinegar, juice and other beverages. The smoothing and abrasion-proof chain plates, the intellectualized microcomputer control parts from OMRON (Japan), the beautiful and cleanly body is made by SUS304 stainless steel, ensure the reliable, stable operation and beautiful appearance.




Specifications:



Production capacity (BPH) 3000-5000 6000-9000 10000-15000 24000-36000
Heating temperature (℃) 37-45 37-45 37-45 37-45
Cooling time (min) 12-15 12-15 12-15 12-15
Linear conveyoring speed (m/min) 100-550 100-550 100-550 100-550
Width of mesh conveyor (mm) 1.22 1.22 1.22 1.22
Vaport pressure (Mpa) < 0.4 < 0.4 < 0.4 < 0.4
Vapor consumption (kg/h) 80 120 240 280
Water circulation volum (m3/h) 6 9 15 28
Installed power (kw) 6 7.55 8.6 18
Dimension (L*W*H) 620*1500*1700 1580*1500*1700 1580*1800*1700 22000*800*1700
Weight (KG) 2500 3200 4300 5600





Beverage cooling system - Characteristics



1. High reliability conveying device and flexibility speeding system; The conveying belt for bottles is high strength plastic chain net which has god strength and abrasion proof. The driving conveying adopts stepless motor which can change the speed of conveying belt easily.

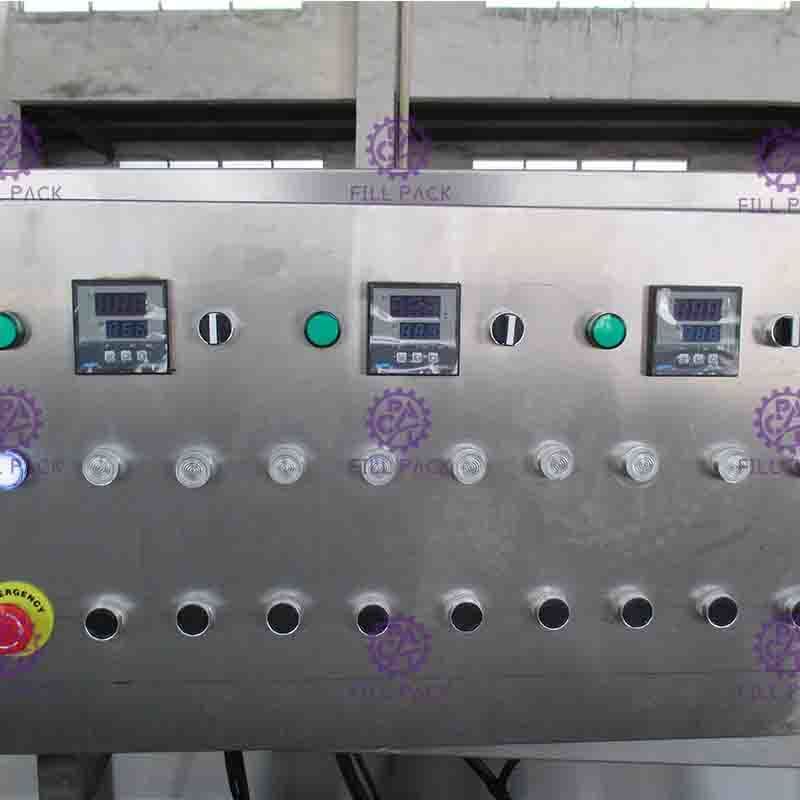

2. The temperature can be controlled flexibly and easily set. The machine adopts temperature controlling system which can control the temperature exactly and be sensitive to the response. Press the button to set temperature between 0-100℃

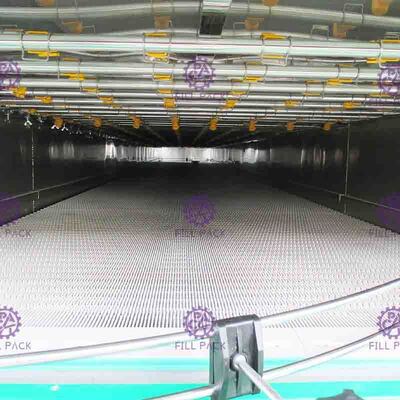

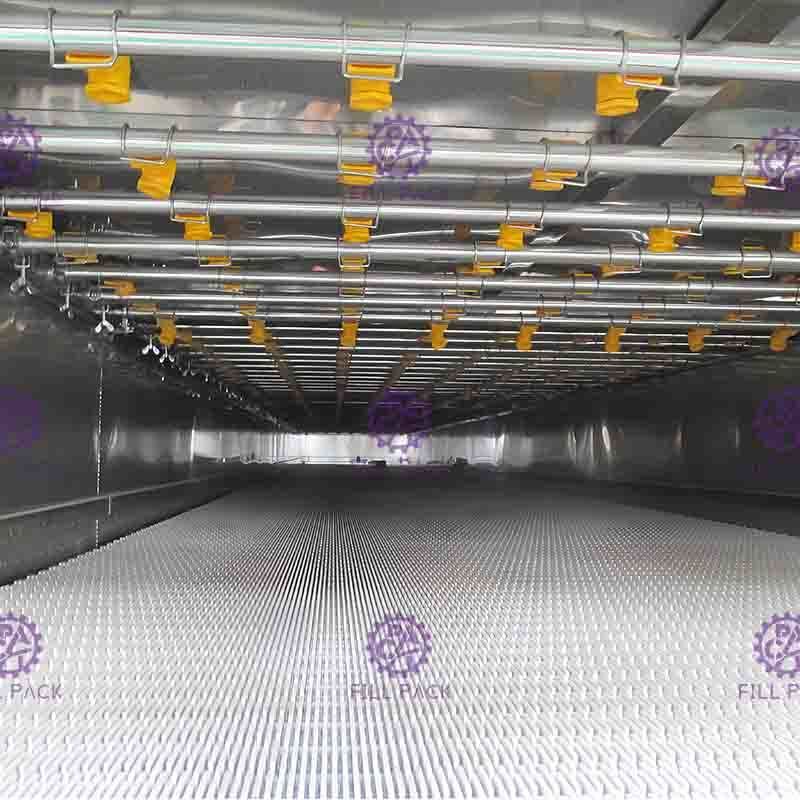

3. High effective spraying system. Via arranging the atomization nozzles on the chain plate in order to spray the bottles evenly, the spraying water can be utilized completely and the spraying covers large area.





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
