500ml 800BPH Pet Bottle Blow Moulding Machine Semi Auto With Muffler
|Place of Origin:||Zhangjiagang, China|
|Certification:||CE / ISO9001|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||sea worthy packing|
|Delivery Time:||25 Working Days After Deposit|
|Payment Terms:||L/C, D/A, D/P, T/T, , MoneyGram|
|Supply Ability:||10 Sets Per Months|
|Bottles Volume::||100-2000ml||Voltage::||380V 3PH 50HZ Or Customized|
|Power::||17.5 KW||Product Material::||PET,PP,PE|
|Key Selling Points:||Easy To Operate||Key Words::||Blow Molding Machine|
500ml pet blow moulding machine,
carbonated pet blow moulding machine,
800BPH pet bottle manufacturing machine

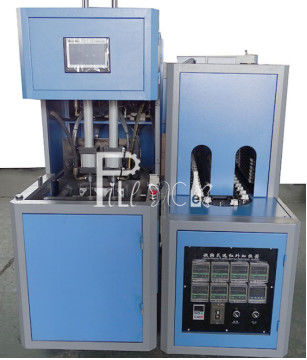

1.1 Semi-automatic blow molding machine
FP-1200A semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
● Use touch screen to control the machine, convenient, efficient and durable.

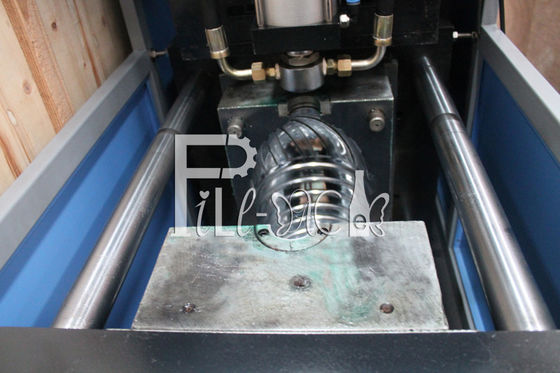

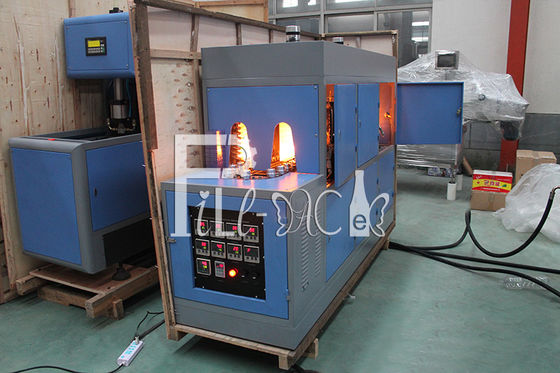

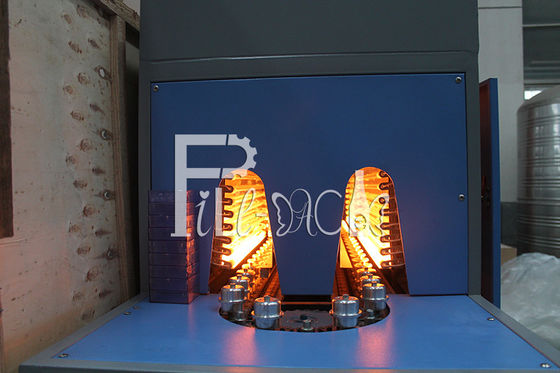

● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate.
|Preform inner diameter||Φ5-38|
|Moulding||Max.mould plate Dimension(L x W)||350×380|
|Mould opening stroke||16|
|Machine size and weight||Main machine (L x W x H)||160×60×161cm|
|Main machine weight||500|
|Heater (L x W x H)||187×63×145cm|
|Heater temperature controller||Preform heating|
|Air source system of bottle blowing machine||Bottle blowing system|
1.2 HP air compressor
1.3 Air Filter:
|Max. work pressure||Mpa||3.0|
We suggest buyer can purchase Air dryer and Mould Chiller to work together with our blow molding machine.
Buyer can choose to buy it from us or locally.
