3L Plastic Bottle Piston Filling Machine Juice Sterilizing Cooling

Product Description

1L / 3L plastic bottle medical / rubbing alcohol / disinfection / liquid / sanitizer manufacturing equipment / machine

The disinfection liquid manufacturing machine is suitable for producing the hot sale medical alcohol and disinfection liquid.
As you can see, the customers open plunder all the medical alcohol and disinfection liquid products on the goods shelves of supermarket, all these medical alcohol and disinfection liquid products are in short all over the world.
So that's a really big chance to build the factory for those medical alcohol and disinfection liquid products processing, mixing, filling, packing.
Here we recommend our machine for medical alcohol and disinfection liquid manufacturing.
We also has other products include EDI water treatment, medical alcohol and disinfection liquid manufacturing, Disinfectant bottle blowing, filling and packing if you want to build the complete plant.

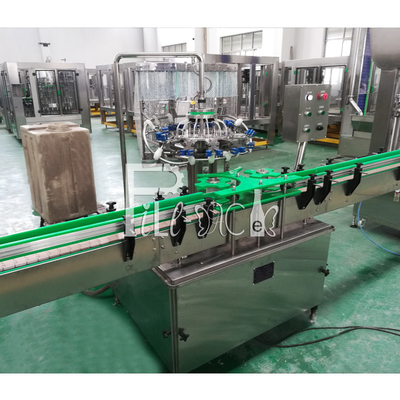

Disinfection liquid bottle washing machine

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

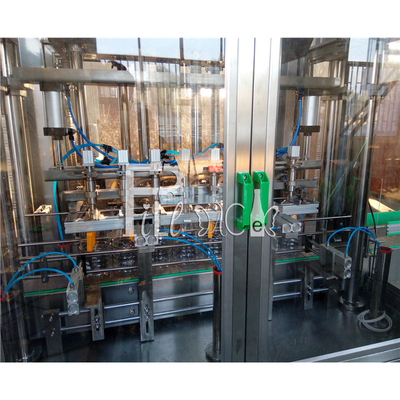

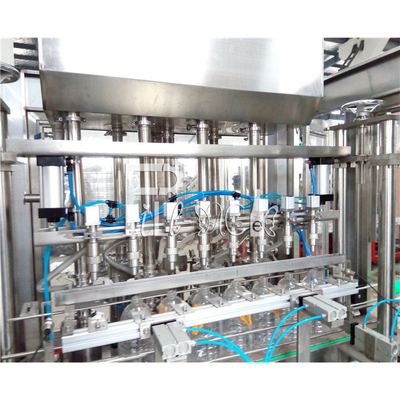

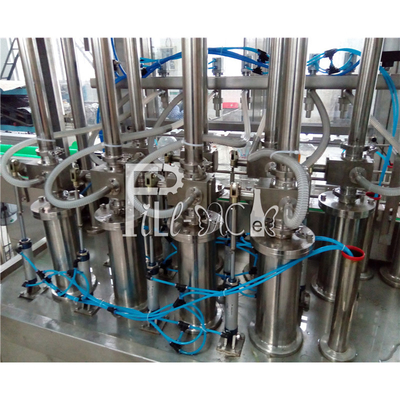

Disinfection liquid manufacturing machine

Disinfection liquid manufacturing machine is suitable for all kinds of liquid, is use pneumatic plunger to increase pressure. Approach switch
control plunger process to make sure filling correctness. It is widely used for sticky liquid filling. Applying with linear bottle
in style, it is suitable for different bottle shape and size including alien shape bottles. Principle of work is: Makes the
reciprocal motion through in the air cylinder around movement impetus material cylinder piston,Thus causes the material cylinder
front cavity to have the negative pressure. When air cylinder forward movement,Draws the piston backward,The material cylinder
front cavity has the negative pressure. Is pressed in for the feeding trough in material by the atmospheric pressure the inlet
pipe,Enters the material tube through the turnover material cone-way valve. When air cylinder backward movement,Impels the piston
to forward,Extrusion material. The material through leaves the material cone-way valve to enter the material hose,Finally through
fills the pattern enters treats fills the spatial bottle (when feeding fills the pattern closure,Leaves when the material
opens),Completes one time to fill the attire. The plunger-type racking machine regarding each time fills the attire is a
mechanical sole simple movement,Therefore all has to each regular vessel very high fills installs the precision and the stability.



Disinfection liquid capping machine

The disinfection liquid capping machine is suitable for different kinds of Duckbill cap, pump type caps and spray type caps.

It adopts a new concept of flexible module combination design, which is suitable for screwing a variety of bottles and caps. No need to change accessories, just simple adjustment, easy operation and easy maintenance. The screw cap is divided into three groups: primary screw and double screw. The torque can be adjusted individually and equipped with a clutch device without overtightening the cover. Two sets of bottle-clamping belts make high bottles or bottles that are not stable.
