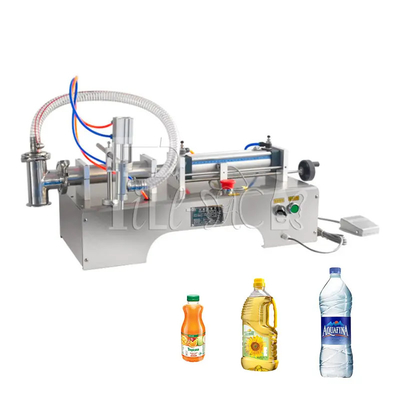

High Precision Pneumatic Piston Filling Machine 60HZ High Pneumatic SUS304 0.6mpa
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | Single head liquid filling machine/Double heads liquid filling machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 100USD |
| Packaging Details: | Cartons |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
|
Detail Information |
|||
| Filling Speed: | 5-25BPM/10-50BPM | Air Pressure: | 0.4-0.6mpa |
|---|---|---|---|
| Material: | SUS304 | Name: | Piston Filling Machine |
| Weight: | 18-68KG | Power: | AC220/110V 50/60HZ |
| Size: | 1350*680*550mm | Type: | Semi-Automatic |
| High Light: | High Precision Pneumatic Piston Filling Machine,0.6mpa Piston Pneumatic Filling Machine,Piston SUS304 Filling Machine |
||
Product Description
Descriptions
Horizontal liquid pneumatic filling machine is the ideal equipment for liquid filling.This filling machine is used to filling food industry such as water, fruit juice,wine,pearl milk tea, coco, edible oil, and other non-corrosive liquids.The whole machine is made of high quality stainless steel, and the shape is novel and beautiful.It's widely used in pharmaceutical, cosmetic, food, pesticides and special industries.
Principle:
The machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment.
The machine is equipped with foot switch, it can stop working at any time.
REMARK: The machine has round and square hopper, can be customized as customer’s requirements.
Characteristics:
1. The machine has simple and reasonable structure, high filling precision, it is easy to operate.
2. It is the ideal equipment to filling high viscosity fluid, and scream.
3. The pneumatic parts adopt famous brand pneumatic elements.
4. The material of the machine which contact the liquid are all made of stainless steel. It meets the GMP standard.
5. It equipped with the regulating handle, which can adjust the filling speed freely, the filling precision is high.
6. The machine is drip-proof, avoid drawing, and equipped filling lifting device.

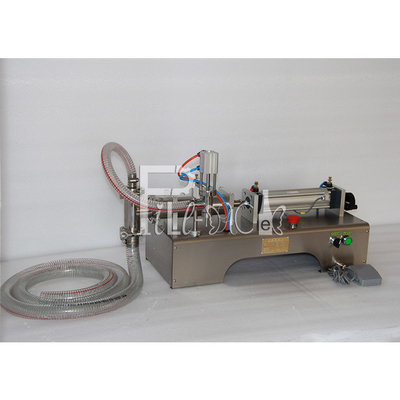

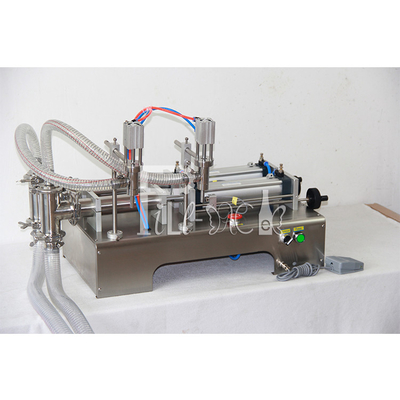

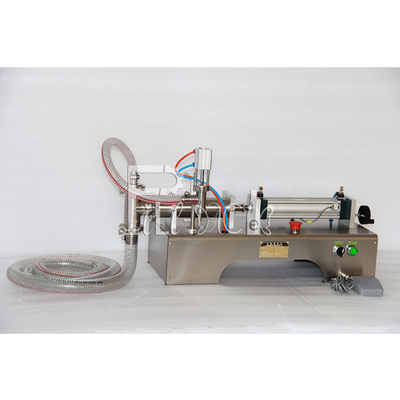

| Single head liquid filling machine | Double heads liquid filling machine |
 |
|
Parameters:
| Model | Single head liquid filling machine | Double heads liquid filling machine |
| Voltage | AC220/110V 50/60HZ | |
| Power | 20W | 50W |
| Air pressure | 0.4-0.6mpa | |
| Filling speed | 5-25BPM | 10-50BPM |
| Filling precision | ≤±1% | |
| Material | SUS304 | |
| Hopper volume |
3-30ml; 10-100ml; 30-300ml; 50-500ml:30L 100-1000ml; 500-3000ml; 1000-5000ml:40L |
|
| Filling range options |
3-30ml; 10-100ml; 30-300ml; 50-500ml; 100-1000ml; 500-3000ml; 1000-5000ml |
|
| Air consumption | ≥0.008m³/second | |

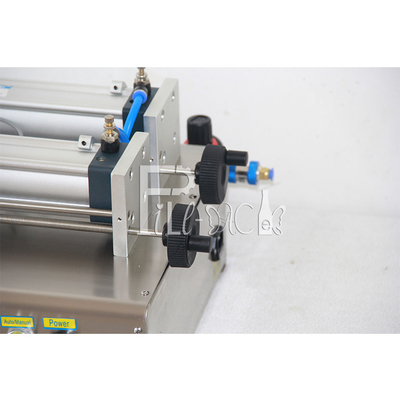

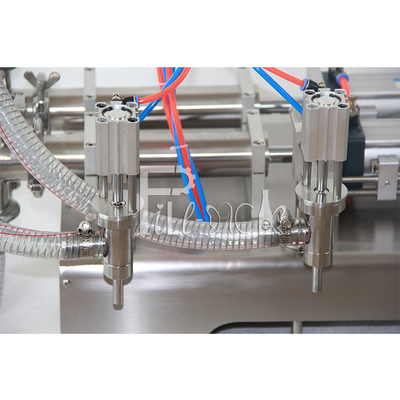

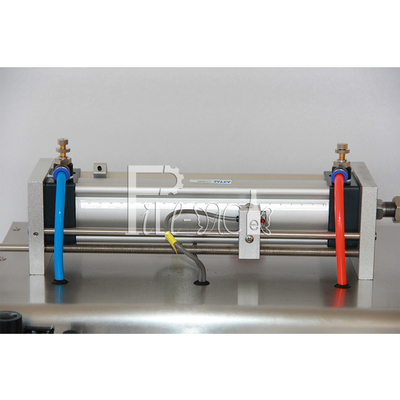

Detail Images:
|
|
|
|
|
|
Packing details:
| Model | Filling range | Packing | Dimensions(mm) | Weight(kg) |
|
Single head liquid filling machine |
3-30ml |
Carton packing |
970*380*350 | 18 |
| 10-100ml | 970*380*350 | 18 | ||
| 30-300ml | 970*380*350 | 20 | ||
| 50-500ml | 970*380*350 | 22 | ||
| 100-1000ml | 1170*380*350 | 28 | ||
| 500-3000ml | 1380*400*380 | 45 | ||
| 1000-5000ml | 1350*450*550 | 55 | ||
|
Double heads liquid filling machine |
3-30ml |
Carton packing |
970*530*350 | 35 |
| 10-100ml | 970*530*350 | 35 | ||
| 30-300ml | 970*530*350 | 40 | ||
| 50-500ml | 970*530*350 | 40 | ||
| 100-1000ml | 1170*530*350 | 48 | ||
| 500-3000ml | 1380*600*380 | 58 | ||
| 1000-5000ml | 1350*680*550 | 68 |
Electric Circuit Diagram for reference:
Air Circuit Diagram for reference:
