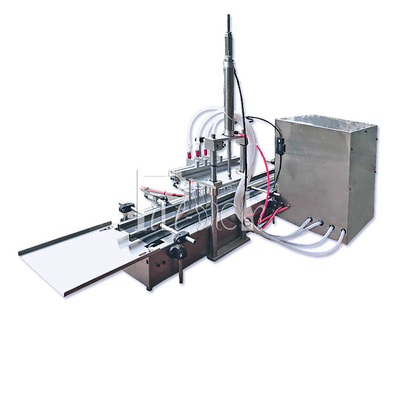

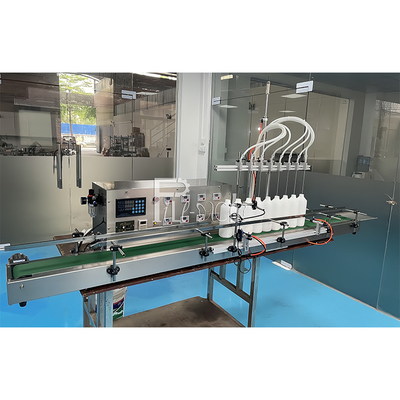

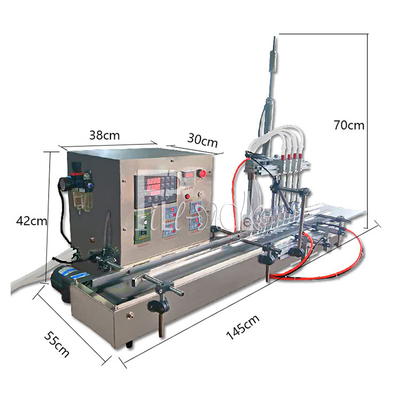

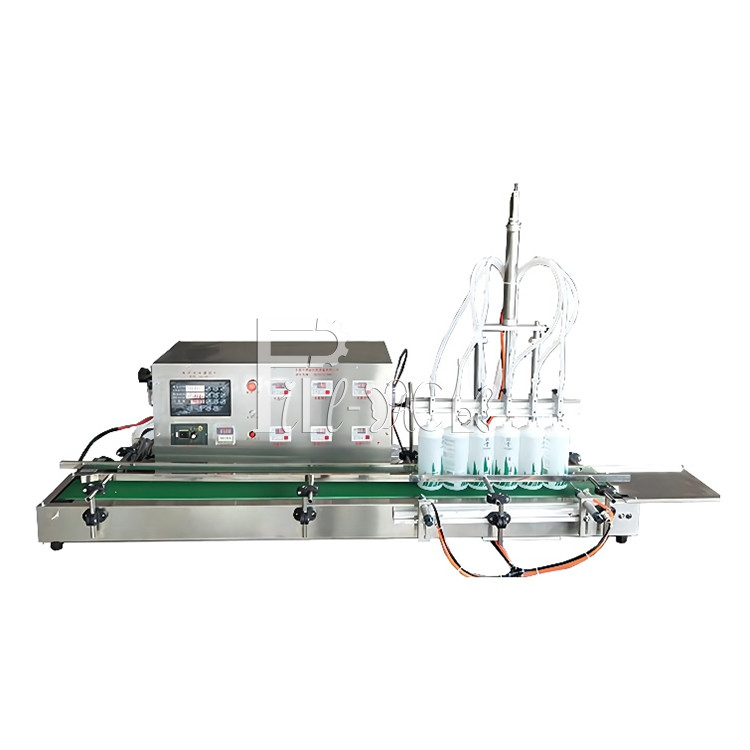

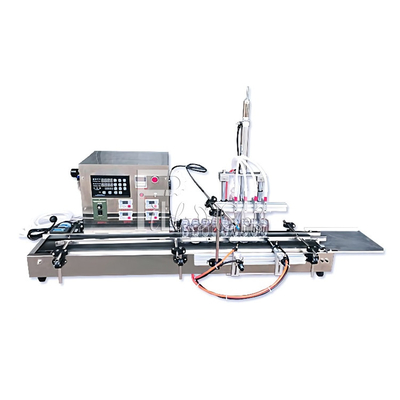

Automatic Desktop Gear Pump Liquid Piston Filling Machine For Perfume Beverage Drinking Water Alcohol

This automatic liquid filling machine adopts gear pump filling, suitable for essential oil, edible oil, water, beverage, daily chemicals, cosmetics etc and other low viscosity liquids. The whole machine is made of high-quality stainless steel, with novel and beautiful appearance. This machine is accurate in measurement, stable in filling and simple in operation. It is a multi-functional liquid filling equipment, which is widely used in medicine, daily chemical, catering, food, beverage and other industries.



The cylinder on the right side of the machine starts to resist the way of the container, the conveyor belt drives the container to slowly move to the right, the bottle is sensed by the sensor, reaching 4/6/8/10 bottles, and the filling is started after a delay of 2 seconds. After filling, the cylinder on the left starts and the top Hold the empty bottle and retract the right cylinder at the same time. After the bottle is full, continue to walk to the right. At this time, the cylinder delay adjuster starts timing. When the time is in place, the right cylinder extends and the left cylinder retracts, and so on.



1. Using the principle of gear pump, the microcomputer controls the measurement and speed to fill the liquid into the container, the measurement is accurate, and it is suitable for various liquids.

2. The filling volume, speed and the time of filling can be designed.

3. Automatic bottle feeding, Photoelectric sensor tracking, automatic induction filling, no bottle no filling, Each filling can be fast first and slow later, bubble can be eliminated.

4. The operation panel is sealed and waterproof, and the parameters can be set at the touch of a button.

5 The pump body is exquisitely designed without tools, easy to disassemble and easy to clean.

6.The machine can be customized so that the filling head can go deep into the bottom of the bottle, while filling, it will rise as the filling volume increases until the end of the filling.
