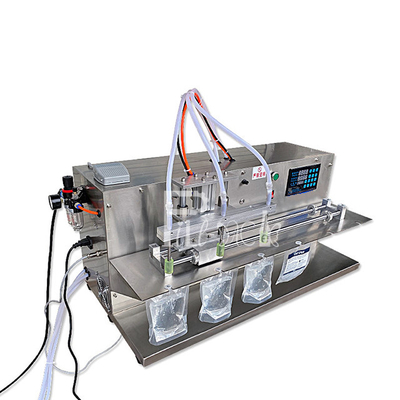

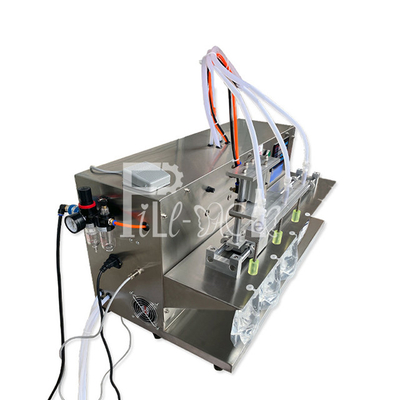

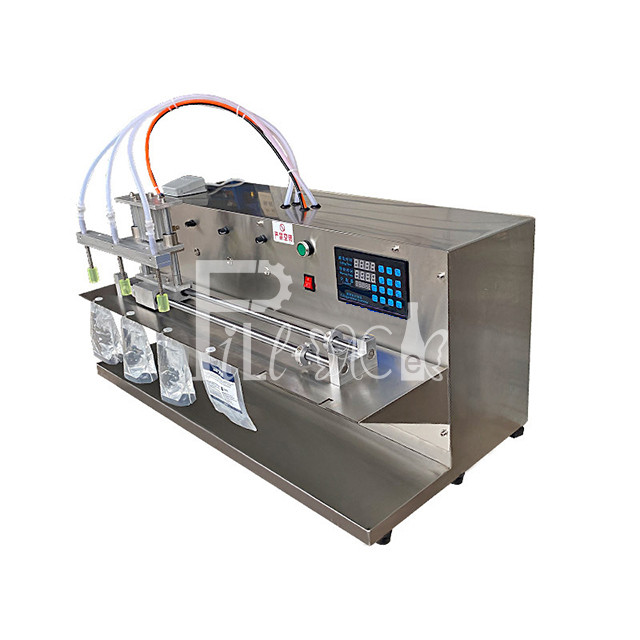

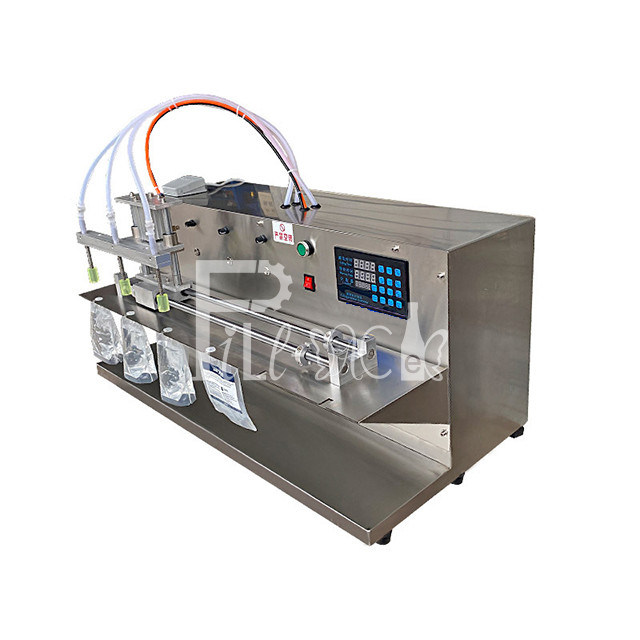

Semi Automatic 4 Nozzles Piston Liquid Filling Machine
Product Details:
| Place of Origin: | ZhangJiaGang City, JiangSu Province, China |
| Brand Name: | FILL PACK |
| Model Number: | QDG-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD315-820 /unit |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Model: | Single Head Liquid Filling Machine | Voltage: | AC220/110V 50/60HZ |
|---|---|---|---|
| Power: | 20W | Air Pressure: | 0.4-0.6mpa |
| Filling Speed: | 5-25BPM | Filling Precision: | ≤±1% |
| Material: | SUS304 | Filling Range Options: | 3-30ml; 10-100ml; 30-300ml; 50-500ml; 100-1000ml; 500-3000ml; 1000-5000ml |
| High Light: | 4 Nozzles Piston Filling Machine,Semi automatic Piston Filling Machine,4 Nozzles Piston liquid Filling Machine |
||
Product Description
Semi-automatic Desk Top 2 / 4 Nozzles Juice / Milk / water Spout Pouch piston Filling Machine electric Liquid Fi
This machine adopts full stainless steel material, electromechanical and electronic control box work together, automated quantitative determination of filling,and automatic counting, a new filing equipment.. Simple structure, convenient operation, and the size of the discharge nozzle could be switched easily, and the rubber tube could be moved easily for filling. It could meet 3500ml and above filling and infinite.( Any adjustment of the filling capacity requirements, it will not be limited by the filling volume,it is a reliable and durable filling equipment.)
Main Features of Semi automatic small self suction pump type fluid stand up pouch filling machine :
1. It has a wide range of applications, and it is more easy to be operated. 2. It is small size and very convenient to use in a limited space 3. Intelligent filling, precise quantification, high filling accuracy, automatic counting, power-off memory. 4.This machine adopts the combination of electric self-suction and air control, cylinder lifting plug-in filling, anti-foaming, high precision. 5. All machine body is made of SUS304. It is easier to clean and more hygeian. 6.The parts in contact with materials are made of food-grade silicon plastic pipes, which are hygienic and high temperature resistant. 7.The filling accuracy can reach 99.5% 8.This machine has reasonable structure, advanced performance, novelty and practicality, and can be customized according to customer needs. 9.This machine is an electric combination, and the customer needs to equip an air compressor (air pump) before it can be used.
