2 4 6 Heads Perfume Vial Oral Liquid Pistion Filling Machine Magnetic Pump Filler
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | LDCLB-2/LDCLB-4/LDCLB-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 450USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Filling Range: | 10ML-5L | Machinery Capacity: | 1440-4320BPH |
|---|---|---|---|
| Filling Material: | Milk, Water, Juice, Alcohol | Flow Rate: | 6L/min |
| Voltage: | 220V (110V Can Be Customized) 2KW | Maximum Suction Lift: | 2m |
| Dimension(L*W*H): | 1500*600*550MM | Weight: | 55KG |
| High Light: | High Output Liquid Pistion Filling Machine,6 Heads Piston Liquid Filling Machine,4 Heads Piston Filling Equipment |
||
Product Description
Automatic 2/4/6 Heads Wholesale High Output Perfume Vial Oral Liquid Pistion Filling Machine Magnetic Pump Filler
General:
This automatic filling machine is equipped with magnetic pump,which can ensure the filling accuracy.The filling speed of each nozzle can be controlled separately. It has compact design, beautiful appearance,wide application field, and it worked with imported parts, so that the the machine has a good performance.The lifting filling nozzle can remove or reduce the bubbles during filling process. The guard rail on the conveyor belt can be adjusted according different bottle. when the detecting sensor detect the bottle, the control system will count and cylinder will block bottle in filling position. The material of magnetic pump is SUS316 and filling nozzle is SUS304, meet GMP standards. Easy to operate and maintain. Suitable for a variety of low viscosity and non-particulate liquids, such as: essential oils, alcohol, eye drops, syrups, makeup removers.
|
Model
|
LDCLB-2
|
LDCLB-4
|
LDCLB-6
|
|
Filling head
|
2 head
|
4 heads
|
6 heads
|
|
Filling flow:
|
6L/min
|
6L/min
|
6L/min
|
|
Filling range
|
10ML-5L
|
||
|
Capacity
|
1440BPH(500ML)
|
2880BPH(500ML)
|
4320BPH(500ML)
|
|
Maximum suction lift
|
2m
|
||
|
Voltage
|
220V (110V can be customized)
|
||
|
Power
|
1KW
|
2KW
|
3KW
|
|
Filling accuracy
|
±0.5%
|
||
|
Machine size
|
1950*800*1500mm
|
1950*800*1500mm
|
1950*800*1500mm
|
|
Packing size
|
2000*820*1850mm
|
2000*820*1850mm
|
2000*820*1850mm
|
|
Machine weight
|
150KG
|
155KG
|
160KG
|
|
Packing weight
|
190KG
|
190KG
|
195KG
|
|
Discharge leakage prevention
|
YES
|
||
|
Power-off memory
|
YES
|
||

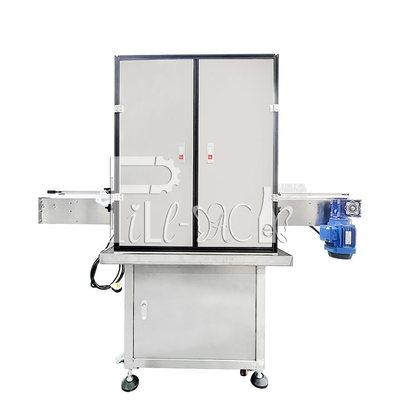

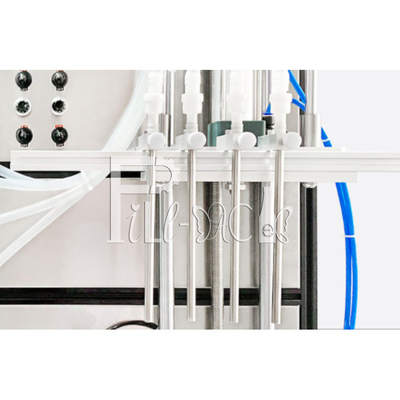

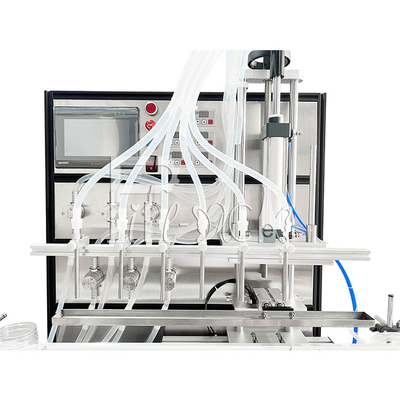

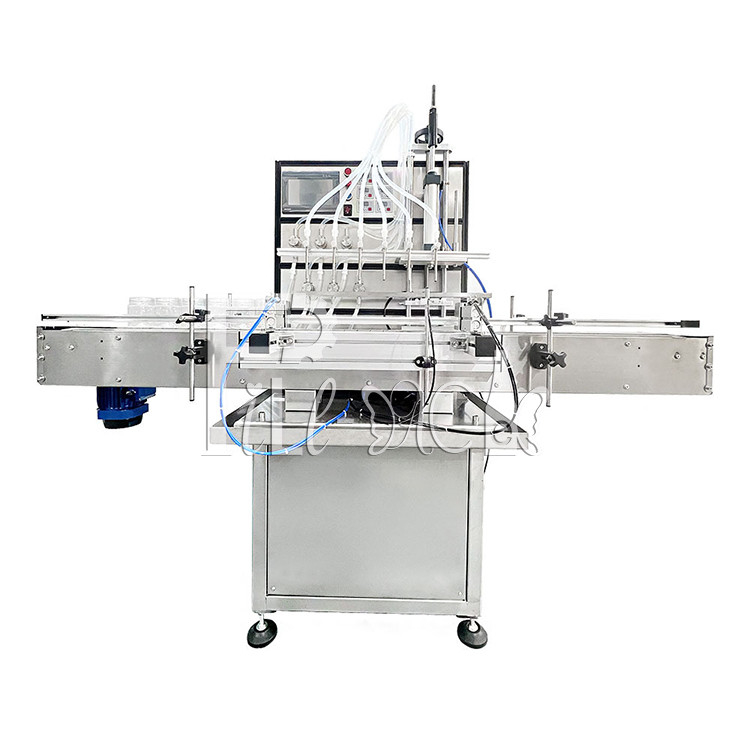

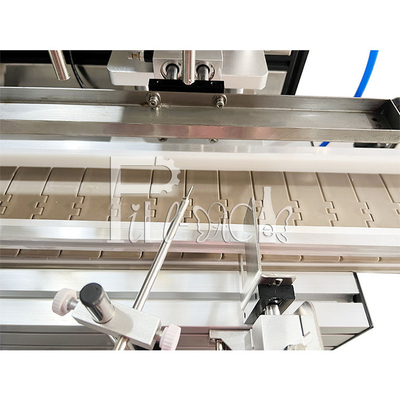

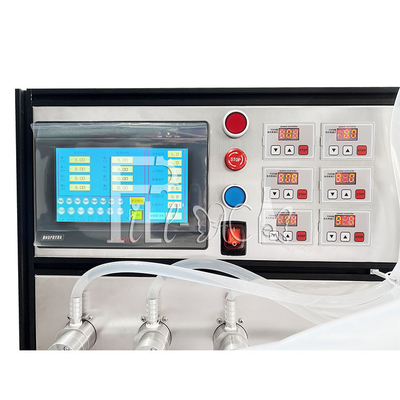

Detailed Images:
