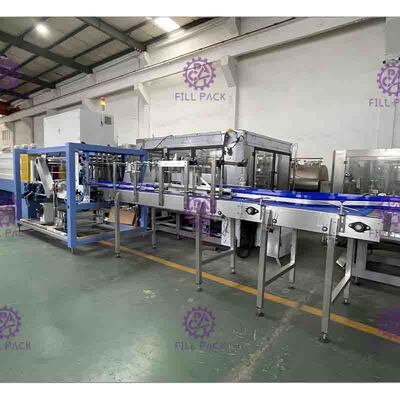

Automatic PLC Bottle Packing Machine , 380V 50/60 HZ Carton Forming Machine

Automatic PLC Bottle Packing Machine , 380V 50/60 HZ Carton Forming Machine

Product Details:

Place of Origin: Mainland, China
Brand Name: FillPack
Certification: CE. ISO
Model Number: YFZX
Automation: PLC contol
Application: Paper pallet forming, packing and shrinking

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Sea worthy package
Delivery Time: 45 days after deposit receipt
Payment Terms: TT/LC/Wertern union
Supply Ability: 1 set/sets/month
Get Best Price Contact Now

Detail Information

High Light:

Sterilizer System

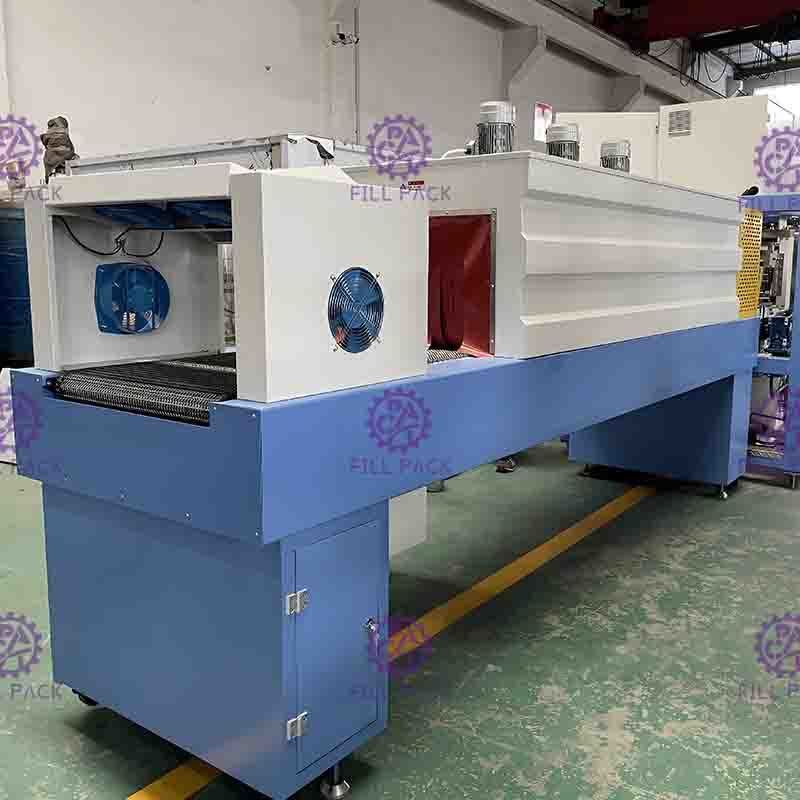

Shrink Packing Machine

Product Description

Automatic PLC Beer Packaging Machine , 380V 50/60 HZ Carton Forming Machine


Quick details:
1, Automatic PLC control
2, High effiency
3, Paper pallet forming, packing, shrinking machine
4, Suitable for cans

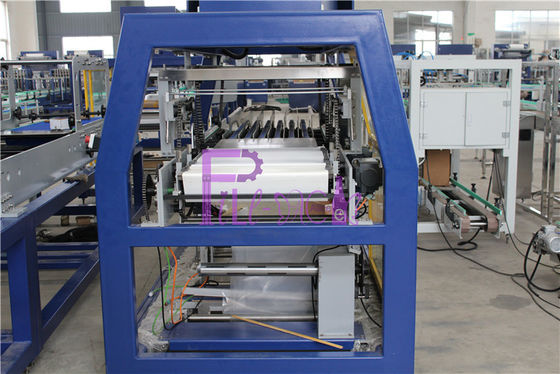

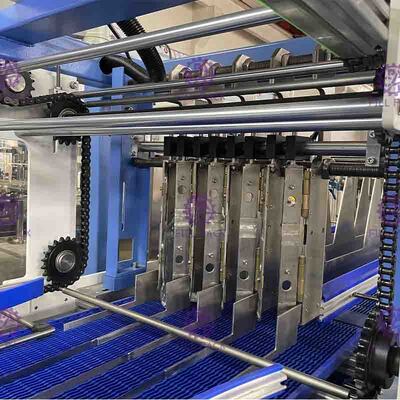

This machine consists of cans inlet transmission parts, tank group parts, carton storage transmission parts, carton forming encapsulation parts, pneumatic parts and electric control parts.
1. Specially design for carton packing for beer, beverage, bottled Water, medicament, food ect bottle production line, carton wrapping saves 1/5 cost than traditional packing type.
2. Machine adopt convergence system and touch screen to control every function of operation, detecting error and display automatically. Convenient for maintenance and efficient.
3. Well- known brand Servo motor and self lubricate lower abrasion chain. Working stably and efficient.

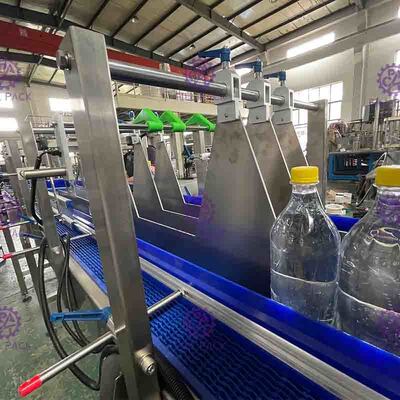

4. Liner feedind bottles and feeding cardboard system, advanced electirc collocation and technology. Configuration easy for operation.
5. Adopt known hot melt equipment, easy to operation, durable. Packing effect is artistic and easy for store and transportation.

Molding carton dimension 550<L+W+H<1000 550<L+W+H<1000 550<L+W+H<1000 550<L+W+H<1000
Capacity 20cartons/min 35cartons/min 45cartons/min 60cartons/min
Power supply capacity 380V,50Hz/13KW three phase 380V,50Hz/13KW three phase 380V,50Hz/16KW three phase 380V,50Hz/22KW three phase
Hot-melt adhesive solidify time 1.5 ~2S 1.5 ~2S 1.5 ~2S 1.5 ~2S
Working air pressure 0.6~0.8Mpa 0.6~0.8Mpa 0.6~0.8Mpa 0.6~0.8Mpa
Bottle height scope 110 ~340(mm) 110 ~340(mm) 110 ~340(mm) 110 ~340(mm)
Bottle diameter scope C 50 ~180(mm) C 50 ~180(mm) C 50 ~180(mm) C 50 ~180(mm)
Machine weight 4500kg 5000kg 7000kg 11000kg
Dimensions 8870L×3000W×1820H(mm) 8870L*3000W*1820H(mm)



Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
