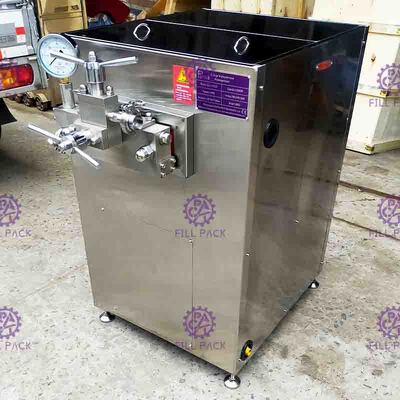

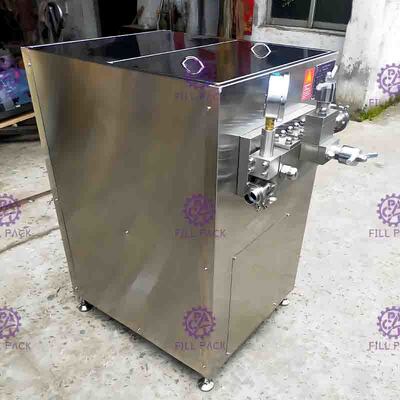

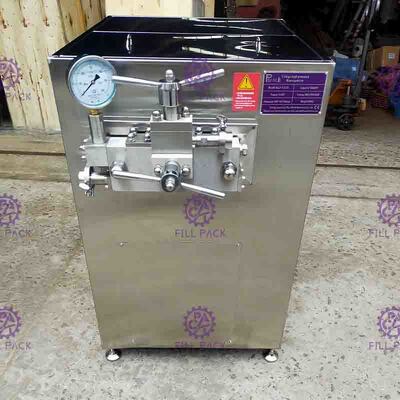

High Pressure Homogenizer Milk Juice Processing Equipment

High Pressure Homogenizer Milk Juice Processing Equipment

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE,ISO
Model Number: JJ 1-25

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case as machine need
Delivery Time: 10-15 days
Payment Terms: 30% T/T deposit, 70% before shipment
Supply Ability: 100 sets/month
Get Best Price Contact Now

Detail Information

Packaging Type: Cast Iron, SUS304,Stellite Material Driven Type: Electric
Certification: CE, ISO Working Pressure: 25Mpa
Application: Used To Break, Homogenizing And Emulsify Fluid Mixing Materials Capacity: 1000L/H
High Light:

beverage processing machine


juice making equipment

Product Description

High Pressure Homogenizer Milk Juice Processing Equipment With Lubrication Cooling System



Quick Detail:


1. Capacity: 1000L/H

2. Working pressure: high pressure 25Mpa

3. Used for juice, milk for fine production

4. Power: 37kw





Working Principle:


The machine consists of homogenization system, transmission system, lubrication cooling system and frame. in working, through the reciprocating motion of the plunger, the single-valve core and valve seat of the pump opens and closes, and form high pressure liquid flow inside. when passing through the tiny gap between the homogenization valve, the high pressure liquid flow receive the action of composite force of high speed impact, grinding, shear, hole and turbulence flow, etc. and realize the fine emulsification and crushing efficacy


Introduction application


This machine is mainly used to break, homogenizing and emulsify fluid mixing materials (liquid mix liquid or liquid mix solid). It is the ideal machine to micromaching liquid for juice, milk, sugar, food, chemical, pharmaceutical and microbial industry.

Main function of homogenizer include: improve homogeneity and stability of products, increase the period of maintenance and reduce reaction time, so as to save the mass of activator and color.


Structure and characteristics


1. The graceful exterior of machine adopts stainless steel wiredrawing normal pattern card packing, which has reached pharmaceutical GMP authentication standard.

2. Pressure control adopts two-stage mechanical pressure regulating. easy to regulate, safe and reliable.

3. Drive system

The machine consists of horizontal type and vertical type. The drive system is composed of one-stage belt type and two-stage type with special speed reduction driving adopted three-plunger and multi-plunger respectively. Dynamic lubrication device consists of pressure oil pump lubricating system and auto-splash lubrication.

driving system cranked axle is made of antifriction ball alloy cast iron under precision work, at the same time ,on the surface of cranked axle adopts international advances laser external quenching process, the surface hardness is HRC55-60,due to netting thread formed, good lubricating status shall be improved enormously and kept, thus, useful life shall be extended

4. made of high-quality stainless steel forged, the pump adopts straight type tee joint structure, which can prevent internal stress from being accumulated, as well as avoid crazing.

5. Homogenization Valve and plunger seals

to satisfy the demands of customers, through improving design of homogenization, not only homogeneous efficiency is improved enormously, but also the products homogenized become more stable


Special ceramic material homogenization valve

the materials are composed of various pottery and porcelain, which suit for rubbing rigid products, cobalt chromium tungsten alloy and tungsten rigid is also optional.


W-type cobalt chromium tungsten alloy homogenization valve

prolonged rotating space of homogenization liquid can reduce energy consumption and produce high efficiency and homogenization efficiency. the two-stage w-type valve is widely used for processing of emulsification separate and suspended matter.


Waviness type special cobalt chromium tungsten alloy valve assembly

according to flux design needed ,it adopts waviness to make cobalt chromium tungsten alloy assembly ,adjusted the gap of homogeneous via moving valve cone and fixed valve seats, it appears radial throttle function between two kinds of fluid, and gets homogeneous fluid. the materials processed are fully homogenous and emulsified.

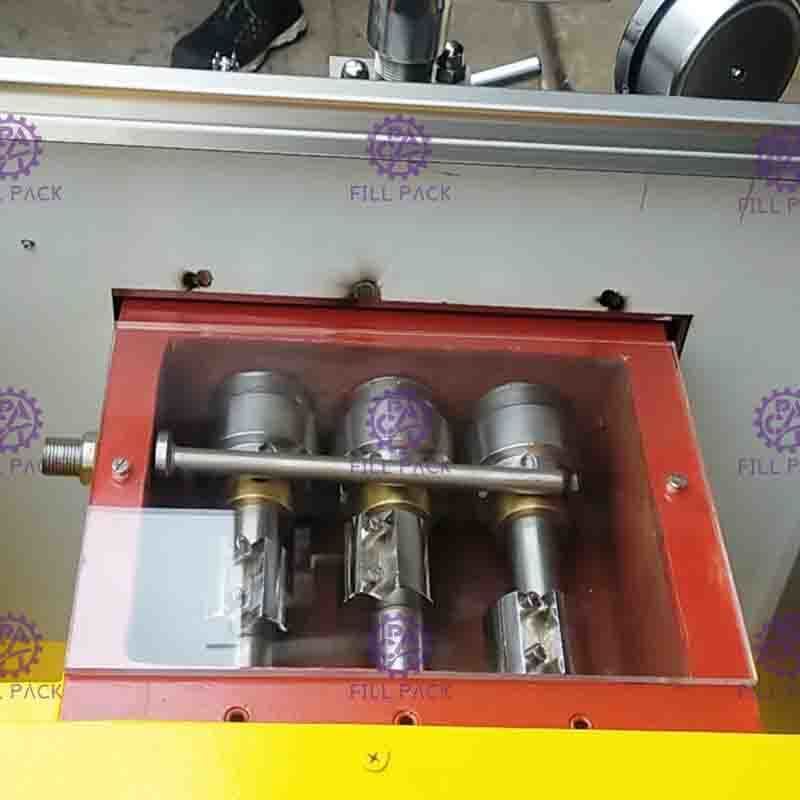

Cobalt chromium material plunger

It adopts cobalt chromium tungsten alloy. It is strong to bear the high pressure and will not be damaged for long time use.



Main Technology data


Model JJ 1-25
Production Capacity 1000L/H
Max working Pressure 25 MPa
Inlet D51 d40 mm
Outlet D38 d30 mm
Viscosity ≤0.2
Temp ≤80℃
Power 37kw
Overall Dimensions 1200*1000*1300mm
Weight 800kg





1, Main Frame, power supply box: cast iron;

2, Outer covering: SUS304;

3, Parts touching liquid: Stellite material;

A, pump chamber and inner turnbuckle: SUS 304

B, the parts except pump chamber and inner turnbuckle: SUS304;


High Pressure Homogenizer Milk Juice Processing Equipment 0
