Automatic mixing Juice Processing Equipment with single layer
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | MT-2000 |
| Application: | Mixing beverage |
|---|---|
| Packaging Type: | SUS304 |
| Driven type: | Electric |
| Certification: | CE, ISO |
| Guarantee time: | 1 year |
| Condition: | New |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case as machine need |
| Delivery Time: | 15 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Voltage: | 380V, 3 Phase, 50HZ | Weight: | 200 Kg |
|---|---|---|---|
| Volume: | 2000L | Thickness: | 2mm |
| Motor Waterproof Rating: | IP54 | Dimension: | ∮1400*2100mm |
| Highlight: | beverage production line,juice making equipment |
||
Product Description

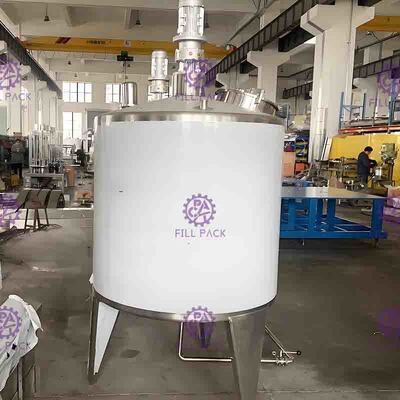

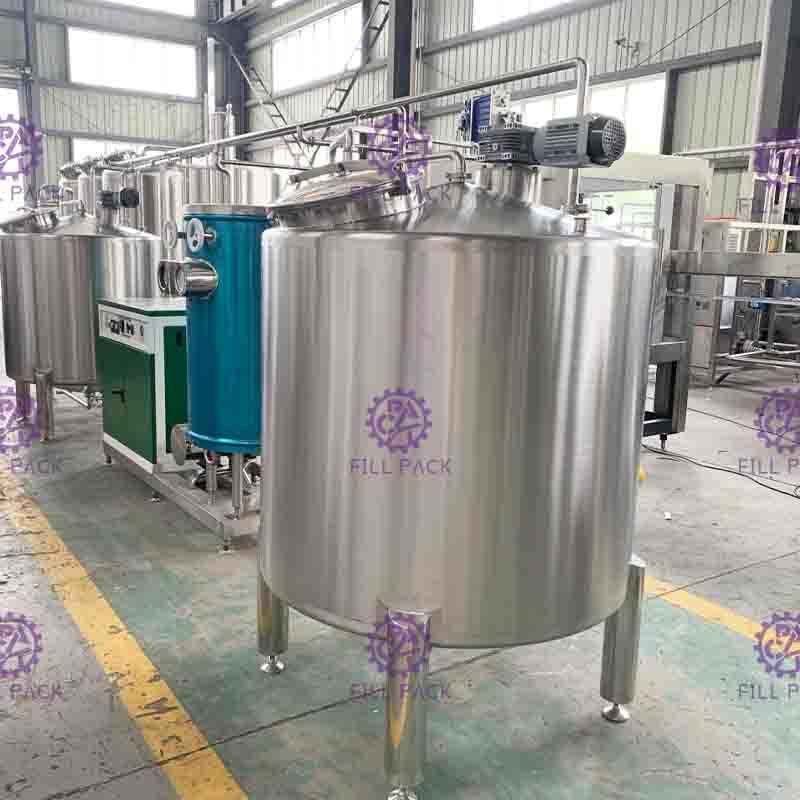

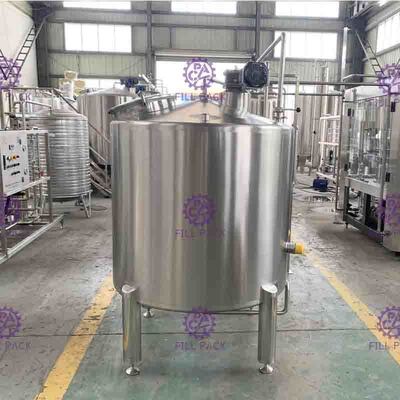

Automatic Juice Processing Equipment Single Layer Stainless Steel 304 Mixing Tank
Quick Detail:
1. Tank volume: 2000L
2. Used to melt the solid sugar to sugar liquid for latter beverage use
3. Material: SUS304
4. Type: single layer with heating function and mixing motor
5. Easy opened top cover
Description:
The type tank is made of SUS304 material, meet with the GMP standard. It’s used to mix various liquid or sauce material, suitable for food, beverage and medical industry. It is with single layer without heating and cooling function. It’s with high frequency welding, smooth and nice on joint line. The tank plate is suitable to endure pressures. The stirring blade will be rotate with the motor driving. Easy to operate and clean.
In the tank top, there is a pipe inlet hole for connecting your liquid source; In the bottom of the tank, there is a outlet hole for connecting your pimp. It’s set with easy opened top cover with manual handle, you can put the sugar or other material to the tank directly from the tank top, it’s with the matched high speed driving motor with reducer, with good mixing effect.
Main construction:
1. Driving motor with reducer and speed adjusting handle ( motor domestic brand)
2. No thermometer
3. SUS304 well mirror polished body;
4. No liquid lever meter
5. SUS304 mixing blades on shaft
6. No bottom blade
7. 3 pcs SUS304 support legs
8. Liquid inlet hole
10. SUS304 mixing shaft
11. Liquid outlet hole
12. Manual handle of side open cover
13. Manual handle of side open cover
Main Technology data:
1. Volume: 2000L
2. Thickness: 2mm
3. Type: Flat easy open top with both sides, flat bottom, single layer.
4. Main material: SUS304
5. Max working temperature: 100℃
6. Motor speed: 1400R/M Speed ratio: 1:15 Mixing shaft speed adjustable: 20-93 R/M
7. Motor power: 1.1KW Voltage: 380V, 3 Phase, 50HZ
8. Motor waterproof rating: IP54
9. Dimension:∮1400*2100mm
10. Weight: 200 kg
