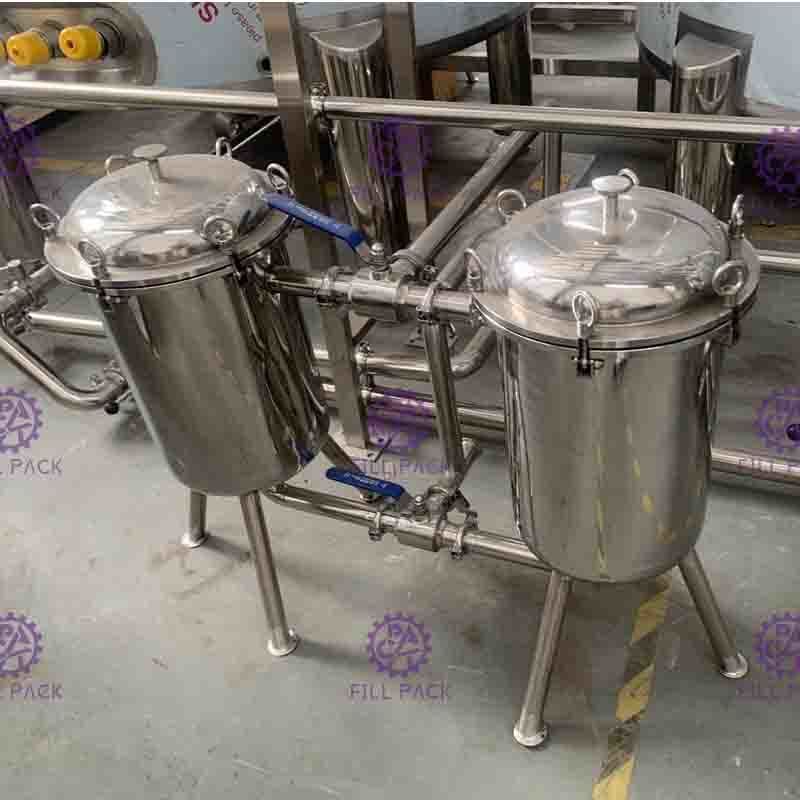

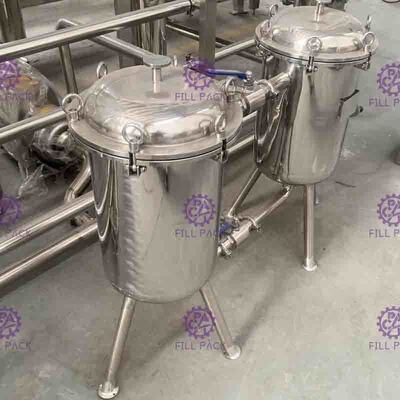

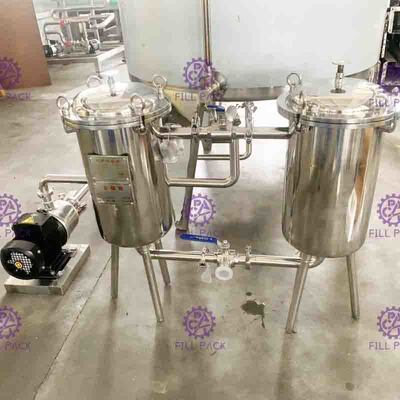

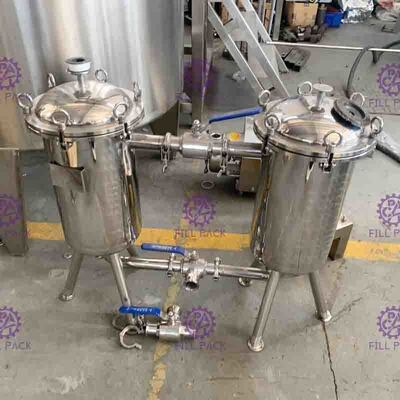

Stainless steel 304 material Juice Processing Equipment double filter for juice processing
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | DF-1 |
| Application: | Filter juice and beverage |
|---|---|
| Packaging Type: | SUS304 |
| Driven type: | Electric |
| Certification: | CE, ISO |
| Guarantee time: | 1 year |
| Condition: | New |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case as machine need |
| Delivery Time: | 7-10 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 100 sets/month |
|
Detail Information |
|||
| Capacity: | 1000L/H | Filter Area: | 0.15m2 |
|---|---|---|---|
| Filter Temperature: | ≤150℃ | Filter Precision: | 5 Um |
| Material: | SUS304 | Filter Bag: | Stainless Steel Filter Bag |
| Highlight: | beverage processing machine,juice making equipment |
||
Product Description
Stainless Steel 200 Mesh Bottle Juice Double Filter For Beverage Making Machine
Quick Detail:
1. Capacity: 1000L/H
2. Material: SUS304
3. Filter mesh: 200 mesh
4. Easy opened top cover
5. Filter bag: Stainless steel filter bag
Description:
This double filter is used to remove and purify every kind of solid impurity which is invisible to the naked eye in the fresh milk, sugar solution and beverage. Two pieces of filter alternate to use, it could change the filter cloth without stopping the machine and is suitable for long term continuous production.
(2) Main technology data
| Capacity | 1000L/H |
| Filter area | 0.15m2 |
| Filter temperature | ≤150℃ |
| Filter precision | 5 um |
| Material | SUS304 |
| Filter bag | Stainless steel filter bag |
| Using pressure | 0.2Mpa |
| Pipe diameter of inlet | ￠38mm |
| Pipe diameter of outlet | ￠38mm |
| Dimension(L*W*H) | 700*300*800mm |
(3) Structure and principle of the machine
The machine is made of two cylinders with SUS304 material. It adopts the stainless steel welded construction, surface polish internal and external and air discharge valve in the top for discharging air convenient during the production.
The pipe fitting adopts the expansion connection and is tested by 0.3Mpa water pressure. The start and close of three-way screw spiral cock is flexible. The machine has compact structure, easy operation and convenient maintenance.
(4) Flow chart
| Sign | Connecting surface | Specification | Use |
| A | Clamp | DN38 | General material inlet |
| B | Clamp | DN38 | Material inlet |
| C | Clamp | DN38 | Material outlet |
| D | Internal screw | DN15 | Air exhaust port |
| No | Name | Quantity | Material |
| 1 | Air exhaust valve | 1 | SUS304 |
| 2 | Machine Cover | 1 | SUS304 |
| 3 | Gasket | 1 | |
| 4 | Perforated plate | 1 | SUS304 |
| 5 | Filter cloth | 1 | 5 um |
| 6 | Plug vale | 1 | SUS304 |
| 7 | Machine body | 1 | SUS304 |
| 8 | Machine supports | 3 | SUS304 |
