• SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L
  • SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L
SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L

SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L

Product Details:

Place of Origin: ZhangJiaGang,JiangSu,China
Brand Name: FILL PACK
Certification: CE / ISO9001 - 2008
Model Number: 50-600L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD900-2470/SET
Packaging Details: wooden case
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 50 sets/month
Get Best Price Contact Now

Detail Information

Heating Method: Electrical Coil Heating/steam/gas Material: SUS304
Type: Vertical/Tiltable Layer: 2-3
High Light:

steam jacketed kettle with agitator

,

3 layer double jacketed steam kettle

,

200L double jacketed steam kettle

Product Description

Gas burning jacketed kettle / pan / layered cooking sauce food pot with agitator / Tilting Pot Heating Mixing Industrial​



General:

The system is composed of boiler and stand. The boiler is double layer ball, Natural gas,coal gas, and liquefied gas can be used as heat sources, and the gas is led to the gas stove through the inlet, and it is heated after being ignited.

Gas burning jacketed kettle is suitable for cooking food, boiling syrup, frying vegetables, condiments, medicinal materials and baking, etc. It is often used for heating, stirring and frying in the process of catering and food processing or chemical pharmacy.


Characteristics:

A: heating area is big, high heating efficiency; B: boiling time short, heating temperature average and easy to control; C: design temperature is 300-500℃,more suitable for high temperature frying.
Structure:Vertical type,Tiltable type; Sealing type: easy open top; Material: Inner boiler -SUS304,Outer boiler- SUS304; Heating medium:Natural gas, liquefied gas
SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L 0

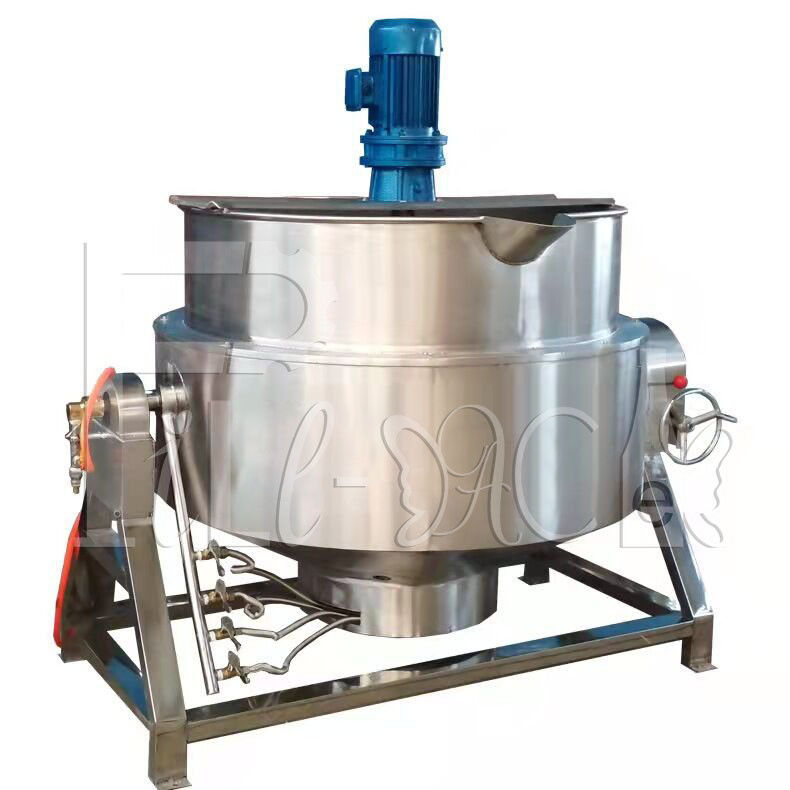

Tiltable type

SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L 1

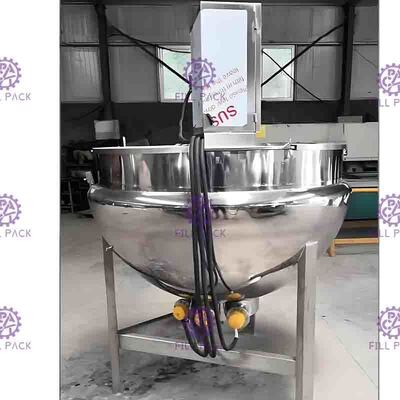

Vertical type without motor for ref.

Parameter

Capacity
50L
100L
200L
300L
400L
500L
600L
Heating method
Gas heating
Outer layer (mm)
3
inner layer (mm)
3
3
3
3
4
4
4
Material
SUS304
Max. pressure of jacket
0.29Mpa
Max. temperature
300-500℃
Pan depth(mm)
400
500
400
450
500
550
600
Pan diameter (mm)
500
700
800
900
1000
1100
1200
Total height (mm)
1200
1250
1350
1450
1500
1550
1650
Motor power (KW)
0.37
0.55
0.75
1.5
1.5
1.5
2.2
Motor speed (rpm)
24
Gas consumption
3
4.5
5
6
6.5
7
7
SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L 2

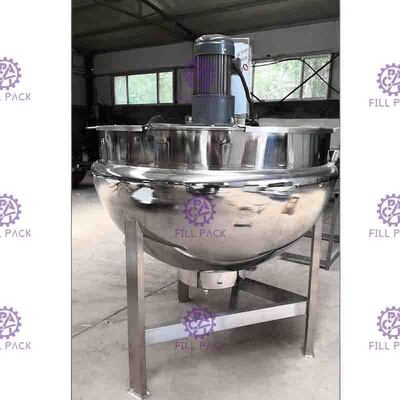

Top construction(Tiltable type)
SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L 3
Inside mixing construction with heat
resistant plate(Tiltable type)
SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L 4

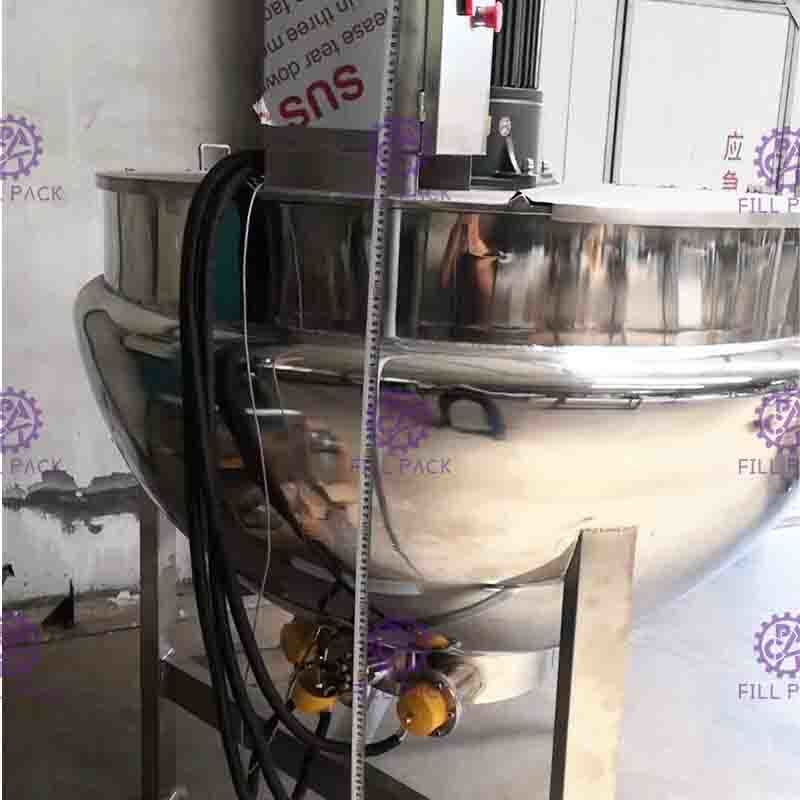

Food standard SUS304 inside polishing
SUS304 3 Layer Steam Double Jacketed Kettle With Agitator 200L 5

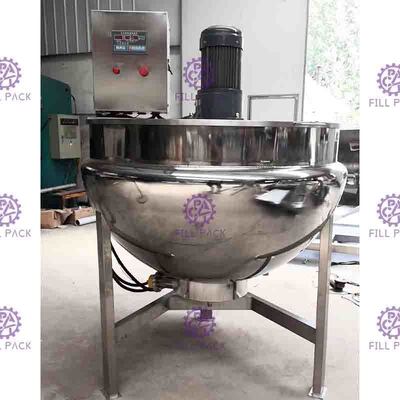

rock cotton insulation jacket



The system is composed of boiler and stand. The boiler is double layer ball, Natural gas,coal gas, and liquefied gas can be used as heat sources, and the gas is led to the gas stove through the inlet, and it is heated after being ignited.

Gas burning jacketed kettle is suitable for cooking food, boiling syrup, frying vegetables, condiments, medicinal materials and baking, etc. It is often used for heating, stirring and frying in the process of catering and food processing or chemical pharmacy.
