Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice

Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice

    • Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice
    • Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice
    • Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice
    • Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice
  • Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: MT-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case as machine need
    Delivery Time: 15 days
    Payment Terms: 30% T/T deposit, 70% before shipment
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304/316 For All Machines Driving Type: Electric Type
    Processing Type: To Make Various Juice Capacity: 500L In Minimum
    Condition: New Guarantee Time: 1 Year

    Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice







    Model Number: MT-2

    Application: Bottled and canned juice

    Automatic grade: automatic

    Packaging Type: Bottle or can.

    Power: Specified as machine

    Driven type: Electric

    Certification: CE, ISO

    Guarantee time: 1 year

    Condition: New

    Voltage: Customised





    Quick Detail:



    1. Capacity: 2000L/H

    2. For mixing and sterilizing juice

    3. Main material: SUS304 / SUS316

    4. Treating from the fruit juice powder.





    Description:

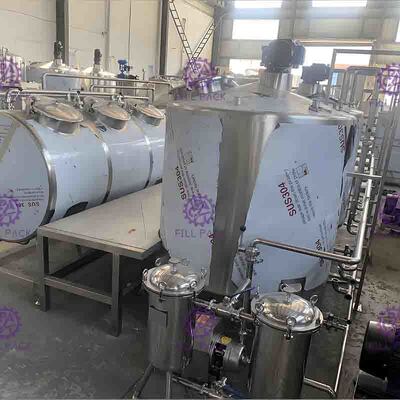

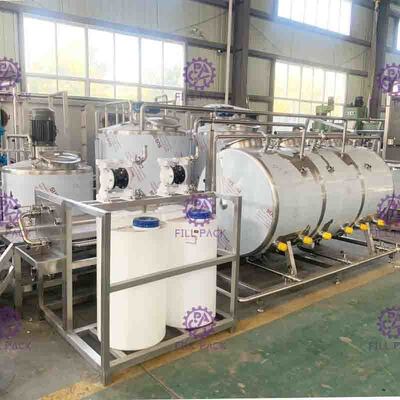

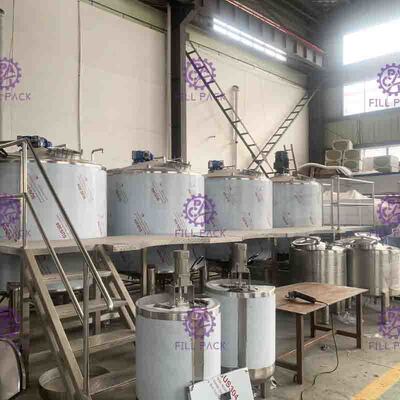

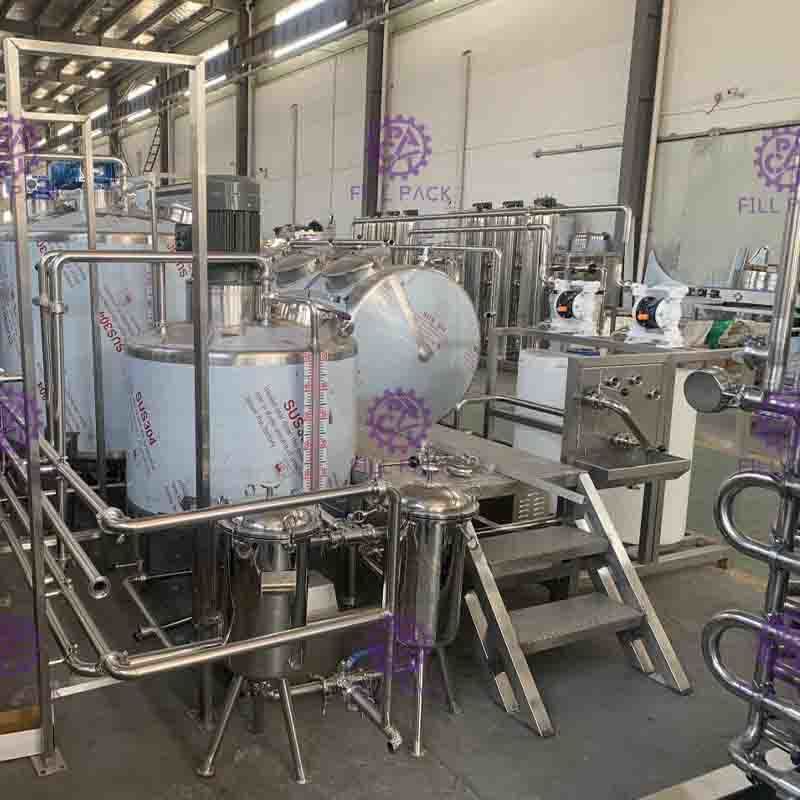

    The follow juice processing line is used to mix the juice powder for juice drink, and then make filter, homogenizer and sterilization for bottle or can filling.







    1. Juice mixing tank:



    The tank is all made of SUS304 material, is mainly used to mix syrup, juice powder and water for juice drink with the motor driving stirring function. Normally it’s single layer without heating and cooling function, if need heating function, we can also make it. You can manual put the material into tank for mixing, or pumped by the pump.





    2. Double filter:

    This machine is used to remove and purify every kind of solid impurity which is invisible to the naked eye in the fresh milk, sugar solution and beverage. Two pieces of filter alternate to use, it could change the filter cloth without stopping the machine and is suitable for long term continuous production.





    3. High pressure homogenizer:



    This machine is mainly used to break, homogenizing and emulsify fluid mixing materials (liquid mix liquid or liquid mix solid). Main function of homogenizer include: improve homogeneity and stability of products, increase the period of maintenance and reduce reaction time, so as to save the mass of activator and color. It is the ideal machine to micromaching liquid for juice, milk, sugar, food, chemical, pharmaceutical and microbial industry.









    4. Ultra high temperature instantaneous sterilizer



    This ultra high temperature instantaneous sterilizer is suitable for sterilizing the liquid material, such as juice, fresh milk, fruit milk, tea, wine, soybean milk and Chinese medicine, as well as the sticky material (for example, sweat condensed milk). It is with coil tube type heating system, heated by steam, so here you need to set with a steam boiler or other machine for supplying needed steam.



    After this machine, the juice can be stored in a tank or connect the filling machine directly, which is hot juice for filling.





    Powder Concentrate Juice Processing Machine Electric Driven For Sterilizing Juice

    please kindly click the play button to watch the video
