500BPH Semi Auto Blow Molding Machine 180mm Wide Neck 2 Cavity For PET Bottle
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | FP-1200AW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6700USD |
| Delivery Time: | 15 Working Days After Deposit |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Output: | 700BPH | Cavity: | 2 |
|---|---|---|---|
| Mould Moving Trip: | 160mm | Mould Thickness: | 110-230mm |
| Max Container Caliber: | 100mm | Max.container Diameter: | 120mm |
| Main Machine Size: | 1630*620*1590mm | Heater Installation Power: | 14KW |
| High Light: | 500BPH Blow Molding Machine,180mm Blow Molding Machine,Blow Molding Machine For PET Bottle |
||
Product Description
500BPH 1+1 Semi-Auto 0-180mm Wide Neck Plastic Or PET Bottle 1 Cavity Blow Molding Machine
Descriptions:

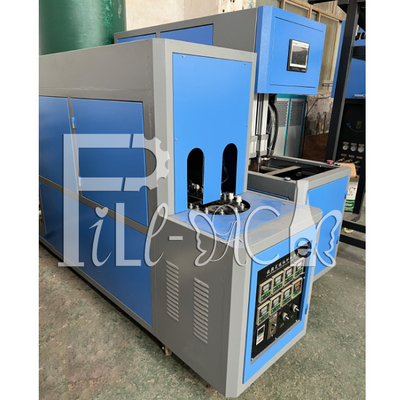

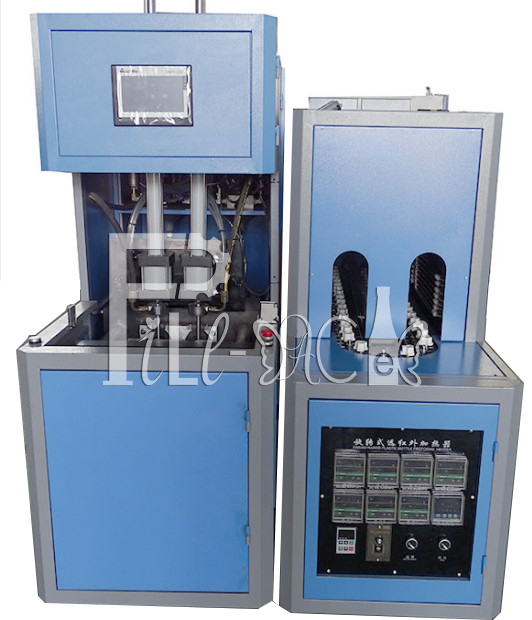

Semi-automatic PET bottle blow molding machine is suitable for producing PET plastic containers and bottles.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate.
Main parameter:
| Product material | PET |
| Volume | 0-2L |
| Output | 700BPH |
| Cavity | 2 |
| Mould moving trip | 160mm |
| Mould thickness | 110-230mm |
| Max container caliber | 100mm |
| Max.container diameter | 120mm |
| Main machine size | 1630*620*1590mm |
| Main machine weight | 500kg |
| Heater installation power | 14kw |
| Heater size | 1780*570*1380mm |
Details:
