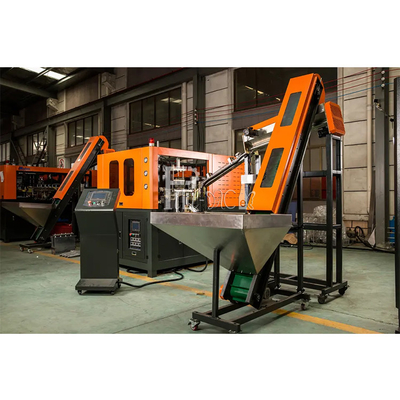

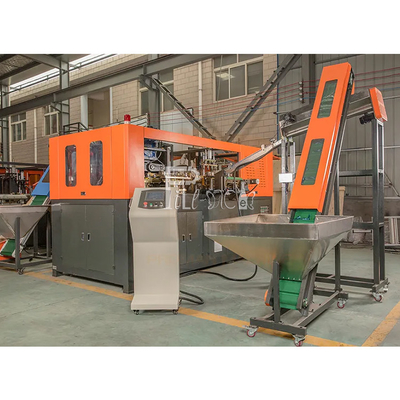

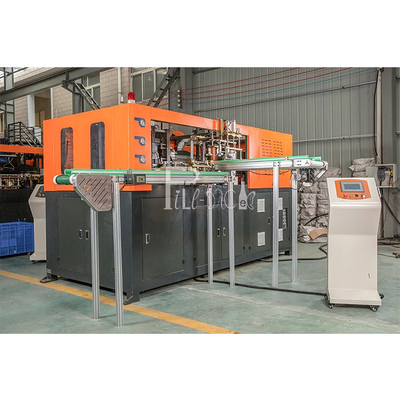

Full Automatic PET Jar Bottle Blowing Machine 2 Cavity Mouth Candy With Preform Hand Feeding
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | FP-1200W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SETS |
|---|---|
| Price: | 30000USD |
| Packaging Details: | Wooden Case Packing |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Volume: | 2-5L | Theoretical Output: | 1200BPH(5L) |
|---|---|---|---|
| Max.Preform Length: | 360MM | Preform Inner Diameter: | Φ5-38MM |
| Max. Mould Plate Dimension (L X W): | 350×380MM | Max.mould Thickness: | 240MM |
| Clamping Force: | 45KN | Mould Opening Stroke: | 210MM |
| Main Machine: | 256×200×203cm | Preform Loader: | 200×135×255cm |
| Main Machine Weight: | 2580kg | Power: | 5KW |
| High Light: | ISO Automatic PET Jar Bottle Blowing Machine,2 Cavity Bottle PET Blowing Machine,1200BPH Bottle PET Blowing Machine |
||
Product Description

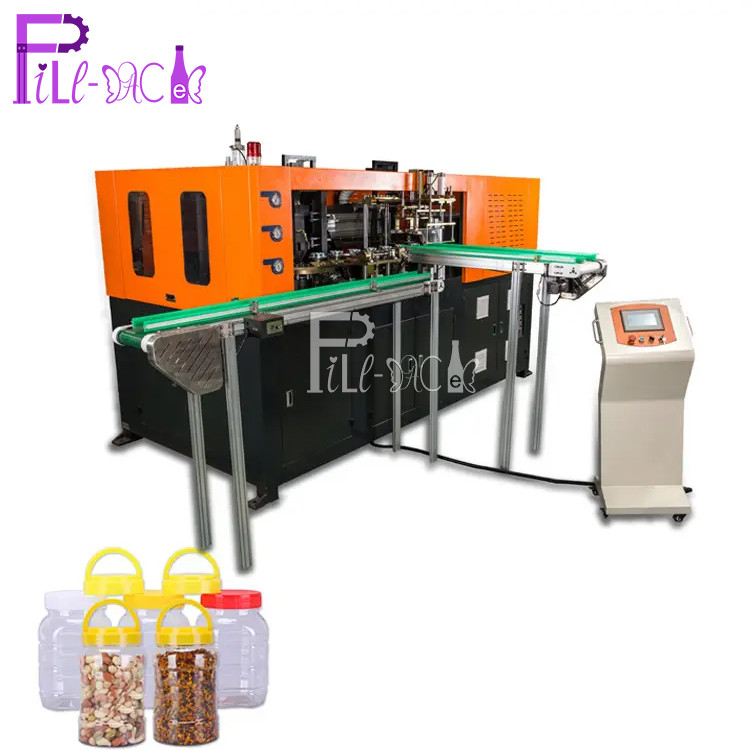

Full automatic 2 cavity wide mouth candy jar blowing machine PET bottle making machine with preform hand feeding
FP-1200W type Automatic blow molding machine is suitable for blowing wide max neck size 100mm PET bottles volume from 2000 ml to 5000 ml, wide application for blowing plastic jars
1 .Adopts advanced microcomputer control system, stable performance, the conveyor automatically send embryo;
2, Use infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable;
3, Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel;
4, Each machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state;
5, All the action driven by the cylinder, do not use motors, with no pollution, low noise;
6, Air supply channel design divided into operation and air blowing etc three parts, meet the needs of the different pressure of the blowing action;
7, Cooling system to achieve the desired cooling effect; the bottle scrap rate less than 0.2%.
Technique Parameter of blow molding machine:
| Container | Product material | PET |
| Volume | 2-5L | |
| Theoretical output | 1200BPH(5L) | |
| Max.Preform length | 360mm | |
| Preform inner diameter | Φ5-38mm | |
| Moulding |
Max. mould plate dimension (L x W) |
350×380mm |
| Max.mould thickness | 240mm | |
| Clamping force | 45KN | |
| Mould opening stroke | 210mm | |
| Machine size and weight | Main machine (L x W x H) | 256×200×203cm |
| Main machine weight | 2580KG | |
| Preform loader(L x W x H) | 200×135×255cm | |
| weight | 550KG | |
| Power | 5KW |
Components
| Item | Description | Brand | Origin |
| 1 | PLC controller | DELTA | Taiwan |
| 2 | Touch screen | DELTA | Taiwan |
| 3 | Pneumatic components | FESTO | Germany |
| 4 | Pneumatic components | AIRTAC | Taiwan |
| 5 | Photoelectric signal switching | OMRON | Japan |
| 6 | Control button | OMRON | Japan |
| 7 | Air switch | DELTA | Taiwan |
| 8 | Electromagnetic valve | PMC | Korea |
| 9 | High pressure muffler silencer | SMC | Japan |
Details:
Preform inlet part

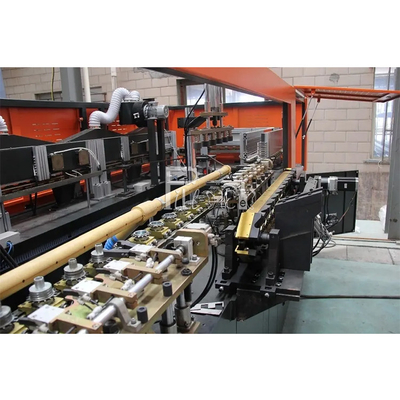

Heating Section

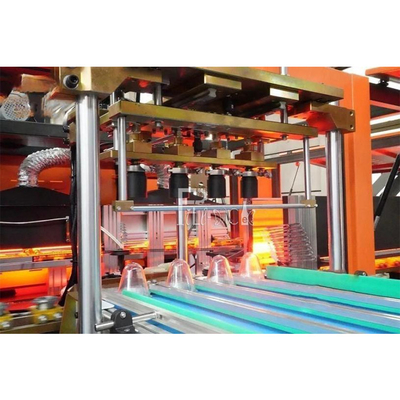

Clamping mold
Bottle outlet
