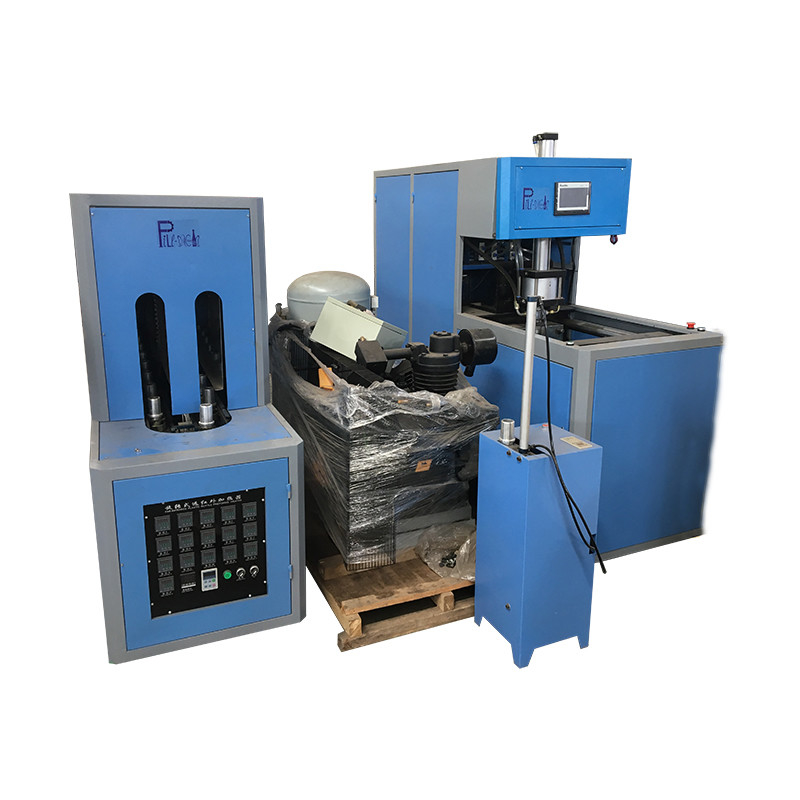

3gallon Bottle Blow Molding Machine / Barrel Blowing Equipment / Bucket Making Device
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | FP-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 100USD |
| Packaging Details: | Cartons |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Theoretical Output: | 120BPH |
|---|---|---|---|
| Number Of Cavity: | 1 | Item Type: | Bottle Blow Moulding Equipment |
| Clamping Force: | 60KN | Total Power: | 40KW |
| Highlight: | 3gallon bottle blow molding machine,120BPH Bucket Making Device,bottle Barrel Blowing molding Equipment |
||
Product Description
Product Description
3-5 gallon bottle blow molding machine / barrel blowing equipment / bucket making device
Trait:
FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and iswidely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.
* Perfect function with economic investment.
* Small size and compact construction with no space waste.
* Easy to operate and maintain ,operation by one person .
* Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing
high pressure blowing system.
* We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s
* We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s
requirements
|
Main parameter
|
||
|
Model
|
FP-120
|
|
|
|
Product material
|
PET
|
|
Volume
|
10L-20L(3-5Gallon)
|
|
|
Output
|
150PCS/H
|
|
|
Max bottle length
|
430mm
|
|
|
Max bottle diameter
|
300mm
|
|
|
|
Stretching stroke
|
450mm
|
|
Clamping force
|
60KN
|
|
|
Mould opening stroke
|
360mm
|
|
|
|
Main machine (L x W x H)
|
2350*750*1900mm
|
|
Main machine weight
|
1500Kg
|
|
|
Heater (L x W x H)
|
2670*680*1650mm
|
|
|
Heater weight
|
380Kg
|
|
|
Power
|
40KW
|
|
Features
1. Perfect function with economic investment.
2. Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
3. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
4. Satisfaction with different Max bottle lengthpressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
5. Strong clamping force with high pressure and double crank links to lock the mold.
6. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to
understand.
7. Low cost, high efficiency, easy operation, easy maintenance, etc.
8. Ideal effect of the chilling with the chilling system.
9. Easy to operate and maitain, operation by one person.
10. Adopting double crank to adjust mould, heavy locking mould, stable and fast, adopting infrared oven to heat the perform, the perform rotated and heated equally.
11. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements
for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
12. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
13. The machine can be operated in the step-by-step mode and the semi-auto mode.
14. The machine is small with low investment, easy and safe to operate.
15. The bottle rejection rate is less than 0.2%.
1. Perfect function with economic investment.
2. Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
3. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
4. Satisfaction with different Max bottle lengthpressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
5. Strong clamping force with high pressure and double crank links to lock the mold.
6. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to
understand.
7. Low cost, high efficiency, easy operation, easy maintenance, etc.
8. Ideal effect of the chilling with the chilling system.
9. Easy to operate and maitain, operation by one person.
10. Adopting double crank to adjust mould, heavy locking mould, stable and fast, adopting infrared oven to heat the perform, the perform rotated and heated equally.
11. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements
for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
12. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
13. The machine can be operated in the step-by-step mode and the semi-auto mode.
14. The machine is small with low investment, easy and safe to operate.
15. The bottle rejection rate is less than 0.2%.
|
Model
|
Item
|
Unit
|
FP-1200A
|
FP-1200B
|
FP-500
|
FP-500II
|
FP-120
|
FP-1200N
|
|
Molding
|
Clamping force
|
kg
|
13000
|
13000
|
25000
|
45000
|
6000
|
13000
|
|
Clamping stroke
|
mm
|
155
|
155
|
220
|
220
|
360
|
155
|
|
|
Stretcing stroke
|
mm
|
370
|
370
|
400
|
400
|
450
|
370
|
|
|
Bottom stroke
|
mm
|
/
|
/
|
/
|
/
|
/
|
/
|
|
|
Canity pitch
|
mm
|
130
|
130
|
130
|
300
|
/
|
130
|
|
|
Number of Cavity
|
Cavity
|
2
|
2
|
1
|
2
|
1
|
2
|
|
|
|
Max.container volume
|
Itr
|
2
|
2
|
6
|
6
|
20
|
1.5
|
|
Neck.container range
|
mm
|
10-120
|
10-120
|
10-120
|
10-120
|
30-120
|
10-120
|
|
|
Max.container diameter
|
mm
|
130
|
130
|
200
|
120
|
300
|
90
|
|
|
Max.container height
|
mm
|
350
|
350
|
380
|
200
|
430
|
350
|
|
|
Carriage unit
|
pcs
|
72
|
96
|
72
|
96
|
19
|
72
|
|
|
Theoretical output
|
bph
|
1200
|
2400
|
500
|
1000
|
150
|
600
|
|
|
|
Total power
|
kw
|
17
|
17
|
17
|
17
|
39
|
17
|
|
Heating power
|
kw
|
16
|
16
|
16
|
16
|
38
|
16
|
|
|
Max.herating power
|
kw
|
8
|
8
|
10
|
10
|
20
|
10
|
|
