3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control

3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control

    • 3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control
    • 3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control
    • 3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control
    • 3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control
  • 3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: wooden case package
    Delivery Time: 20 Working Days After Deposit
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 Sets Per Months
    Contact Now
    Detailed Product Description
    Condition: New Automatic Grad: Automatic
    Bottle Size: 0.2-2L Bottle Type: PET Bottle
    Warranty: 1 Year Machine Structure: Rinsing, Filling, Capping 3 In 1 Unit

    3 in 1 Monoblock Bottle Filling Machine Non-carbonated Drink With PLC Control





    Quick Detail:



    Structure Washing, Filling and capping 3 in 1 unit
    Capacity  8000BPH
    Pressure Normal pressure
    Bottle type 0.2-2L plastic bottle
    Cap type Plastic screw caps
    Filling material Non-gass beverage





    Features:

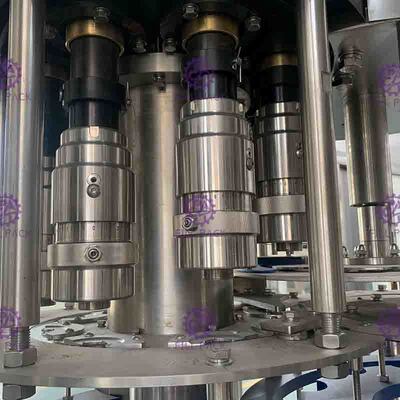

    1,Filling valve adopts high precision mechanical filling valve,with the character of no bottle no vacuum

    pumping.

    2, Open Gear combinated gear box transmission ,with onoff device ,Frequency conversion velocity

    modulation devices extend the speed modulating scope .

    3,This machine has self oil lubrication device ,so that the lubrication points could be lubricated regularly

     in time .the machine of high efficiency ,low noise and long life .

    4, Centering guide is of double guide bar type ,with the function of pre-covering .

    5,Wine jar and capping head are driven by manual ,also can be driven by electricity to fit different sizes

     of bottles .

    6, The material height in the tank is controlled by electric probe to assure precise liquid level .





    Description:



    This series of machines are used for packing the pure watermineral waterjuicebeverage etc. By PET bottles.

    The washing, filling and capping 3 kinds of jobs will be finished just by this one machine. It is very

    convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--

    bottleneck clamping & bottle suspending technology. Advanced programmable PLC is equipped to

    control the main machine. Main electronic components are all from famous international enterprises

    . All spare parts that may touch with water are made from high-quality stainless steel.





    Specifications:



    Model CGF8-8-3 CGF12-12-4 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Washing Head No 8 12 18 24 32
    Filling Head No 8 12 18 24 32
    Capping Head No 3 4 6 8 10

    Rated

    Capacity

    (500ml)

    3000BPH 4000BPH 5000-7000BPH 8000-12000BPH 12000-15000BPH
    Overall Size

    1900*1420*

    2000mm

    2200*1600*

    2300mm

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 1.5T 2.2T 3.0T 4.0T 8.0T

    Power

    (KW)

    3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized Customized Customized





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only

    one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project
