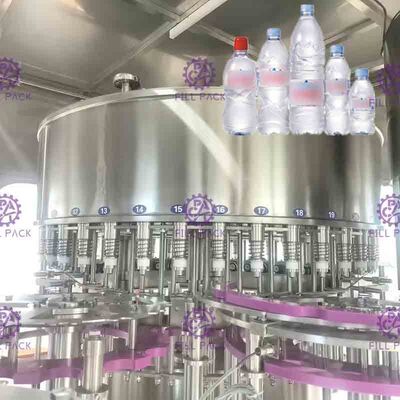

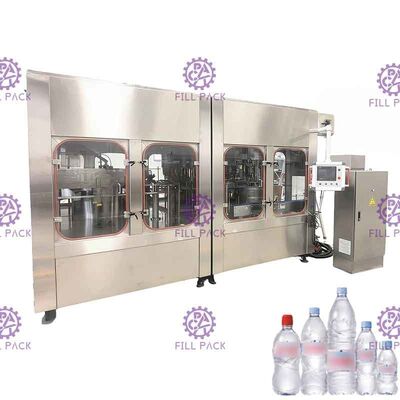

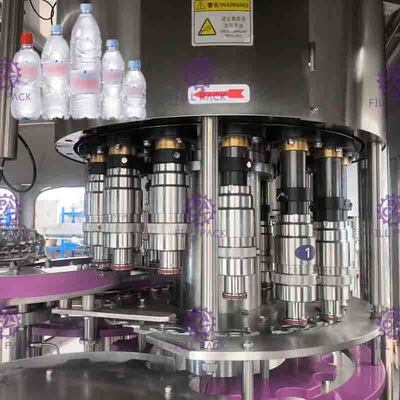

Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System

Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System

    • Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System
    • Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System
    • Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System
    • Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System
  • Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO
    Model Number: CGF32-32-10
    Control: PLC Control With Touch Screen
    Processing: Japan & Germany
    Capacity: 12000-15000BPH
    Electrical Brand: Mitsubishi, OMRON, SIEMENS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 12000-40000USD
    Packaging Details: Wooden Case Package for bottle filling line
    Delivery Time: 30 Working Days for bottle filling line
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 20 Sets Per Year
    Contact Now
    Detailed Product Description
    Processing Type: Bottle Filling Line Material: Touch Parts SUS304/SUS316
    Machine Structure: Monoblock Machine Filling Type: Normal Pressure Filling
    Cap Style: Plastic Screw Cap Electrical Brand: Mitsubishi, OMRON, SIEMENS



    Stainless steel flange aspetic bottle filling line double cap system



    Quick Detail:



    Processing type Bottle filling line

    Machine structure

    Integrate washer, filler, capper in one unit

    Filling type

    Bottle filling line / normal pressure filling machine

    Bottle type

    15000BPH plasic bottles

    Cap type

    Bio cap system: plastic screw cap & sport cap

    Control manner PLC control and touch screen



    Description:

    Bottle filling line is one of the most pupular and marketbale filling machines in our factory. It is used to fill mineral water, pure water and another non-carbonated drink into plastic bottles with screw caps.



    We now have the high speed water filling machine with less filling head, but high capacity.

    The bottle filling line is suitable for filling water, fresh juice etc.

    The bottle filling line is designed and made basing on client's final filling speed, bottles and caps.








    Characteristics:



    Machine structure Filling type & speed Material Controlling system

    - Washer, filler, capper in one unit


    - More compact


    - Ring type water cylinder - No residual


    - Rotary type filling machine



    - Bio cap system of sport cap and plastic screw cap


    - Top covered by stainless steel 304


    - UV lamb inide for killing bacteria


    - Low labor

    - More precise



    - High capacity


    - Normal pressure filling machine



    - No bottle, No filling

    - Stainless steel 304


    - Contact parts: Stainless steel 316


    - Pipe & valve connection: food grade seamless pipe

    - PLC cntrol


    - Touch screen


    -  Solenoid valve



    - Light sensor


    -  Low labor



    Electric parts configurations
    :



    Electric parts description Brand
    PLC Mitsubishi / Siemens / Customize
    Touch screen Delta / Siemens / Customize
    Frequency converter Shilin / Siemens / Customize
    Contactor Schneider / Customize
    Air switch Schneider / Customize
    Light sensor Autonics / Omron





    Specifications:


    Model

    CGF8-8-3

    CGF12-12-6

    CGF18-18-6

    CGF24-24-8

    CGF32-32-10

    Rinsing Head No

    8

    12

    18

    24

    32

    Filling Head No

    8

    12

    18

    24

    32

    Capping Head No

    3

    6

    6

    8

    10

    Rated
    Capacity
    (500ml)

    2000BPH

    4000BPH

    7000-8000BPH

    10000-15000BPH

    15000-20000BPH

    Overall Size

    1900*1420*
    2000mm

    2200*1600*
    2300mm

    2450*1900*
    2300mm

    2750*1180*
    2400mm

    4000*2300*
    2300mm

    Weight

    1.5T

    2.2T

    3.0T

    4.0T

    8.0T

    Power
    (KW)

    3.0kw

    3.5kw

    4.0kw

    4.8kw

    7.6kw

    Rated Voltage

    Customized

    Customized

    Customized

    Customized

    Customized



    Flange Aspetic Filling And Sealing Machine Stainless Steel Double Cap System
