Non Gass Liquid Bottle Filling Equipment 7.5kw 3200 * 2580 * 2000
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | CGF32-32-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 25 Working Days After Deposit |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 20Sets Per Months |
|
Detail Information |
|||
| Bottle Type: | Glass Bottle | Capacity: | 10000BPH |
|---|---|---|---|
| Filling Heads: | 32 | Capping Heads: | 10 |
| Washing Heads: | 32 | Product Name: | Drink Bottling Machine |
| Fillling Material: | Non Gass Liquid | Material: | Stainless Steel |
| Highlight: | aseptic filling line,water bottling equipment |
||
Product Description

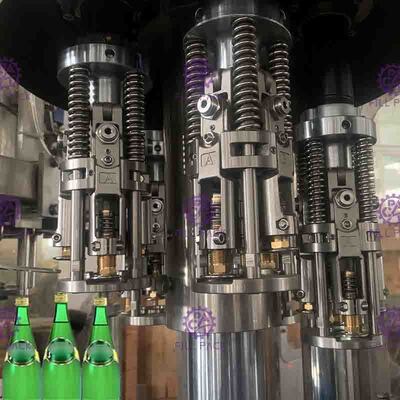

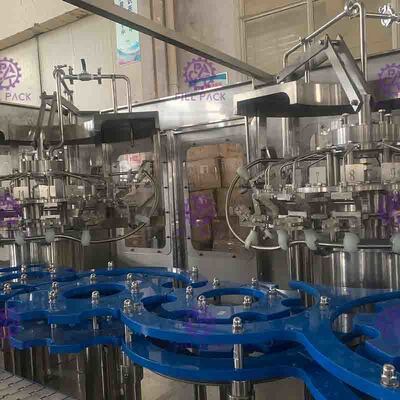

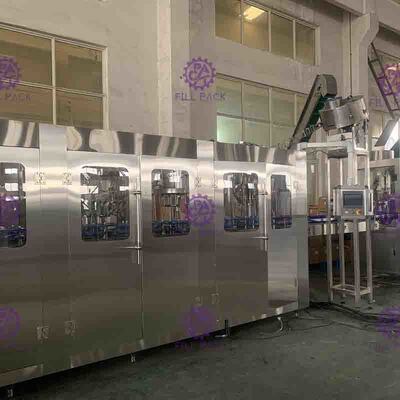

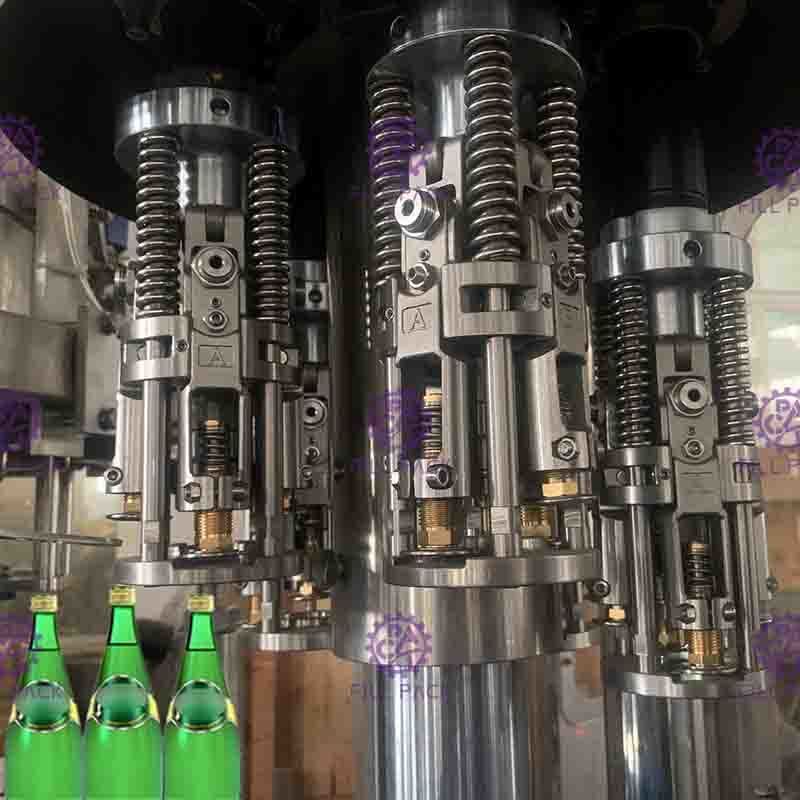

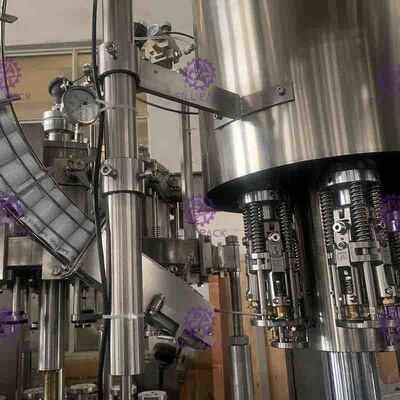

PLC control stainless steel level adjusted drink bottling machine for non gass liquid
Drink bottling machine---Main introduction
Drink bottling machine, integrating with washing, filling and capping, it realizes full automation in the whole process, suitable for glass bottle and pulling cap filling of wine, grape wine and sauce.
The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new negative pressure filling way. Compared with the machines of the same specification, the productivity and benefit of this machine is more larger.
The machine adopts advanced MITSUBISHI PLC to control the automatic running of the machine. The input bottle chain adopts speed control by frequency variation; the output bottle chain adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.
The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation.
Drink bottling machine---Machine parameter
|
Washing Workstation |
32 |
|
Filling Workstation |
32 |
|
Capping Workstation |
10 |
|
Production Capacity |
10000B/H (500ml) |
|
Machine Power |
7.5kw |
|
Machine Weight |
5000Kg |
|
External Dimensions (L*W*H) |
3200*2580*2000 |
Drink bottling machine---Technique Parameters
|
Model |
CGF18186 |
CGF24248 |
CGF323210 |
CGF404012 |
CGF505015 |
|
|
Heads |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-15 |
|
|
Production Capacity: (b/h) 500ml |
6,000 |
10,000 |
15,000 |
18,000 |
24,000 |
|
|
Suitable Bottle Shape (mm) |
Φ=50-108 H=170-340 V=330ML-2.5L |
|||||
|
Rinsing Pressure kg/cm²) |
2-3 |
|||||
|
Motor Power (kw) |
3.5 |
4.0 |
5.0 |
7.5 |
9.0 |
|
|
Dimension (mm) |
2520*2020*2700 |
3000*2200*2800 |
4160*2860*2900 |
4550*3250*2900 |
5620*3570*2900 |
|
|
Weight (kg) |
3,500 |
5,500 |
8,000 |
10,000 |
12,000 |
|
