Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads

Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads

    • Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads
    • Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads
    • Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads
    • Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads
  • Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads

    Product Details:

    Place of Origin: ZhangJiaGang JiangSu China
    Brand Name: FILL PACK
    Certification: CE & ISO & TUV & SGS
    Model Number: CGF 12-12-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD $12500-$14500/set
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Deposit Payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20 Sets Per Months
    Contact Now
    Detailed Product Description
    Control: PLC Control Touch Screen Color: Silver Gray
    Bottle Size: 0.3-2L PET Bottle Capacity: 3000-4000BPH
    Processing: Japan & Germany Electrical Brand: Mitsubishi, OMRON, SIEMENS

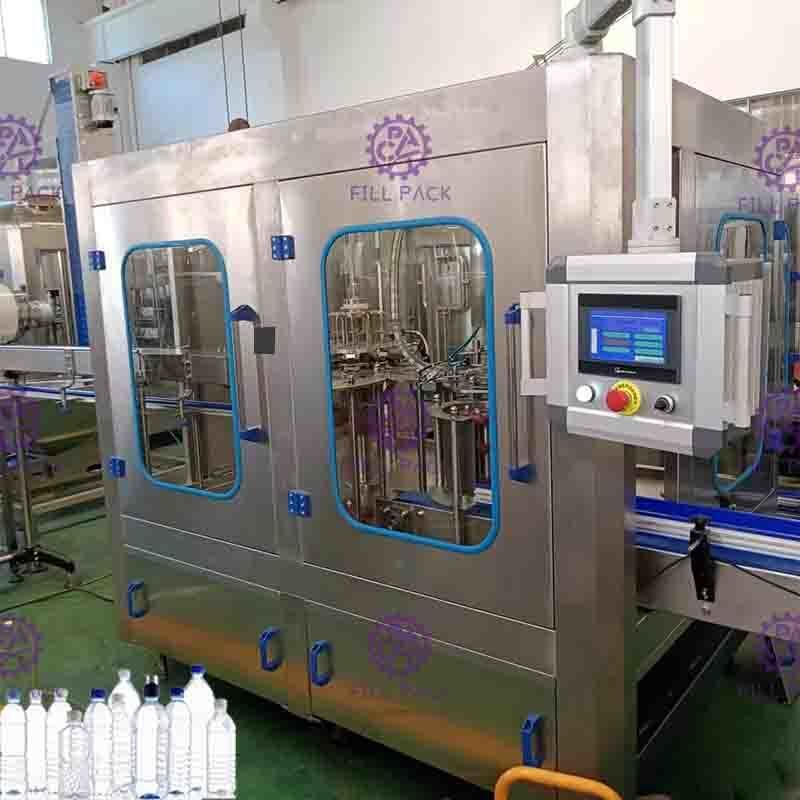

    Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads



    Product description:



    The filling machine is used in production of non-soda drink of hot juice or cold water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

    The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

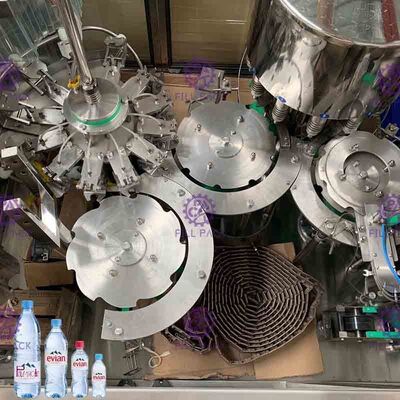

    Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.



    The filling by spring type liquid lever controlling filling valve, no dripping. The liquid lever is easy to control. All construction made of SUS304, There is no dead corner inside filling valve.

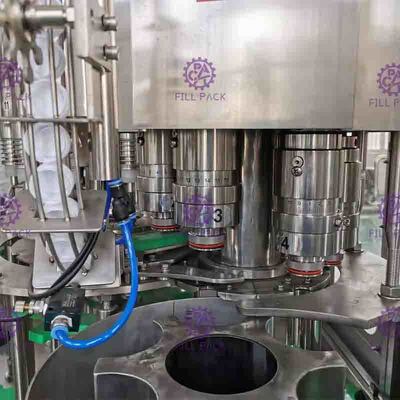

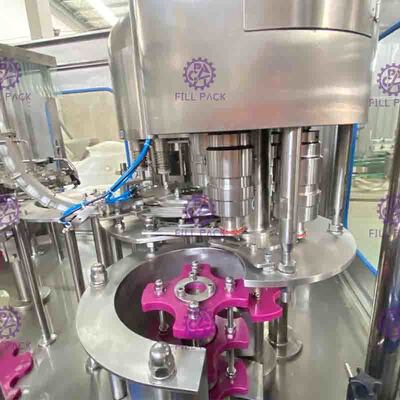

    The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.



    There is electrical heating cold-heat tank enclosed in the whole system especially for keeping hot filling temp during hot juice filling. And it can also be stopping heating by easy electrical break down for cold water filling. It do not need extra steam system to work together.



    The bottled water filling machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.



    The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.



    Quick Detail:



    Material:                                  Food stage stainless steel
    Control:                                   PLC & touch screen control
    Capacity:                                 3000-4000bph
    Suitable Bottle:                       PET bottle
    Bottle Volume:                        0.3-2L

    Dimension:                              By order
    Function:                                 washing filling capping 3 in 1
    Technology:                             Advanced
    After-sales service provided: Engineers available to service machinery overseas .



    Parameter:



    Model CGF12-12-4
    Capacity(B/H)(330ml) 3000-4000
    Bottle size Neck:φ20-50mm;Height:150-320mm
    Water pressure 0.18-0.25Mpa
    Water consumption(kg/h) 1000
    Washing station 2
    Dripping station 2
    Filling precision <+1MM
    Air pressure 0.4Mpa
    Air consumption (m³/min) 0.3
    Power(kw) 5
    Weight(kg) 2500
    Dimension(L*W*H)(mm) 2100*1700* 2400
































    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project



    Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads

    Please kindly clink the play button to watch the vedio



    Automatic 3 in 1 Bottled Water Filling Machine PLC Touch Screen 12 Heads
