3-In-1  Drinking Water Filling Machine With PLC Control Monoblock 24 Heads

3-In-1 Drinking Water Filling Machine With PLC Control Monoblock 24 Heads

Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE & ISO & TUV & SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $22500-$26000/set
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Deposit Payment
Payment Terms: T/T, L/C, D/A, D/P, , MoneyGram
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

Capacity: 10000BPH Machine Type: Monoblock 3 In 1
Control: Automatic Operation: PLC Touch Screen
Color: Sliver Gray Bottle Capacity: 0.3-2L
High Light:

water production line


water bottle filling machine

Product Description


3-In-1 Drinking Water Filling Machine With PLC Control Monoblock 24 Heads


Product description:


The drinking water filling machine is used in production of pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

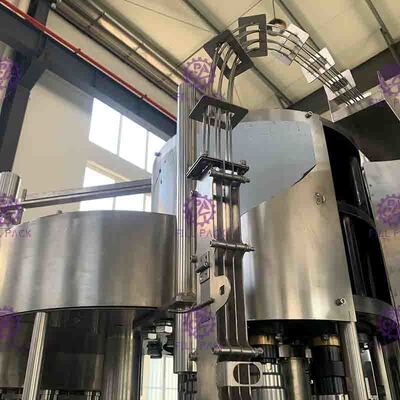

The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.






Transducer Simens-Germany
Touch screen Simens-Germany
PLC Simens-Germany
Stabilized voltage supply MingWei-TaiWan
Contactor Schnider-French
Approach switch Schnider-French
Air switch



Model CGF24-24-8
Capacity (B/H) 8000-12000(500ml)
Bottle size Neck :φ50-100mm:Height:150-320mm
Water Pressure 0.18-0.25Mpa
Water consumption(kg/h) 1000
Washing station 18
Loading-Dripping-discharge station 2-2-2
Filling precision <+1MM
Air pressure 0.5Mpa
Air consumption 0.3m3/min
Power(kw) 4
Weight(kg) 5000
Dimension(L*W*H) 2750*2100*2400 mm



Quality assurance:


1.We guarantee the water bottle filling machine offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.

2.We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.

3.We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.

4.The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.


Competitive Advantage:


1. The free production technology and process configuration for customers.

2. We can help you to design the production line, workshop and provide turn-key project, to become the best partner.

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Free equipment installation and debugging for customer's convenience.

5. Every 3 years, we can help to overhaul the machine free (Labor)

6. We can provide internship service and help you train the operator and mechanic

7. One year warranty for the water bottle filling machine
