Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure

Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure

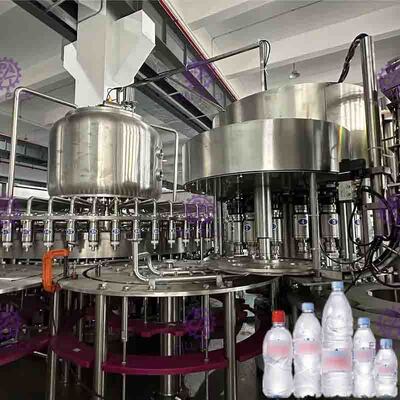

    • Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure

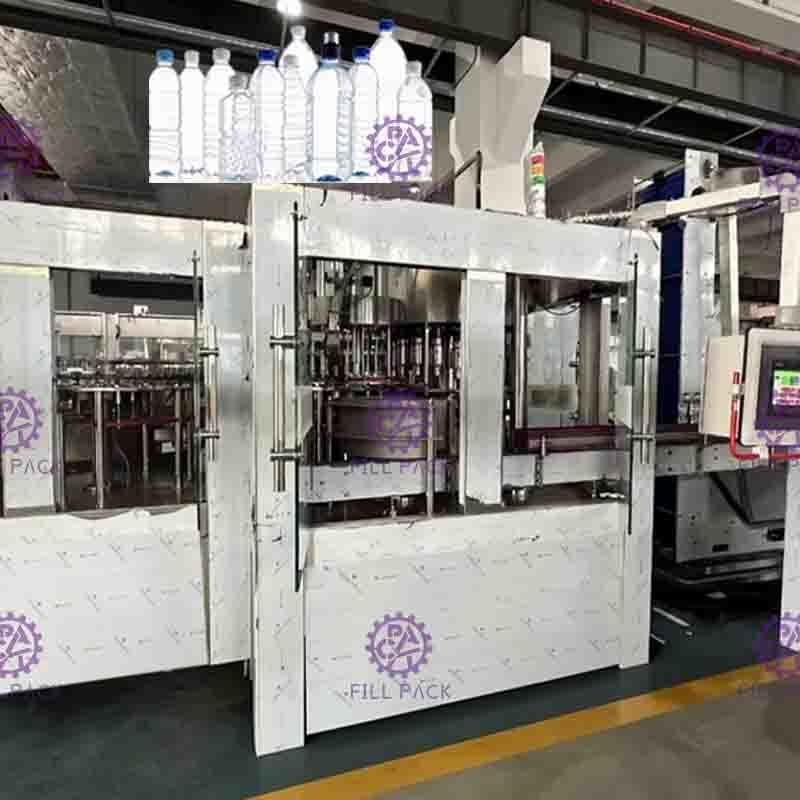

    • Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure

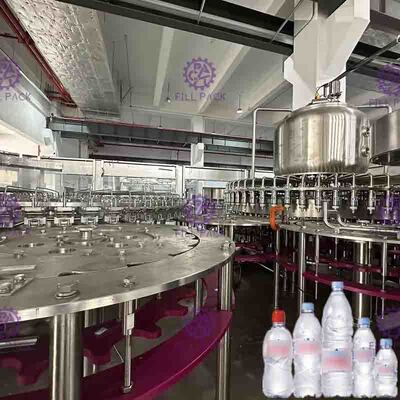

    • Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure

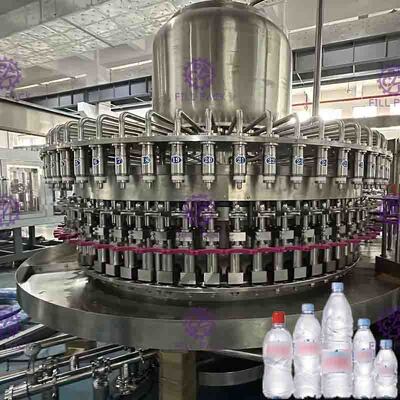

  • Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure

    Product Details:

    Place of Origin: ZhangJiaGang JiangSu China
    Brand Name: FILL PACK
    Certification: CE & ISO
    Model Number: CGF40-40-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD $49000-$75000/set
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Deposit Payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20 Sets Per Year
    Contact Now
    Detailed Product Description
    Control: PLC Control With Touch Screen Bottle Size: 0.3-2L PET Bottle
    Capacity: 20000BPH Electrical Brand: Mitsubishi, OMRON, SIEMENS
    Warranty: 1 Year For Spare Parts Processing: Japan & Germany
    Filling Type: Normal Pressure Filling Material: Touch Parts SUS304/SUS316



    Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure



    Product description



    The filling machine integrates washing, filling and capping. It is suitable for automatic washing, filling and sealing of all kinds of non gas beverages, oil vinegar, fruit wine, mineral water and pure water. This line has a large capacity about 20000 bottles per hou.The line has unique design, novel style, complete functions, strong adaptability, convenient operation, beautiful appearance and high automation. It is the best filling equipment in China at present.





    Complete Flow Chart



    Ion Re-birth Device

    V

    Raw Water Source>Booster Pump>Quartz Sand Filter>Active Carbon Filter>Water Softener>RO Unit>UV Sterilizer>Pure Water Storage Tank<Ozone Machine

    V (Steam Generator)

    V V

    Bottle Blowing System> Monoblock Water Filling Machine>Labeling machine>(Shrinking Tunnel)>Code Printer>Shrink Wrapping Machine



    Parameter:


    Model CGF40-40-12
    Capacity (B/H) 20000(500ml)
    Bottle size Neck :φ50-100mm:Height:150-320mm
    Water Pressure 0.18-0.25Mpa
    Washing Water consumption(kg/h) 1000-2000
    Washing station 16
    Dripping station 8
    Filling precision <+1MM
    Air pressure 0.3Mpa
    Air consumption 0.5m3/min
    Power(kw) 5 (motor)
    Weight(kg) 6000
    Dimension(L*W*H) 4600*2800*2500mm

































    After-sales service:



    1.The filling machine one year warranty for the whole system

    2. Also free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only

    one the cost price

    4. We can provide internship service and help you train the operator and mechanic

    5. We can help you to design the production line, workshop and provide turn-key project

    6. Free production technology and process configuration



    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. We can provide internship service and help you train the operator and mechanic

    5. Free production technology and process configuration

    6. We can help you to design the production line, workshop and provide turn-key project, for the bottle water filling machine.

    7. Every 3 years, we can help to overhaul the machine free (Labor)



    Automatic Pure Water Filling Machine 20000BPH 40 Heads Normal Pressure

    Please kindly click the play button to watch the video.
