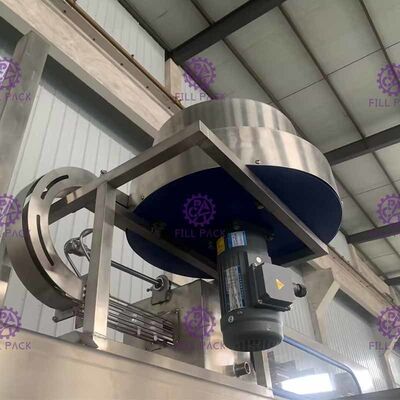

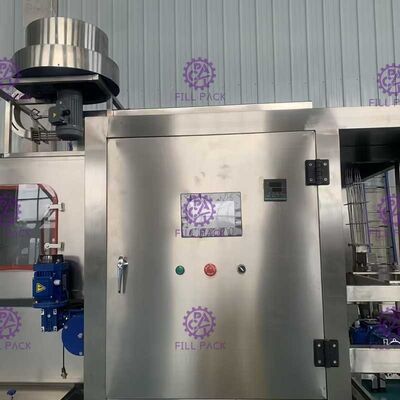

2 Line 5 Gallon Water Filling Machine / Plant 300 BPH For Minear Water

2 Line 5 Gallon Water Filling Machine / Plant 300 BPH For Minear Water

Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE, ISO9001,SUS
Model Number: QGF-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $22000-$30000/set
Packaging Details: wooden case
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/A, D/P, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Material: SUS304 Barrel: 5 Gallon Bottle
Capacity: 300BPH Machine Packaging: Wooden Case
Control: Automatic Application: Mineral Water
High Light:

automatic filling machine


bottle filler machine

Product Description

2 Line 5 Gallon Water Filling Machine / Plant 300BPH For Minear Water


Product description:


The 5 gallon water filling machine line contains eight parts,the de-capper,auto external brush washer, monoblock rinser-filler-capper with auto loading and un-loading device,light checker,sleeve applicator,steam shrink tunnel,ink jet printer and conveyor system.


The de-capper:


This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;

De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.


When the gallon bottle comes into the machine, the block board will block the bottle tightly by cylinder,the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;


Cap pulling claw: 1 pc

Power: 0.8KW

Dimension: 650*800*1600mm

Weight: 100kg


Gallon bottle external washer:


The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will increase the inner washers and insert into bottles, when the bottles are fixed by all brushes, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;


Dimension: 1500*1200*1750mm

Weight: 250kg

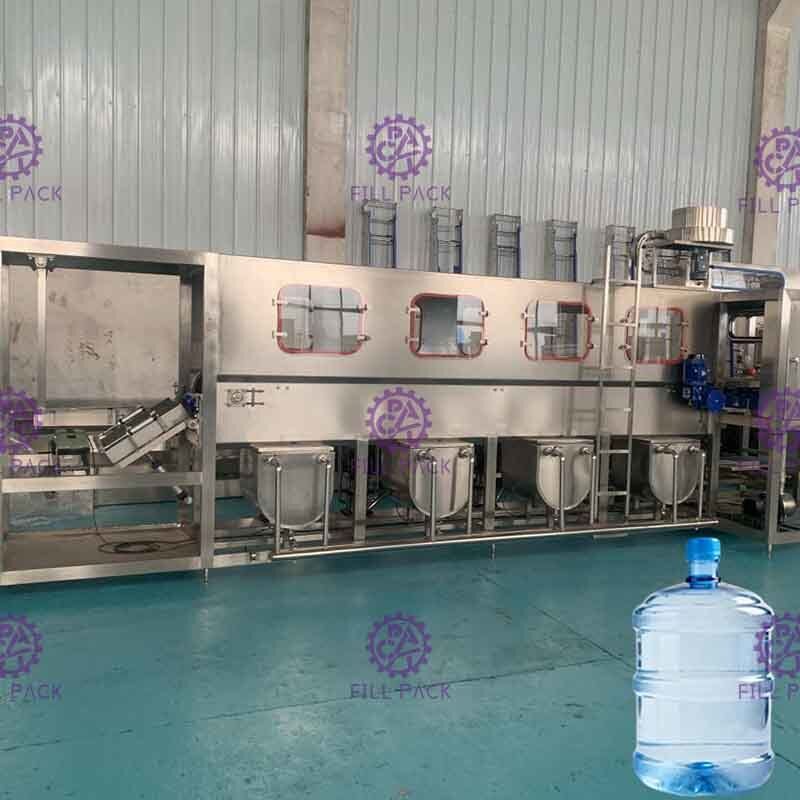

The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.


Model QGF-300
Capacity 300 barrels / hour
Filling head 2
Material SUS304
Suitable bottle 5 gallon
Motor power 3.8KW
Weight 1500kg


Sleeve applicator:


Whole machine frame is made out of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.

The special cutting system: adopting the whist and convolute technology. The label cutting is flat, no burr.

The label location set assures the sleeving veracity.

Adopting model group design, module controlled; Achieve veracity and fast sleeving.

With the good quality touching operation screen, achieving operation by finger, easy and shortcut.

It is a high automatic packing machine. Just one person handles, easy operation.

Easy to change packing material, the change over of the mould can be easily done by hand without any tools.

Within the flat width limitation, can be used to package objects in different shape, no matter round or square, can be applied on glass or plastic bottles.
