Bucket / Barrel / Gallon Bottle Water Rinsing Filling Capping Equipment / Plant / Machine / System / Line
Product Details:
| Place of Origin: | ZhangJiaGang JiangSu China |
| Brand Name: | FILL PACK |
| Certification: | CE, ISO9001 |
| Model Number: | QGF-900 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $40000-$60000/set |
| Packaging Details: | Blanket cloth or wooden case |
| Delivery Time: | 15-20working days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Capacity: | 900BPH | Machine Packaging: | Wooden Case |
|---|---|---|---|
| Weight: | 3500KG | Control: | PLC |
| Dimension(L*W*H): | 8000*2500*2500 | Power: | 5kw |
| High Light: | automatic filling machine,commercial bottling equipment |
||
Product Description
Description of our 900BPH 5 gallon filling line
Main machine description:
1, Automatic De-capper

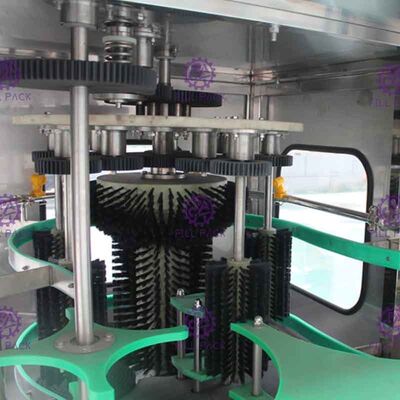

2, Rotary external washer
The bucket water filling line is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will increase the inner washers and insert into bottles, when the bottles are fixed by all brushes, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;

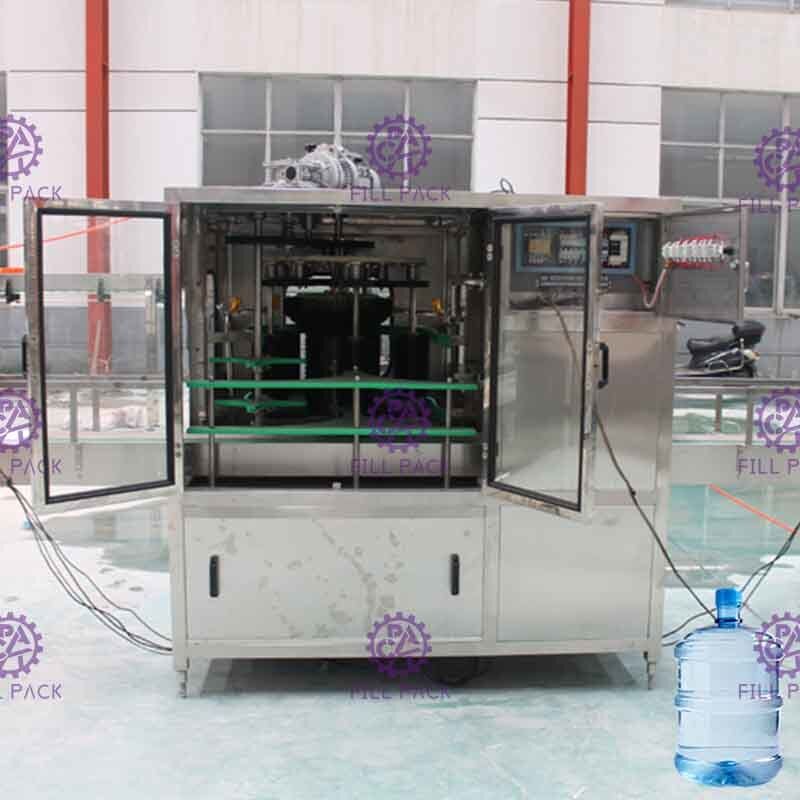

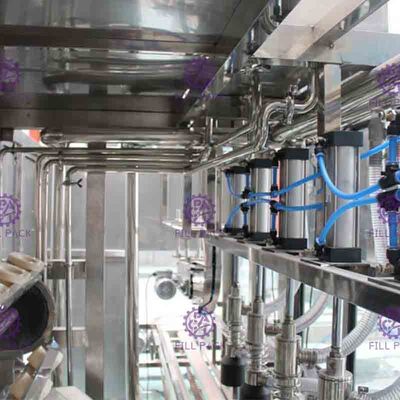

3, Monoblock gallon rinser-filler-capper
The barrel water filler is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily. Main electric parts are all branded. Air channel system use Air TAC brand product. The machine is with compact construction,will occupy small room,working efficiency is high. Only need 2 operators to control, is a good choice for factory to choose.
4, Steam shrink Machine
5, Ink jet code printer
Advantages of our gallon filling machine
1) bottle neck clamping which will not damage the bottle mouth;
2) different bottles can be used in same machine (the bottle neck should be the same) by changing some parts;
3) Less area to place the machine
4) Low cost in investment
5) Low energy consumption
Parameter
| Model | QCF-200 | QCF-300 | QCF-450 | QCF-600 | QCF-900 |
| Washing station | 1 row | 2rows | 3rows | 4rows | 6rows |
| Filling nozzles | 1 | 2 | 3 | 4 | 6 |
| Bottle type |
5 gallon Diameter: 270mm; Height: 490mm |
||||
| Production capacity | 100-200BPH | 250-300BPH | 400-450BPH | 550-600BPH | 850-900BPH |
| Gas consumption | 0.37m3/min | 0.6 m3/min | 0.6 m3/min | 1.2 m3/min | 2.2 m3/min |
| Pressure | 0.4-0.6Mpa | 0.6Mpa | |||
| Power | 1.75kw | 3.22kw | 4.8kw | 1.2kw | 2.2kw |
| Voltage | 380V 3phase 50HZ / CUSTOMIZE | ||||
|
Machine size (mm) |
3190*650*1550 | 3100*900*1650 | 3550*1100*1800 | 3800*1100*1800 | 3800*2200*1800 |
| Weight | 800kg | 1350kg | 1860kg | 2300kg | 3300kg |
Bucket / barrel / gallon bottle water rinsing filling capping equipment / plant / machine / system / line
OPTIONS
1, De-capping and washing machine for 5 gallon bottle;
2, Bottle sleeve label shrinking machine
The Monoblock filling machine will be made basing on:
1. the production capacity per hour
2. bottle type: plastic bottle, glass bottle or another
3. cap type: plastic screw cap, aluminum screw cap or another
Please send us the inquiry with above points so that we can help to send better quotation for reference.
You can choose our water treatment machine
1) the liquid tank is round, there is no residual after filling
2)the material is SUS304 which is anti-corrosive
3) different bottles can be used in same machine (the bottle neck should be the same) by changing some parts;
4) Less area to place the machine
5)Low cost in investment
6) Low energy consumption
Packing & Delivery
1. the Gallon water production line is packed by wooden case.
2. The delivery date of Gallon water production line is within 30 days after payment.
