    Product Details:

    Place of Origin: ZhangJiaGang JiangSu China
    Brand Name: FILL PACK
    Certification: CE, ISO9001
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD $40000-$60000/set
    Packaging Details: Blanket cloth or wooden case
    Delivery Time: 15-20working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Bottle Size: 5 Gallon Bottle Capacity: 300BPH
    Weight: 680kg Dimension(L*W*H): 2200X2100X2200mm
    Automatic Grade: Automatic Gas Pressure: 0.4-0.6 Mpa



    Description of our 300BPH 5 gallon filling line



    Features of our gallon water production machine:

    1.  This barrel water bottling machine specially produces 3&5 gallons barreled drinking water.
    2.  This series barreled filling production line integrates bottle washer, filler and sealer into one unit.



    3 in 1 bucket water filling line/plant/device/unit plus-minus 5mm level
    Items
    Name of machine
    Model
    Size(mm)
    1
    De-capper
    BG-1
    800*600*1950
    2
    Auto external brush washer
    WX-3
    1500*1100*2200
    3
    Monoblock rinser-filler-capper with Auto loading and un-loading device
    CGF-300
    5000*1500*2000
    4
    Light checker
    /
    /
    5
    Cap film shrink tunnel
    /
    1200*450*1200
    6
    Conveyor system
    10m belt+2m roller+2 motor
    /



    De-capper:

         This bucket water filling line is driven by cylinder, controlled by PLC; Automatic working by barrel checking;
    De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

    Parameters
    Cap pulling claw
    1 pc
    Power
    0.8KW
    Dimension
    650*800*1600mm
    Weight
    100kg

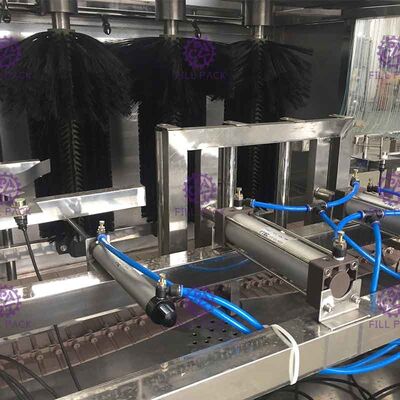

    Gallon bottle external washer:
        The bucket water filling line is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will increase the inner washers and insert into bottles, when the bottles are fixed by all brushes, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;

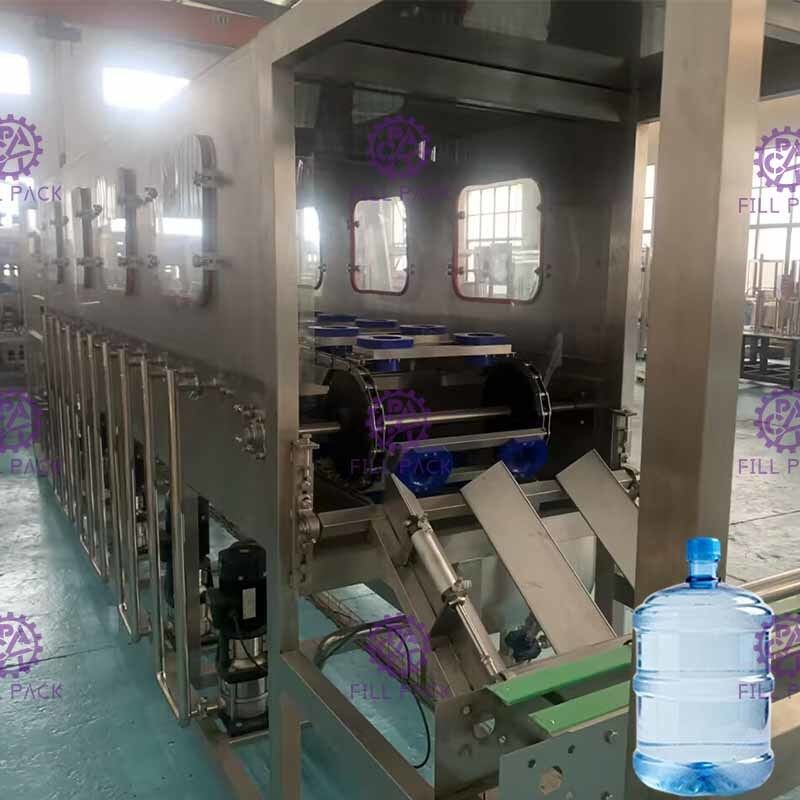

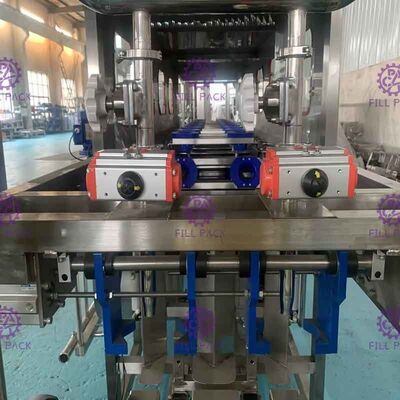

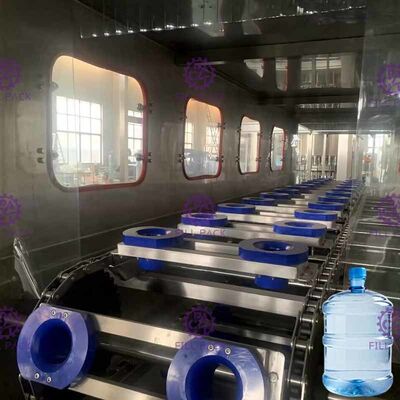

    Monoblock rinser-filler-capper:
       The bucket water filling line is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.

    Parameters
    Cylinder
    Air tech-Taiwan
    Magnetic valve
    Air tech-Taiwan
    Rising pump-filling pump
    Nanfang
    Motor
    TWT Taiwan
    PLC
    Mitsubishi Japanse
    Power
    6KW
    Dimension
    4500*1500*2000mm
    Weight
    600kg
    Auto loading device
    1500*800*1000mm
    Weight
    100kg



    Sleeve applicator:
       Bucket water filling line frame is made out of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.
       The special cutting system: adopting the whist and convolute technology. The label cutting is flat, no burr.
       With the good quality touching operation screen, achieving operation by finger, easy and shortcut.

       It is a high automatic packing machine. Just one person handles, easy operation.
