Bucket / Barrel / Gallon Bottle Water Manufacturing Equipment / Plant / Machine / System / Line

Bucket / Barrel / Gallon Bottle Water Manufacturing Equipment / Plant / Machine / System / Line

Bucket / Barrel / Gallon Bottle Water Manufacturing Equipment / Plant / Machine / System / Line

Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE, ISO9001
Model Number: QGF-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $40000-$60000/set
Packaging Details: Blanket cloth or wooden case
Delivery Time: 15-20working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Bottle Size: 5 Gallon Bottle Capacity: 600BPH
Gas Pressure: 0.4-0.6Mpa Barrel Size: 270*490mm
Dimension(L*W*H): 2200X2100X2200mm Automatic Grade: Automatic
High Light:

automatic filling machine

,

commercial bottling equipment

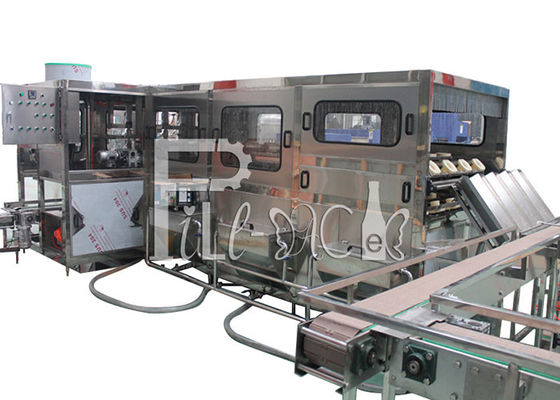

Description of our 600BPH 5 gallon filling line

FILL-PACK can provide you the most professional and highest quality barrel water bottling machine.

Let's check our gallon family.



Monoblock washing-filling-capping machine
   Monoblock means the filling machine integrates washing machine, filling machine and capping machine in one frame. The driving system will be transmitted step by step which makes the speed more stable.

   We have the filling machine which is used to work for 5 gallon bottle or 3 gallon bottle. There are several types of 5 gallon filling machine for choices including: 100-200BPH, 300BPH, 450BPH, 600BPH, 900BPH, 1200BPH etc;



Features of our gallon water production machine:

1. This barrel water bottling machine specially produces 3&5 gallons barreled drinking water.
2. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.



600BPH 5 gallon water barrel water bottling machine
Items
Name of machine
Model
1
Automatic De-capper
CR-1
2
Brush Internal-External Bottle Washer
WS-1
3
Washer/Filler/Capper with auto bottle loading
WFC-600BPH
4
Heat Shrinking Machine
ZSM-1
5
Checking Light
CL-1
6
Conveyor Belt with Motor
/



1, Automatic De-capper

Parameters
Dimension
650*800*1600mm
Weight
100kg



2, Brush Internal-External Bottle Washer

Parameters
Brush qty
4pcs*2
Dimension
2000*1200*1750mm
Weight
800kg
Power
pump 0.37+motors 0.75*2=1.87KW
Recycle water tank size
600*550*550mm



3, Washer/Filler/Capper with auto bottle loading

Parameters
Cylinder
Air tech-Taiwan
Magnetic valve
Air tech-Taiwan
Rising pump-filling pump
Nanfang
PLC
Mitsubishi Japanse
Power
1.5KW
Dimension
6000*1800*1800mm
Weight
1000kg



4,Heat Shrinking Machine

Power: 20KW
Dimension: 800*600*1200mm
Weight: 100kg



Bucket / barrel / gallon bottle water manufacturing equipment / plant / machine / system / line
