3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line

3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line

    • 3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line
    • 3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line
    • 3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line
  • 3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: ZhangJiaGang JiangSu China
    Brand Name: FILL PACK
    Certification: CE, ISO9001
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD $40000-$60000/set
    Packaging Details: Blanket cloth or wooden case
    Delivery Time: 15-20working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Bottle Size: 5 Gallon Bottle Capacity: 300BPH
    Barrle Size: 270*490 Mm Dimension(L*W*H): 2200X2100X2200mm



    Description of our 300BPH 5 gallon filling line



    How to find a suitable bucket filling machine?

    1.  The gallon barrels used are all new gallon barrels? Or recycled old barrels? If it's new, do you need a bottle blow molding machine?
    2.  Do the gallon barrels have a handle? And wha's the shape is it?Is the cover press-cap or screw-cap?

    3.  The volume of barrel is 3 gallons or 5 gallons ?

    3 gallon bucket filling machine/system/unit 3 in 1 auto loading
    Items
    Name of machine
    Model
    Size(mm)
    1
    De-capper
    BG-1
    800*600*1950
    2
    Auto external brush washer
    WX-3
    1500*1100*2200
    3
    Monoblock rinser-filler-capper with Auto loading and un-loading device
    CGF-300
    5000*1500*2000
    4
    Light checker
    /
    /
    5
    Cap film shrink tunnel
    /
    1200*450*1200
    6
    Conveyor system
    10m belt+2m roller+2 motor
    /



    De-capper:
        When the gallon bottle comes into the machine, the block board will block the bottle tightly by cylinder,the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client's own holder.

    Parameters
    Cap pulling claw
    1 pc
    Power
    0.8KW
    Dimension
    650*800*1600mm
    Weight
    100kg

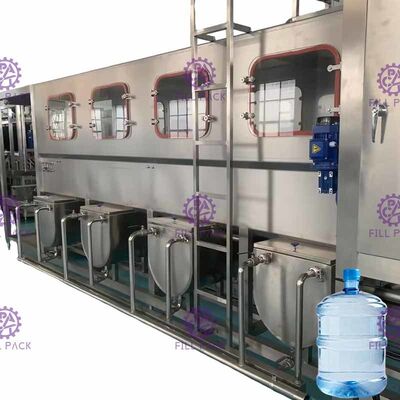

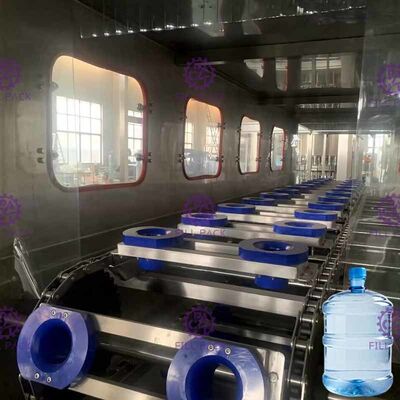

    Rinser-filler-capping:
        The Barrel water filling machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power , air power.

    Parameters
    Cylinder
    Air tech-Taiwan
    Magnetic valve
    Air tech-Taiwan
    Rising pump-filling pump
    Nanfang
    Motor
    TWT Taiwan
    PLC
    Mitsubishi Japanse
    Power
    6KW
    Dimension
    4500*1500*2000mm
    Weight
    600kg
    Auto loading device
    1500*800*1000mm
    Weight
    100kg



    3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line

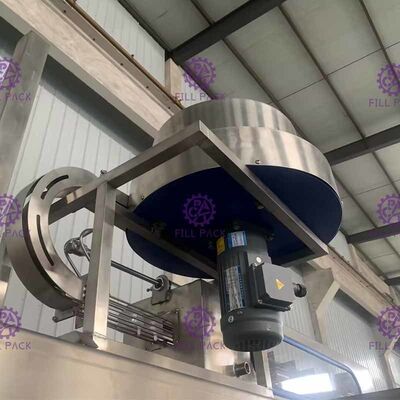

    Heat Shrinking Machine:

    Whole SUS304 construction, Including electrical boiler to generate steam and shrink tunnel specially for barrel cap film

    3 / 5 Gallon / 20L Bottle Water Producing Equipment / Plant / Machine / System / Line
