QGF - 600 5 Gallon Water Filling Machine Mineral Water Filling System

QGF - 600 5 Gallon Water Filling Machine Mineral Water Filling System

Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE,ISO9001
Model Number: QGF-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $88000-$100000/set
Packaging Details: wooden case
Delivery Time: 15 days after deposit receipt
Payment Terms: D/A, L/C, D/P, T/T, , MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Type: Filling Machine Application: Liquid
Weight: 3000 Capacity: 600
Machine Material: Stainless Steel Volume: 18.9
High Light:

automatic filling machine


commercial bottling equipment

Product Description



1.1, Automatic De-capper


This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;

De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.


When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;


The claw pressure is adjusted to protect caps;


Dimension: 650*800*1600mm

Weight: 100kg


1.2, Brush External Bottle Washer


The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will stop 3bottles inside and fixed them by brushes and fixing bar, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;

No air compressor needed, it is easy for production and maintenance;



Brush qty: 4pcs*2

Dimension: 2000*1200*1750mm

Weight: 800kg

Power: pump 0.37+motors 0.75*2=1.87KW

Recycle water tank size: 600*550*550mm



PLC: Mitsubishi

Cylinder: AIRTAC

Air switch-Contactor-Relay: Schneider

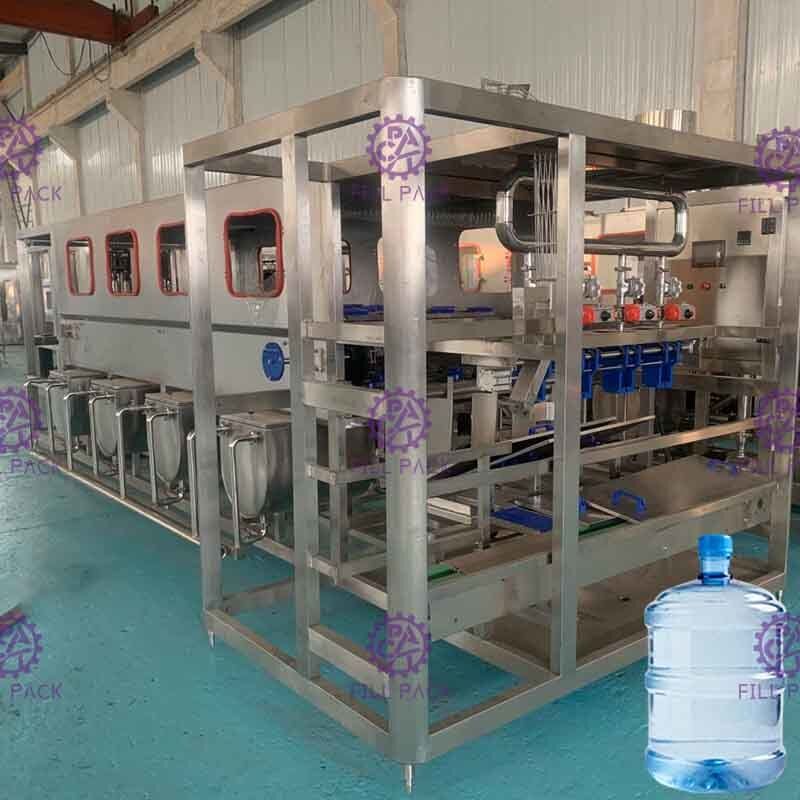

1.3, Washer/Filler/Capper with auto bottle loading


The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.


The machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power , air power.


Working process:

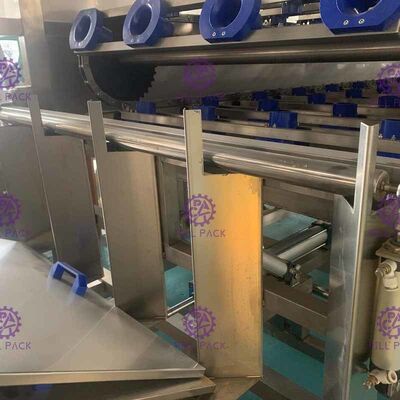

Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 12 working stations,working process as below:

Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,2 working station for barrel inserting.

Washing process will be divided into 3 steps:1, thimerosal washing,4working positions;2,clean water washing,4working positions.Every washing step is set to 8S,after washing,there will be 10S for dripping.

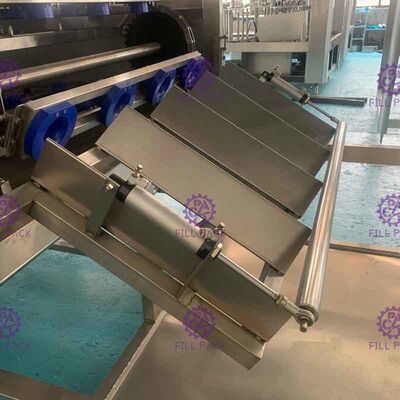

The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.

Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.After filling, the extra water will back to pure water tank by automatic vent,it can reduce water consumption.(water tank is not included)

After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now.

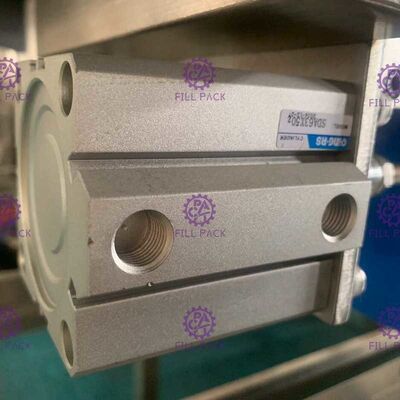

Cylinder: Air tech-Taiwan

Magnetic valve: Air tech-Taiwan

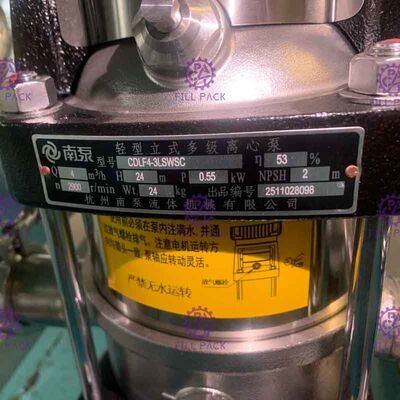

Rising pump-filling pump: Nanfang

PLC: Mitsubishi Japanse

Power: 1.5KW

Dimension: 6000*1800*1800mm

Weight: 1000kg


1.4, Heat Shrinking Machine


Whole SUS304 construction, including electrical boiler to generate steam and shrink tunnel especially for barrel cap film;

Power: 20KW

Dimension: 800*600*1200mm

Weight: 100kg


1.4, Checking light

Power: 0.09KW

Dimension: 1000*100*450MM

Weight: 10kg



100% irrevocable-transferable at sight L/C or 30%TT against PI, 70%TT before delivery



25-35 working days after L/C receipt;
