Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line

Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line

    • Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line
    • Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line
    • Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line
    • Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line
  • Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: RCGF32-32-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Weight: 12000-15000 Kg Dimension(L*W*H): 3800*2800*2500 Mm
    Filling Pressure: 0.1-0.35Mpa Automatic Grade: Automatic
    Bottle Type: PET Plastic Bottle Condition: New
    Material: SUS304 Filling Precision: ≤+/-1mm(liquid Level)
    Processing Types: Juice Processing Filling Packing Voltage: 380V/220V 50HZ
    Control PLC: Control With Touch Screen Suitable Bottle Size: 0.3-2L PET Bottle
    Cap Style: Plastic Screw Cap Warranty: 1 Year For Spare Parts
    Capacity: 12000-15000BPH

    Product Description



    Plastic bottle juice drink filling line RCGF32-32-12

    >>>Overview of Production Line:

    The juice blending process is designed according to the formula of the juice drink. Usually, the juice blending process is: sugar preparation syrup, syrup filtration, concentrated juice dilution, juice mixing tank,Vacuum degasser, Homogenizer, UHT(Sterilization), CIP cleaning. For example: use concentrated juice to produce bottled juice. Before the concentrated juice is prepared, it is necessary to carry out the juice recovery, that is, adding an appropriate amount of water to pre-dissolve and dilute the concentrated juice. After that, it is sent to the mixing tank, and then the syrup and other auxiliary materials are added, and the water is stirred and the volume is adjusted.


    >>>Processing flow:
    Drinking Water Treatment Equipment → Syrup pot → Syrup Filter → juice mixing tank → Vacuum degasser → Homogenizer → UHT(Sterilization) → Washing, Filling, Capping 3-in-1 Machine For Filling Juice → Bottle Inverted Conveyor Sterilization → Spray Water Sterilization.(85℃) → Labeling Machine Code printer → Shrink wrap packing machine→ Finished Products
    Bottle / Bottled Drink Tea Apple Orange Beverage Juice Manufacturing Machine / Equipment / Plant / Unit / System / Line

    Washing Filling Capping 3-in-1 in the Juice/Tea Hot filling line
    Model RCGF12-12-4 RCGF18-18-6 RCGF24-24-8 RCGF32-32-12 RCGF40-40-12
    Capacity 4000BPH 5000-7000BPH 8000-12000BPH 12000-15000BPH 15000-20000BPH
    Bottle shape (Bottle Diameter):50-110mm (Height):160-320mm
    PET bottle PET screw
    Filling precision ≤+/-1%
    Filling pressure 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa
    Rinsing pressure 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa
    Power 4.4Kw 4.4Kw 5.2Kw 6.2Kw 7.8Kw
    Size(mm) 2100*1750*2200 2800*2150*2300 3100*2450*2300 3800*2800*2500 4100*3000*2500
    Weight(Kg) 3500 5000-7000 8000-12000 12000-15000 15000-20000

    If you need glass bottle juice filling line, please check them on our website or contact the sales consultant directly.

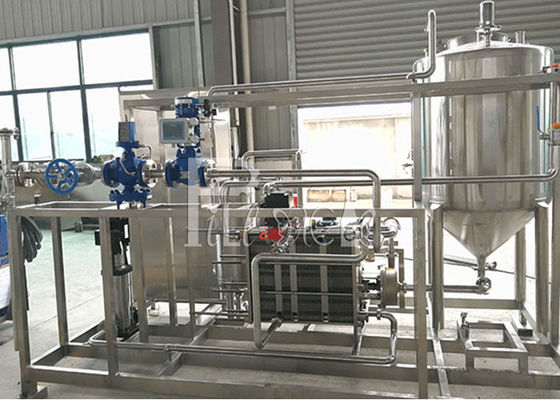

    Juice Processing System
    Juice batching system: sugar pot, batching tank, duplex filter, homogenizer, vacuum degasser, tubular ultra-high temperature sterilizer, heat preservation tank.
    The heating method can be steam heating, sugar melting pot, ingredient tank and beverage heat preservation tank can be made into three layers of heat preservation treatment, the outermost layer is heat preservation cotton, the middle layer is steam layer, and the latter layer is material, so the heating speed is fast, the heat loss is small, and the cost can be greatly reduced, so a steam boiler needs to be configured.

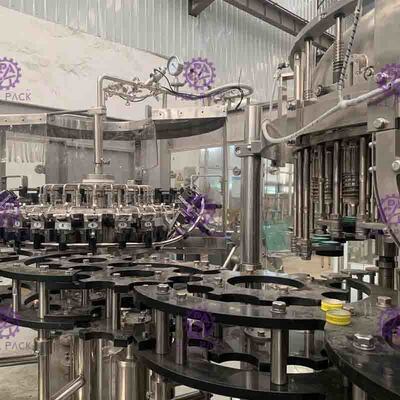

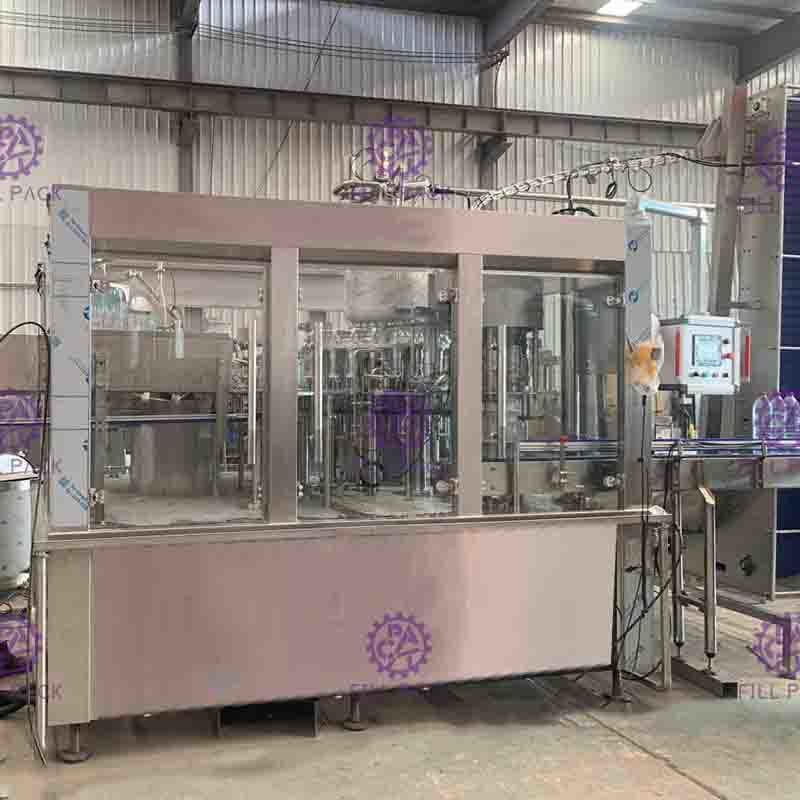

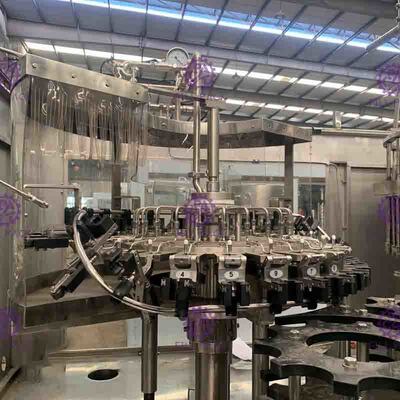

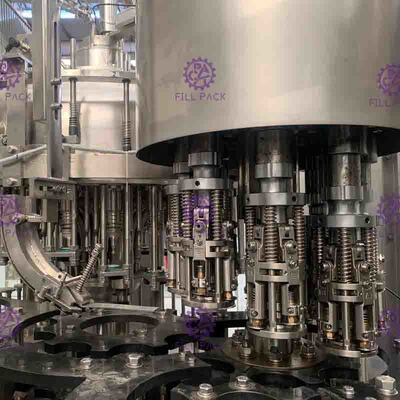

    Washing, Filling, Capping 3-in-1 Machine For Filling Juice
    Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles to 250000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.
    Detailed Images

    Water treatment system
    ★ Automation grade: Automatic / Semi-automatic
    ★ Capacity range: 250L—30T per hour can be chosen.
    ★ Material of three pre-filters:SUS304 / FRP
    ★ Membrane brand: HYDECANME/DOW/GE OSMONICS/Saehan/Toray
    ★ Optional device: water tank, sodium ion exchanger,UV sterilizer,water storage tank
    ★ Water pump:NangFang pump

    Vacuum degasser
    ★ The vacuum degasser is used to degass the homogenized fruit juice in the vacuum state, so as to prevent the oxidation of fruit juice and prolong the storage period of fruit juice.
    ★ After degassing, the juice beverage can reduce or avoid the oxidation of juice components, and reduce the change of color and flavor of juice.
    ★ This equipment uses frame to combine vacuum pump, vacuum degassing tank and delivery pump (screw pump) organically. It has simple structure, convenient operation, easy maintenance, small floor area.

    Homogenizer
    ★ Homogenizer is mainly used for mixing, grinding and refining juice drinks to avoid layering and improve the taste.
    ★ The shelf life is also improved, 3-5 times longer than the original. The products are of good quality.
    ★ The wearing parts of the machine are durable, with stable and reliable quality, high cost performance and low maintenance cost.
