1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type

1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type

    • 1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type
    • 1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type
    • 1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type
    • 1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type
  • 1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: EUHT-1
    Application: Instantaneous sterilizer for liquid material
    Material: SUS304
    Driven type: Electric
    Certification: CE, ISO
    Guarantee time: 1 year
    Condition: New

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case as machine need
    Delivery Time: 10-15 days
    Payment Terms: 30% T/T deposit, 70% before shipment
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description

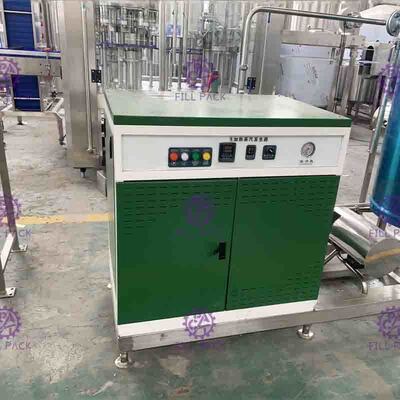

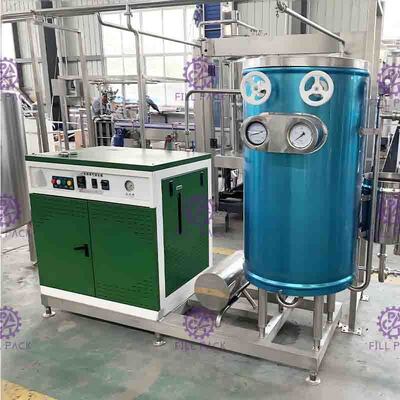

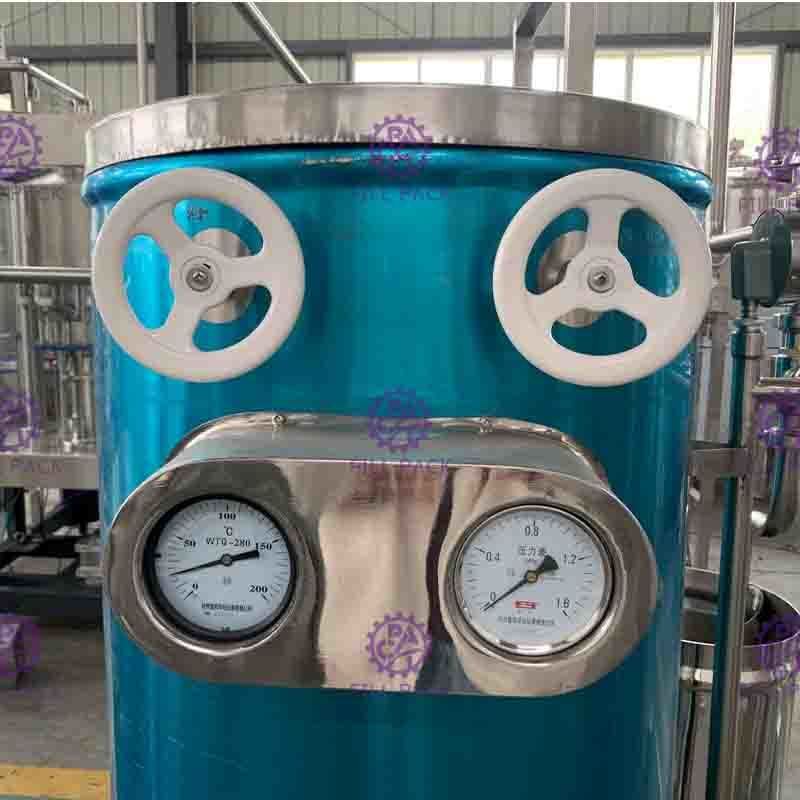

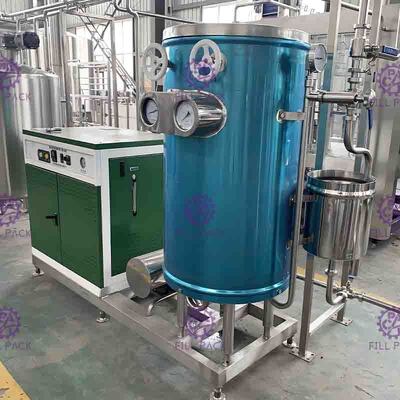

    1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type





    Quick Detail:



    1. Capacity: 1000L/H

    2. Heating type: Electric heating

    3. Used for juice, milk, and beverage for instantaneous sterilizer

    4. Coil type structure

    5. Sterilizing temperature: 115-135 (℃)





    Description:



    Main machine:



    This ultra high temperature instantaneous sterilizer is suitable for sterilizing the liquid material, such as juice, fresh milk, fruit milk, tea, wine, soybean milk and Chinese medicine, as well as the sticky material (for example, sweat condensed milk). It is with coil tube type heating system, heated by electric. It's set with a heating tank with conduction oil, heating electric power consumption is 32kw/h.



    We both have the steam heating type and electric heating type, so you can choose it as your local energy consumption price.



    Our factory adopts advanced stainless steel 304 welding technology abroad, selecting the fine polished stainless steel tube, which has good appearance and sterilizing effect. .





    Main Technology data:



    Treatment Capacity 1000L/H
    Sterilizing Temperature 115-135 (℃)
    Inlet temperature <65℃
    Outlet Temperature <40℃
    Heating time 4-6s
    Heating medium Heat conduction oil
    Material SUS304
    Area (m2) 0.9
    Heating Power 32kw
    Overall Dimensions 1600*900*1650 (mm)
    Weight 350 kg



    1 T/H Electric Heating UHT Sterilizer For Beverage Production Line Coil Type

    please kindly click the play button to watch the video
