SUS 304 Juice Processing Equipment steam heating mixing line
|Place of Origin:||China,JiangSu,Zhangjiagang|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set/pcs|
|Packaging Details:||Blanket cloth or wooden case as machine need|
|Delivery Time:||15 days|
|Payment Terms:||30% T/T deposit, 70% before shipment|
|Supply Ability:||50 sets/month|
|Model Number:||MT-2||Application:||Bottled And Canned Juice|
|Automatic Grade:||Automatic||Packaging Type:||Bottle Or Can|
|Power:||Specified As Machine||Driven Type:||Electric|
beverage processing machine,
beverage production line
Electric Aseptic Juice Processing Equipment Mixing Sterilizing Machine
Model Number: MT-2
Application: Bottled and canned juice
Automatic grade: automatic
Packaging Type: Bottle or can.
Power: Specified as machine
Driven type: Electric
Certification: CE, ISO
Guarantee time: 1 year
1. Capacity: 2000L/H
2. For mixing and sterilizing juice
3. Main material: SUS304
4. Treating from the juice powder.
The follow juice processing line is used to mix the juice powder for juice drink, and then make filter, homogenizer and sterilization for bottle or can filling.

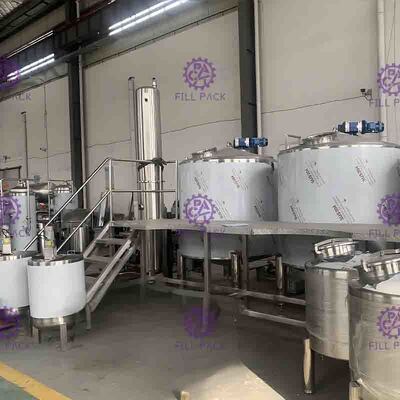

1. Juice mixing tank:
The tank is all made of SUS304 material, is mainly used to mix syrup, juice powder and water for juice drink with the motor driving stirring function. Normally it’s single layer without heating and cooling function, if need heating function, we can also make it. You can manual put the material into tank for mixing, or pumped by the pump.

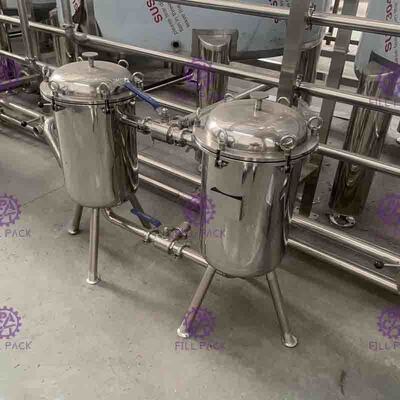

2. Double filter:
This machine is used to remove and purify every kind of solid impurity which is invisible to the naked eye in the fresh milk, sugar solution and beverage. Two pieces of filter alternate to use, it could change the filter cloth without stopping the machine and is suitable for long term continuous production.

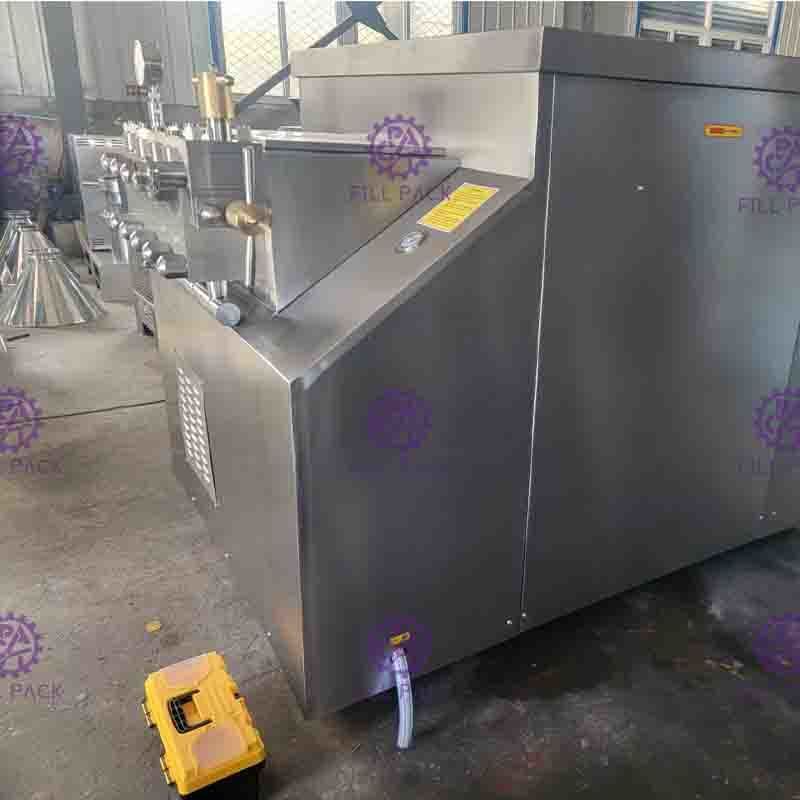

3. High pressure homogenizer:
This machine is mainly used to break, homogenizing and emulsify fluid mixing materials (liquid mix liquid or liquid mix solid). Main function of homogenizer include: improve homogeneity and stability of products, increase the period of maintenance and reduce reaction time, so as to save the mass of activator and color. It is the ideal machine to micromaching liquid for juice, milk, sugar, food, chemical, pharmaceutical and microbial industry.

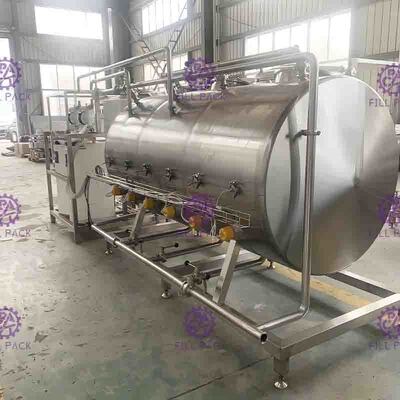

4. Ultra high temperature instantaneous sterilizer `
This ultra high temperature instantaneous sterilizer is suitable for sterilizing the liquid material, such as juice, fresh milk, fruit milk, tea, wine, soybean milk and Chinese medicine, as well as the sticky material (for example, sweat condensed milk). It is with coil tube type heating system, heated by steam, so here you need to set with a steam boiler or other machine for supplying needed steam.
After this machine, the juice can be stored in a tank or connect the filling machine directly, which is hot juice for filling.
For more details, please feel free to contact me.
