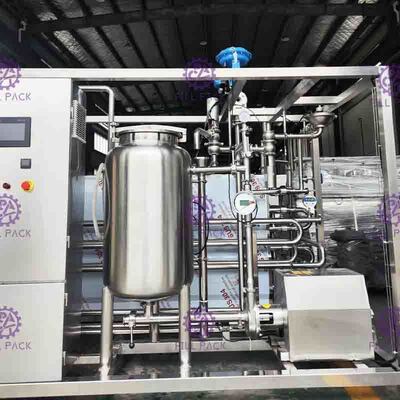

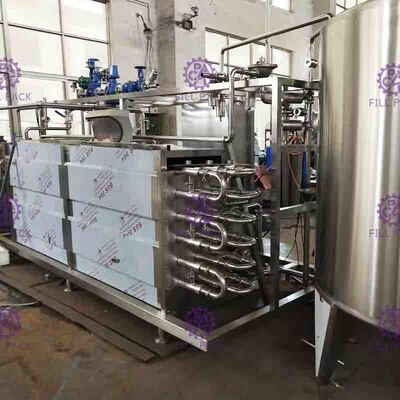

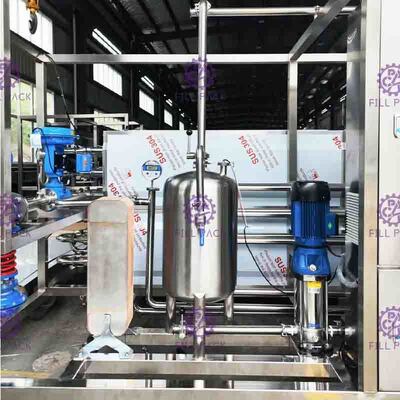

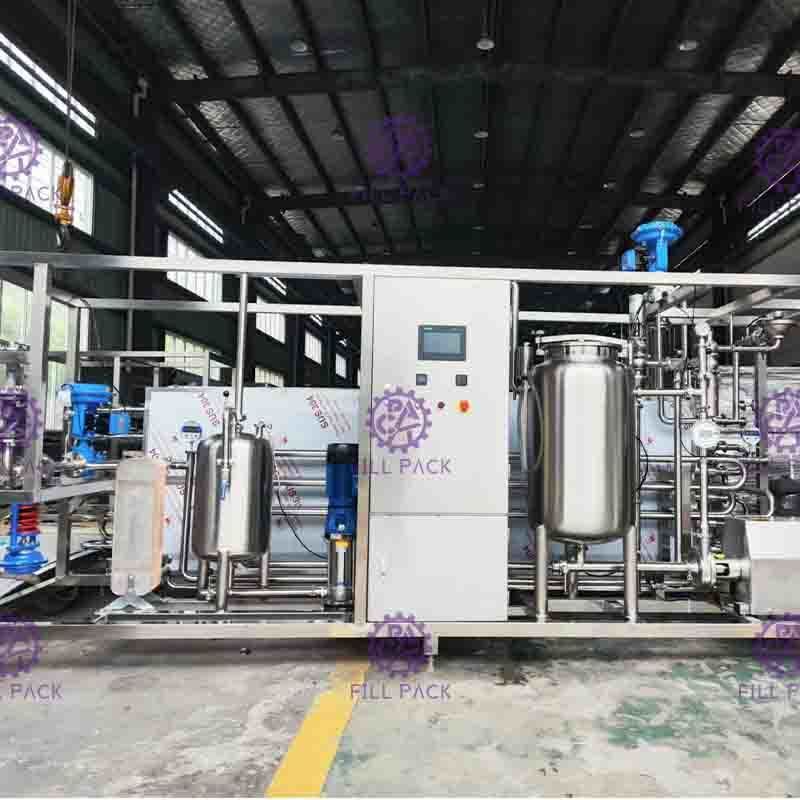

Instantaneous Sterilizer UHT Sterilization Machine in juice processing equipment

Instantaneous Sterilizer UHT Sterilization Machine in juice processing equipment

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE,ISO
Model Number: UHT-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case as machine need
Delivery Time: 10-15 days
Payment Terms: 30% T/T deposit, 70% before shipment
Supply Ability: 100 sets/month
Get Best Price Contact Now

Detail Information

Application: Instantaneous Sterilizer For Liquid Material Packaging Type: SUS304
Driven Type: Electric Capacity: 1000L/H
Heating Type: Steam Heating Sterilizing Temperature: 115-135 (℃)
High Light:

beverage production line


juice making equipment

Product Description

Milk / Juice Instantaneous Sterilizer Ultra High Temperature Sterilization Machine



Quick Detail:


1. Capacity: 1000L/H

2. Heating type: steam heating

3. Used for juice, milk, and beverage for instantaneous sterilizer

4. Coil type structure

5. Sterilizing temperature: 115-135 (℃)





Main machine:


This ultra high temperature instantaneous sterilizer is suitable for sterilizing the liquid material, such as juice, fresh milk, fruit milk, tea, wine, soybean milk and Chinese medicine, as well as the sticky material (for example, sweat condensed milk). It is with coil tube type heating system, heated by steam, so here you need to set with a steam boiler or other machine for supplying needed steam.


Our factory adopts advanced stainless steel 304 welding technology abroad, selecting the fine polished stainless steel tube, which has good appearance and sterilizing effect. .



Main structure and work principle


Ultra-high temperature sterilizer structure: the main machine contains a pressure vessel-high temperature bucket, used as a pressure steam container. The main set of barrel is thread-shaped double-pipe, used as the hot and cold exchange for inlet and outlet materials; The main set inside barrel is spiral tube, used as indirect heating.

Sterilization process : Materials through the feeding pump into the outer flow channel of double coiled pipe , the material from inside with indirect heating for preheat, when materials goes into the high temperature coiled pipe set in the high temperature barrel , due to the steam in the barrel is indirect heated to be a needed sterilization temperature, and insulates in the single pipe out of barrel to kill the materials bacteria, when steam is back to the double coiled pipe, the material flows to the inside flow channel and cooled by the outside material, which makes the outlet material’s temperature decline significantly ( Ordinary lower than 65℃). If it needs to raise or lower the outlet material temperature in the process, you can enable Angle Type Globe Valve, made it get through to hot source (heat steam) or cold source (water or ice water) to go into the outer layer flow channel in the bottom of the double casing.


Throttle valve can be adjusted, in one hand, it raises the material’s boiling point to avoid the vaporization kept under a certain pressure; In the other hand, it is used for regulating the flow, material is final out from the three-way cock. The bottom of spiral plug is connected with the spiral coil, its outlet is with storage tank. When required, operator could rotary the spiral coil direct to the overflow pipe. The top of feeding three-way cock is connected through to the storage tank and bottom is connected through to the material supply pipe.

When you need to increase capacity, please remove the "U"-shaped tube and connect with a centrifugal pump. This machine is a manual control sterilizer and sterilization temperature is adjusted by the Angle Type Globe Valve .The discharge temperature can be changed by the Angle Type Globe Valve. Steam pressure gauge, sterilization temperature table and discharge temperature table are all installed on the host.



Main Technology data:


Treatment Capacity 1000L/H
Sterilizing Temperature 115-135 (℃)
Inlet temperature <65℃
Outlet Temperature <40℃
Heating time 4-6s
Steam Pressure <0.78 Mpa
Steam consumption <0.15kg/L material
Material SUS304
Area (m2) 0.9
Motor Power 1.5kw
Overall Dimensions 1250*900*1650 (mm)
Weight 200 kg
