3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line

3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line

    • 3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line
    • 3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line
    • 3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line
    • 3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line
  • 3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: RCGF18-18-6B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Weight: 5000-7000 Kg Dimension(L*W*H): 2800*2150*2300 Mm
    Filling Pressure: 0.1-0.35Mpa Automatic Grade: Automatic
    Bottle Type: Glass Bottle Condition: New
    Material: SUS304 Filling Precision: ≤+/-1mm(liquid Level)
    Processing Types: Juice Processing Filling Packing Voltage: 380V/220V 50HZ
    Control PLC: Control With Touch Screen Suitable Bottle Size: 0.3-2L Glass Bottle
    Cap Style: Glass Screw Cap Warranty: 1 Year For Spare Parts
    Capacity: 5000-7000BPH

    Product Description


    Glass bottle juice drink filling line RCGF18-18-6B


    Juice Processing System
    1, Juice batching system: sugar pot, batching tank, duplex filter, homogenizer, vacuum degasser, tubular ultra-high temperature sterilizer, heat preservation tank.

    2, The heating method can be steam heating, sugar melting pot, ingredient tank and beverage heat preservation tank can be made into three layers of heat preservation treatment, the outermost layer is heat preservation cotton, the middle layer is steam layer, and the latter layer is material, so the heating speed is fast, the heat loss is small, and the cost can be greatly reduced, so a steam boiler needs to be configured.
    3 In 1 Glass Bottle / Bottled Hot Drink Beverage Tea Juice Filling Machine / Equipment / Plant / Unit / System / Line
    UHT(sterilizer)
    1, UHT sterilizer is used for heating, sterilization, heat preservation and cooling of juice drinks. This equipment is the ideal equipment for prolonging the retention period of materials through sterilization and cooling.
    2, With a variety of safety protection measures and high temperature alarm, low temperature reflux function. Materials and heating medium are heated by non-contact heat exchange in their respective sealing systems to ensure the health and safety of materials.
    3, PLC control can be used to automatically control the heating temperature, hot water temperature and steam flow regulation of each section of the material.
    4, The temperature can reach 115-135℃, and the temperature can be reduced to 85-90℃ after cooling.

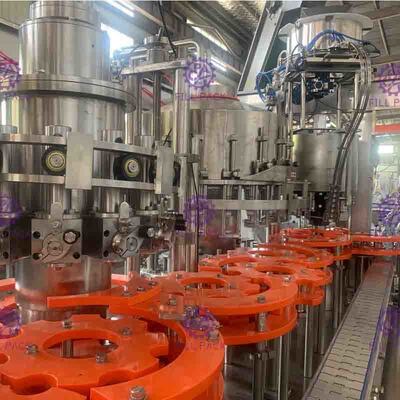

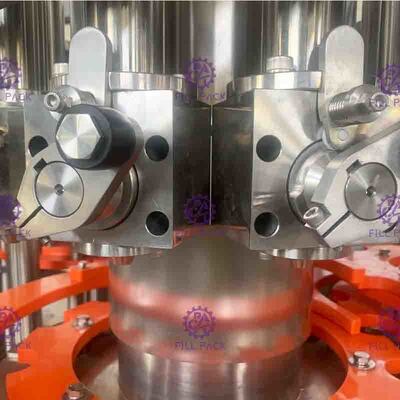

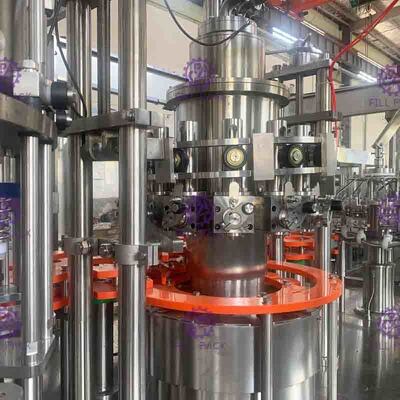

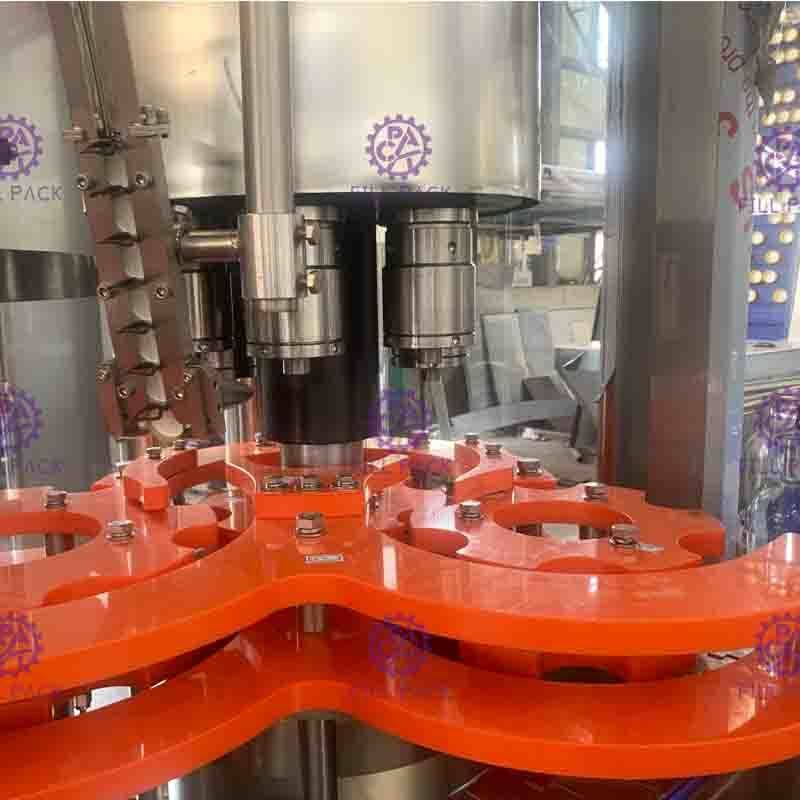

    Washing, Filling, Capping 3-in-1 Machine For Filling Juice
    Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles to 250000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.

    Washing Filling Capping 3-in-1 in the Juice/Tea Hot filling line
    Model RCGF12-12-4B RCGF18-18-6B RCGF24-24-8B RCGF32-32-12B RCGF40-40-12B
    Capacity 4000BPH 5000-7000BPH 8000-12000BPH 12000-15000BPH 15000-20000BPH
    Bottle shape (Bottle Diameter):50-110mm (Height):160-320mm
    PET bottle PET screw
    Filling precision ≤+/-1%
    Filling pressure 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa
    Rinsing pressure 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa
    Power 4.4Kw 4.4Kw 5.2Kw 6.2Kw 7.8Kw
    Size(mm) 2100*1750*2200 2800*2150*2300 3100*2450*2300 3800*2800*2500 4100*3000*2500
    Weight(Kg) 3500 5000-7000 8000-12000 12000-15000 15000-20000

    If you need plastic bottle juice filling line, please check them on our website or contact the sales consultant directly.
    Other machines in the line

     1, Water treatment system
    2, Vacuum degasser
    ★ The vacuum degasser is used to degass the homogenized fruit juice in the vacuum state, so as to prevent the oxidation of fruit juice and prolong the storage period of fruit juice.
    3, Homogenizer
    ★ Homogenizer is mainly used for mixing, grinding and refining juice drinks to avoid layering and improve the taste.
    ★ The shelf life is also improved, 3-5 times longer than the original. The products are of good quality.
    ★ The wearing parts of the machine are durable, with stable and reliable quality, high cost performance and low maintenance cost.
    4, Labeling machine with code printer
    ★ Our company have all kinds of OPP Hot Glue Labeling Machine, Shrink Sleeve Labeling Machine, Cold Glue labeling machine and adhesive labeling machine.
    5, Film shrinking packing machine
    ★ The film shrink packing is used to pack scattered bottles into a whole group.We have Manual wrapping Shrink Packing Machine, Semi-Automatic PE Film Heat Shrink Packing Machine, L Type Automatic PE Film Heat Shrink Wrapping Machine,Linear type High Speed Automatic Shrink Packing and Color film orientation shrink packing machine.
