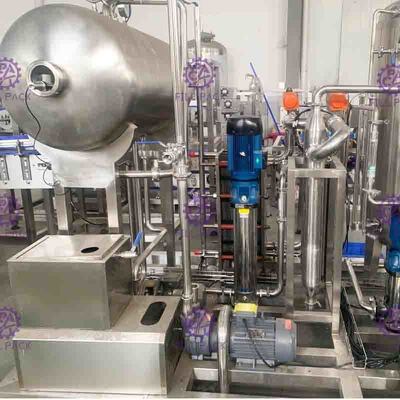

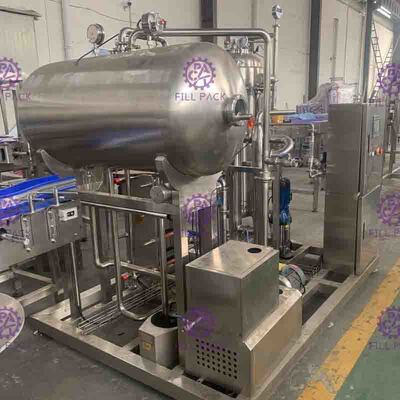

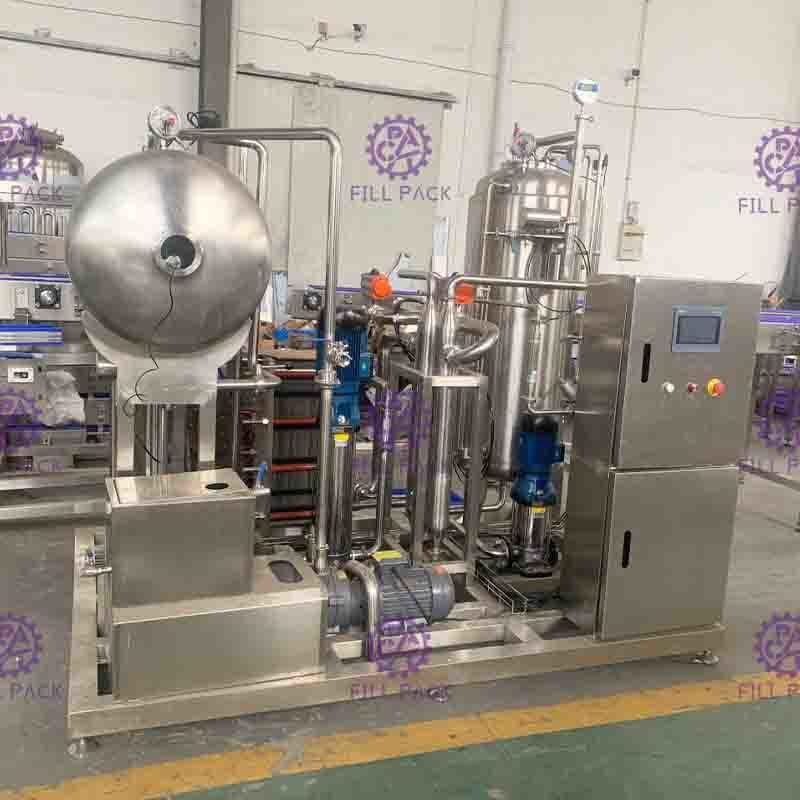

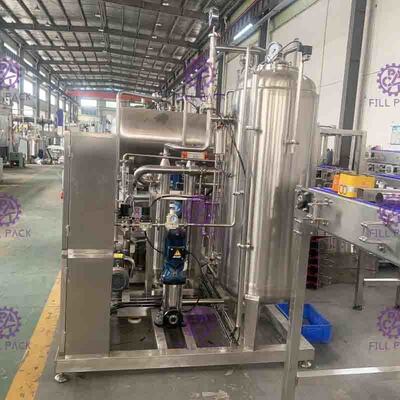

1000L/H SUS304 Vacuum Deaerator for Juice Processing Equipment
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | TQ-1 |
| Application: | Juice or beverage line |
|---|---|
| Packaging Type: | SUS304 |
| Driven type: | Electric |
| Certification: | CE, ISO |
| Guarantee time: | 1 year |
| Condition: | New |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case as machine need |
| Delivery Time: | 7-10 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 100 sets/month |
|
Detail Information |
|||
| Application: | Used To Fresh Fruit Vacuum Degassing Treatment Line For Juice | Capacity: | 1000L/H |
|---|---|---|---|
| Material: | SUS304 | Main Containing Parts: | Degassing Tank, Frame, Screw Pump, Motor, Small Storage Tank |
| Power: | 4KW | Dimension: | 1200*600*1800mm |
| Highlight: | beverage production line,juice making equipment |
||
Product Description
1000L/H Vacuum Deaerator Juice Processing Equipment With SUS304 Vacuum Degassing Machine
Quick Detail:
1. Capacity: 1000L/H
2. Material: SUS304
3. Application: used to fresh fruit vacuum degassing treatment line for juice
4. Main containing parts: Degassing tank, frame, screw pump, motor, small storage tank
Description:
Vacuum Deaerator is usually used for degassing for juice and milk product, reducing air oxygen in liquid, inhibiting color darken, reducing oxidation of coloring matter, Vitamin and flavor to low down quality. Reduce suspending mini air granules, stop air granules to suspend and keep good appearance; Prevent bubbles in sterilizing and filling.
Using
Connect liquid tank to raw material inlet, the liquid will be sprayed into vacuum tank, during spray process, the vacuum pump will take away air and oxygen from liquid, then vacuumed liquid will be taken out by outlet pump;
Characteristics
- The whole machine is used SUS304
- Fine acid, alkali and corrosion resistance.
- The Deaerator with simple structure, easy operation and maintenance.
- The Deaerator is integrated structure.
- Easily connected to the filling line.
- The outlet pump is set as your choice.
Main technology data
- Capacity: 1000 kg/h
- Material: SUS304
- Working vacuum: 0.03-0.09Mpa
- Power: 4KW
- Dimension: 1200*600*1800mm
- Weight: 350kg
