Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | FP-6000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 35-40 days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Bottle Volume: | 250-2000ml | Output: | 5500-6000BPH |
|---|---|---|---|
| Cavitiy: | 6 Cavities | Dimension: | 2650mm X 2050mm X 2200mm |
| Condition: | New | Application: | PET Bottle |
| Automatic: | Yes | Blow Moulding Type: | Stretch Blow Moulding |
| Voltage: | 380V/220V 3 Phase 50HZ / 60HZ / Customized | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| High Light: | Bottle Injection Machine,Bottle Making Machine |
||
Product Description
Automatic 6 Cavity PET bottle blow molding machine suit
>>> Product Introduction:

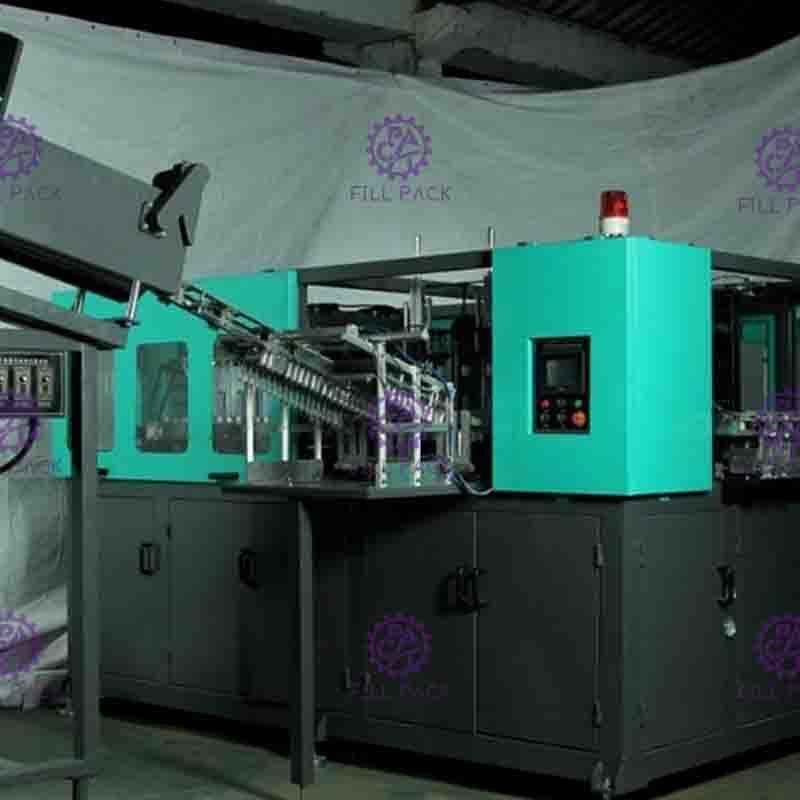

FP-6000 Full automatic blow molding machine is suitable for producing PET/plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
>>> Product Features:
1). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
2). Introduce the FESTO air cylinder to avoid contamination and noise.
3). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
4). Strong clamping force with high pressure and double crank links to lock the mould.
5). Two ways of operating: automatic and manual.
6). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
>>> Technical Paramters:
|
Componets:
|
||
|
Part
|
Brand
|
Origin
|
|
Pneumatic components
|
AIRTAC
|
Taiwan
|
|
Turning cylinder
|
FESTO
|
German
|
|
High pressure air blowing valve
|
PARK
|
USA
|
|
Low pressure operation valve
|
PMC
|
Korea
|
|
PLC
|
DELTA
|
Taiwan
|
|
Touch screen
|
DELTA
|
Taiwan
|
|
High pressure muffler
|
SMC
|
Japan
|
|
Oily water separator
|
AIRTAC
|
Taiwan
|
|
Photoelectric switch
|
AUTONICS
|
Korea
|
|
Switching power
|
WM
|
Taiwan
|
|
Air switch
|
TAIAN
|
Taiwan
|
|
Relay
|
IDEC
|
Japan
|
|
Finger cylinder
|
MINDMAN
|
Taiwan
|
|
Note
|
All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
|
|
|
Main parameter:
|
||
|
Model
|
FP-6000
|
|
|
Productivity
|
Depend on bottle design
|
5000-5500 PCS/H
|
|
Product type
|
Body diameter
|
20mm-100mm
|
|
Height
|
50mm-350mm
|
|
|
Neck diameter
|
15mm-38mm
|
|
|
Mold
|
Cavity
|
6 cavities
|
|
Mold thick
|
200mm
|
|
|
Mold
|
800*800mm
|
|
|
Main machine power
|
Electrical source power
|
380v 3Phase /220v 3Phase
50/60HZ |
|
Rated Power
|
40kw
|
|
|
Really use power
|
20kw
|
|
|
Cooling water
|
Cooling water
|
20L/min
|
|
Size
|
L*W*H
|
2808*1958*1920mm
|
|
Weight
|
4500kg
|
|
|
Auxiliary equipment(preform unscrambler)
|
L*W*H
|
2000*950*2480mm
|
|
Weight
|
250kg
|
|
|
Resin available
|
|
PET
|
