|Place of Origin:||ZhangJiaGang,JiangSu,China|
|Brand Name:||FILL PACK|
|Minimum Order Quantity:||1Set/pcs|
|Packaging Details:||the Bottle Blowing Machine Factory is packed by wooden case.|
|Delivery Time:||within 30 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||5Set/Sets per month|
|Plastic Processed:||PET||Blow Moulding Type:||Stretch Blow Moulding|
|Automatic:||Yes||Voltage:||380v 3Phase /220v 3Phase 50/60HZ|
|Power(W):||24kw||Dimension(L*W*H):||195cmx 185cmx 220cm|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Cavity:||2 Cavity|
|Output:||2000pcs/h||Max. Bottle Volume:||2L|
|Contain:||Water, CSD, Juice, Tea, Alcohol Drinks, Oils, Cosmetics,etc.||PLC:||MITSUBISHI/JAPAN|
2 Cavity 1.5l Full Automatic Pet Bottle Manufacturing Machine To Produce Carbonated Beverage Bottle
FP-2000 is the fastest liner blow molding machine in mainland of China by now. FP-2000 reaches around 2000BPH for 1.5 L bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
FP-2000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. FP-2000 consists of three main parts: preform loading system, Heater channel & blow station.
1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .

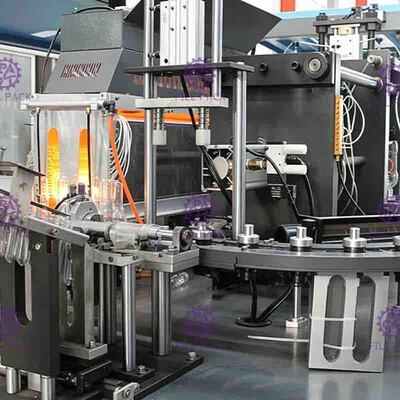

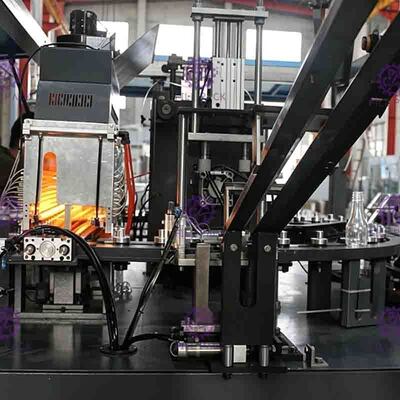

2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater
3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
5. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
6. Air route design is divide into two parts ,
7. Ideal effect of the chilling with the chilling system
8. Low rejection rate: less than 0.3percent
|Applicable bottle body diameter||20-92mm|
|Applicable bottle height||50-350mm|
|Moulding||Max.mould plate Dimenstion (LxW)||450x490mm|
|Machine size and weight||Main machine (L×W×H)||2500*1650*1850mm|
|Main machine weight||3200Kg|
|Preform unscrambler (LxWxH)||2000*950*2480mm|
|Install Power-Using power||18kw
After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed
We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.
The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.
