4 Cavity Bottle Blowing Machine

4 Cavity Bottle Blowing Machine

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: Fillpack
Certification: CE. ISO9001
Model Number: CM-A4
Condition: New
Application: PET bottle
Automatic: Yes
Blow moulding type: Stretch blow moulding
Voltage: 380V 3 phase 50HZ / 60HZ / Customized
Warranty: 1 year
After-sales service provided: Engineers available to service machinery overseas
Bottle volume: 100ml-2L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 35-40 days after deposit receipt
Payment Terms: TT / LC /
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

High Light:

Bottle Injection Machine

,

Blow Mold Machine

Product Description

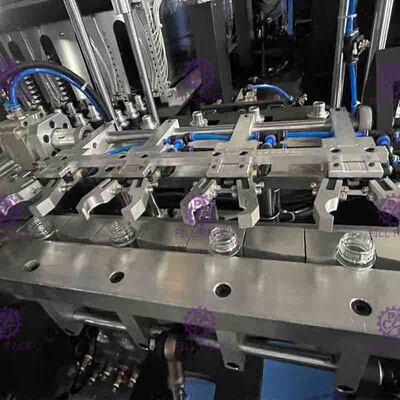

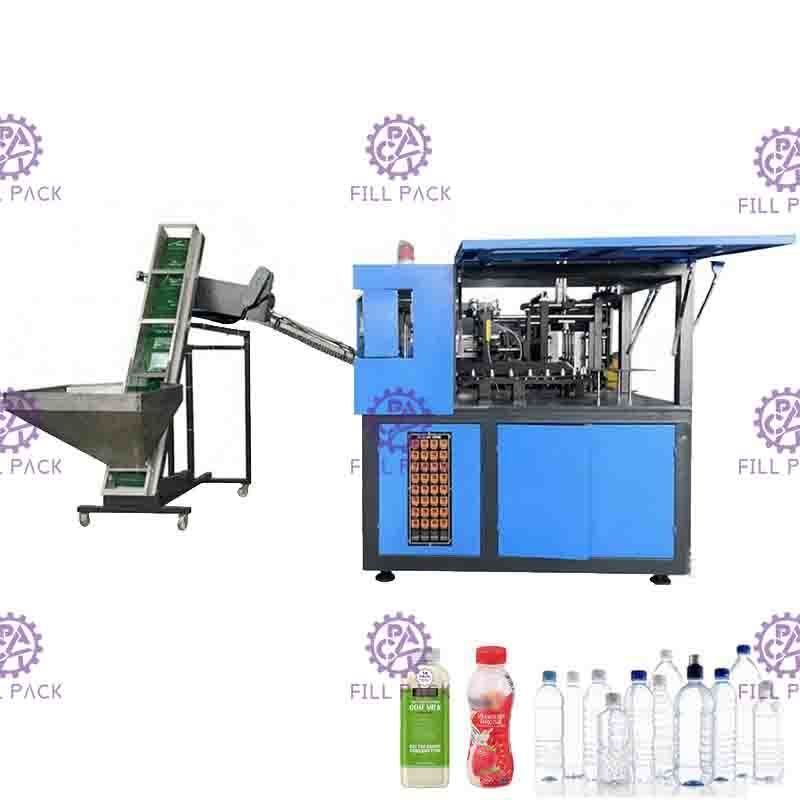

4 Cavity Bottle Blowing Machine With Automatic Mode


Quick Detail:

1, Machine structure: Preform heating blowing in one machine
2, Automation: TOTALLY automatic
3, Bottle output: 4 pcs for one mould
4, Capacity: 4000BPH
5, Bottle type: PET bottles
6, Auxiliary machine needed: YES


Description:

What is the mean by " 4 Cavity " ?
It means there are 4 pcs of bottles out for one mould.

 And the 4 cavity bottle blowing machine is used to blow PET bottles from 100ml to 2L including mineral bottles, edible oil bottles, carbonated water bottles, and juice bottles and etc. The shape of the PET bottles can be various according to client. We can help to sculpt the bottles and confirm with client before making bottle moulds.


Applications and features:

- Widely applied in food, drink, dairy, cosmetic, medical, chemical industrial and etc;
- PLC control, electric parts are well known brand;
- Develop different bottles for explore more market;
- Easy operation and maintenance;
- Compact structure for the preform heating, blowing, and bottle forming are realized in one machine;
- All the movements of bottle blowing machine are driven by the air cylinder, no need the hydraulic oil and even no pollution.
- Auxiliary machines are needed during blowing including LP (Low pressure) air compressor, HP (High pressure) air compressor, air dryer, air filters, air tank, and mould chiller.


Connection diagram:

4 Cavity Bottle Blowing Machine 0


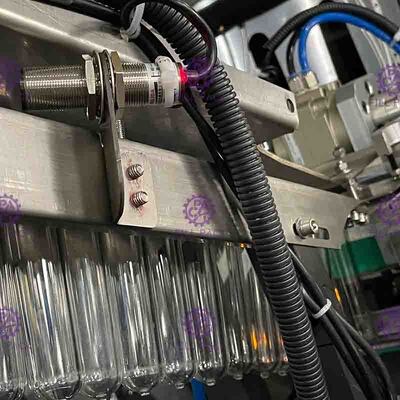

Electric parts:

4 Cavity Bottle Blowing Machine 1

Specifications:


Main part:
Pneumatic part Valve SMC
Cylinder
Electric part PLC LG
Operating system LG
Relay OMRON
Infrared thermometer America raytek
Note All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
Main parameter:
Model CM-A4
Productivity Depend on bottle design 3200-4000PCS/H
Product type Body diameter 20mm-100mm
Height 50mm-350mm
Neck diameter 15mm-38mm
Mold Cavity 4cavities
Mold thick 240mm
Mold 500*500mm
Main machine power Electrical source power 380v 3Phase /220v 3Phase 50/60HZ
Rated Power 49kw
Really use power 14kw
Air source LP air compressor 1.6m3/min 1.0MPa 1set (15KW)
HP air compressor 1.0m3/min 3.0MPa 2sets (each set 11KW)
Air dryer 2.0m3/min 3.0MPa 1set
Cooling water Cooling water 15L/min
Size L*W*H 1900*1860*1930mm
Weight 3600kg
Auxiliary equipment(preform unscrambler) L*W*H 2000*950*2480mm
Weight 250kg
Resin available   PET


Competitive Advantage:


- Stable performance with advanced PLC.
- Automatic preform conveyer to save human cost.
- Introduce the FESTO air cylinder to avoid contamination and noise.
- Strong clamping force with high pressure and double crank links to lock the mould.
- Two ways of operating: automatic and manual.
- Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
- Easy for you to install,test and start up.

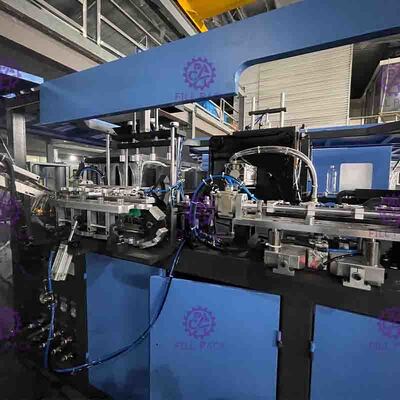

4 Cavity Bottle Blowing Machine 2


4 Cavity Bottle Blowing Machine 3
